4.3.7 Editing Loop Cycle (PROGRAM Mode only)
Use the , soft keys to navigate to the Loop Cycle parameter (only selectable

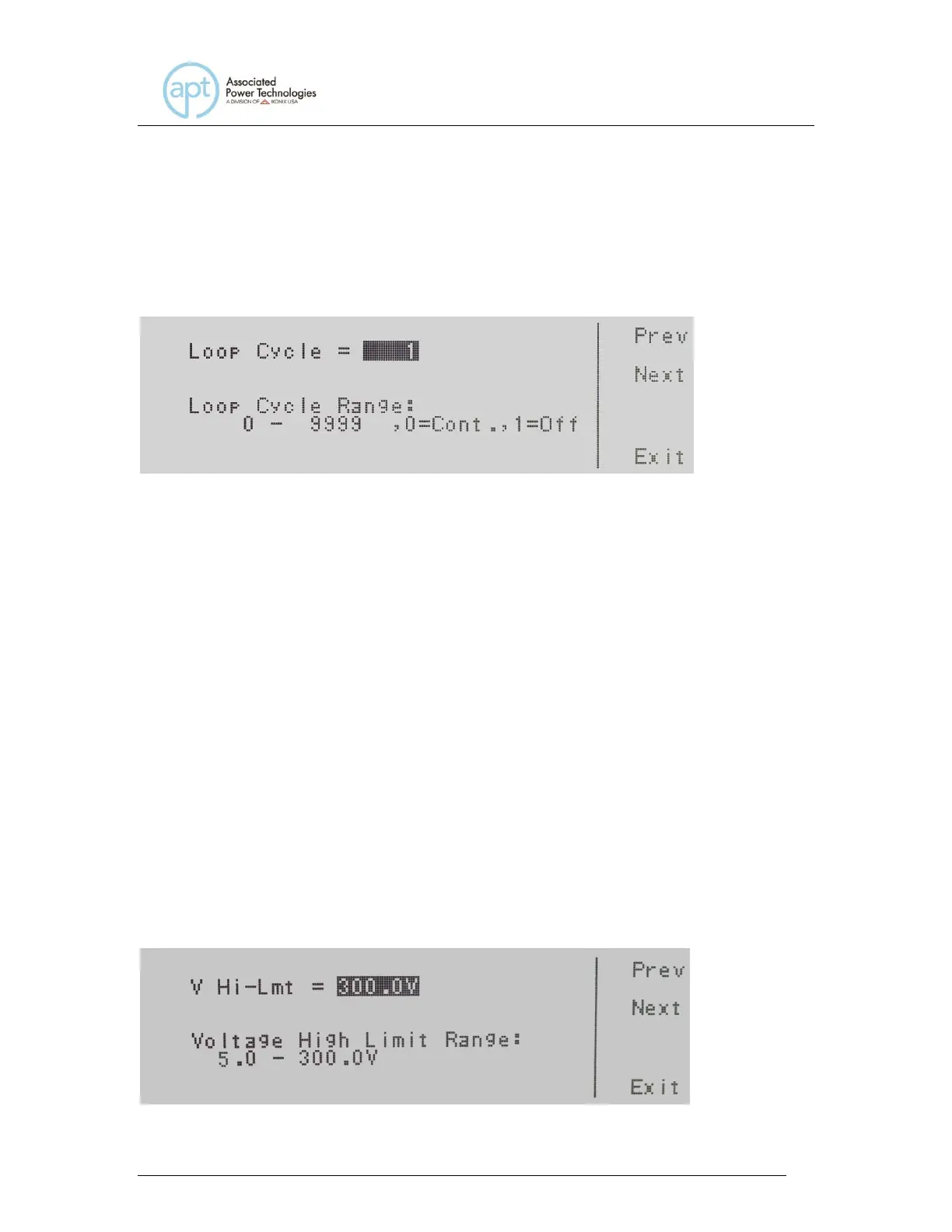

for AC output). Pressing the Edit soft key will provide the following screen:
Loop Cycle = indicates the number of loop cycles that will be performed when the
output is active.
Loop Cycle Range: = indicates the selections available for the Loop Cycle Range.
The options available are 0 – 9999, 0=Cont., 1=Off. The 0 – 9999 selection
programs the instrument to repeat the test cycle x number of times. The 0=Cont.
selection indicates that the test loop will repeat in ∞. The 1=Off selection
indicates that the test loop will perform only one cycle. Use the numeric keypad
to enter in the Loop Cycle Range. Press the Enter soft key to accept the
parameter. To cancel the editing of Loop Cycle Range, press the Esc soft key.
To move to the next system parameter for editing, press the Next or Prev soft key.
The Exit soft key is also available to return to the System parameter screen.
When the Enter soft key is pressed the Loop Cycle Mode is accepted and you
transition into the next system parameter.
4.3.8 Editing V Hi-Lmt & V Lo-Lmt (MANUAL Mode only)
Use the , soft keys to navigate to the V Hi-Lmt or V Lo-Lmt parameter.
Pressing the Edit soft key will provide one of the following screens:
