4.6.24 Editing Q Hi-Lmt & Q Lo-Lmt (PROGRAM Mode only)

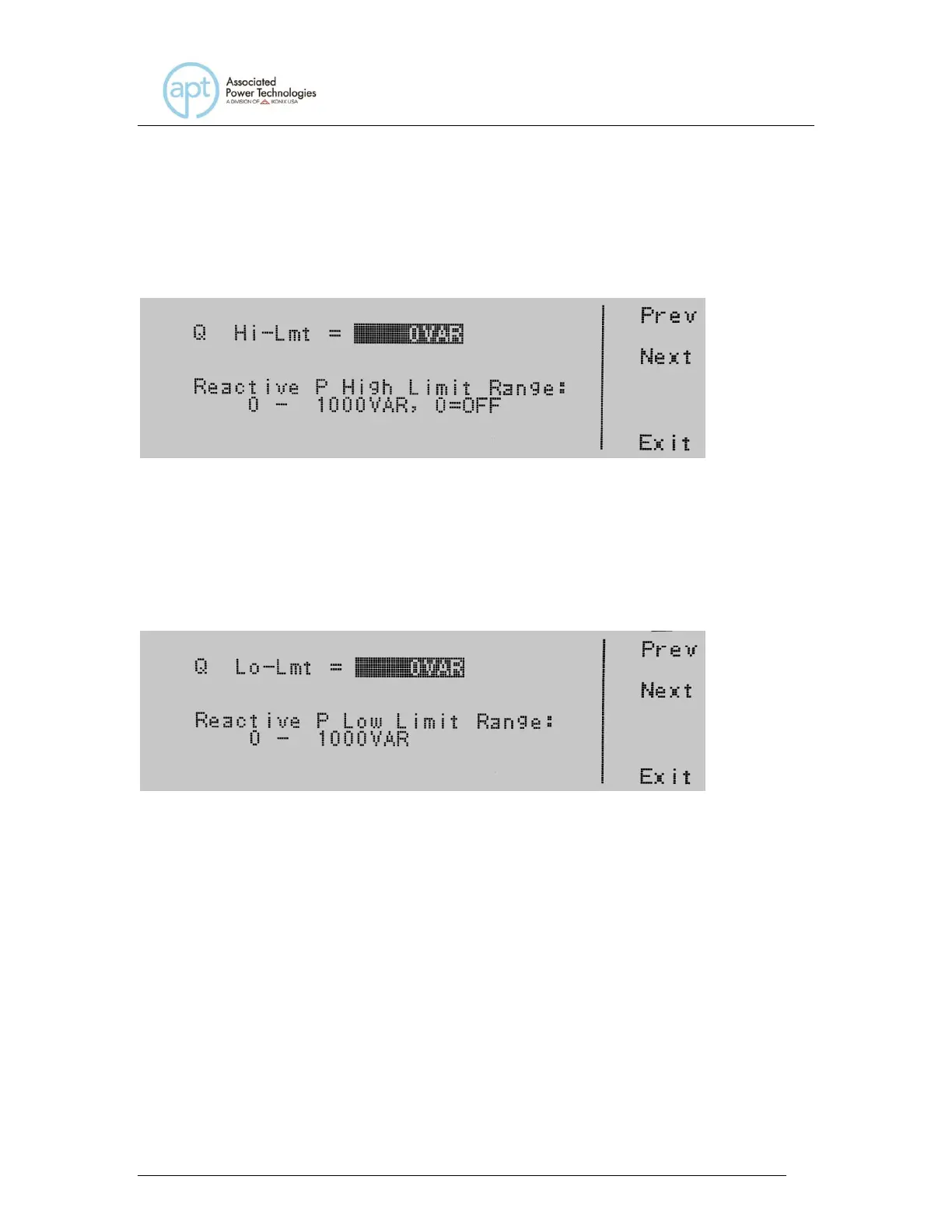

Use the , soft keys to navigate to the Q Hi-Lmt or Q Lo-Lmt parameter (only
selectable for AC output). Pressing the Edit soft key will provide one of the
following screens:
Q Hi-Lmt = indicates the reactive power high limit that is programmed into the
instrument.
Reactive Power High Limit Range: indicates the reactive power range that can be
programmed into the instrument. If you select the 0=OFF reactive power high
limit range is turned OFF.
Q Lo-Lmt = indicates the reactive power low limit that is programmed into the
instrument.
Reactive Power Low Limit Range: indicates the reactive power range that can be
programmed into the instrument.
To change the Reactive Power High Limit or Low Limit use the numeric keypad
and type the peak current value. Once you type in a number a shaded black box
(■) will begin blinking acknowledging the parameter is being changed. Press the
Enter soft key to accept the parameter, or press the Esc key to move back to the
Reactive Power Parameter screen. When the Enter soft key is pressed the peak
current is accepted and you transition into the next parameter: Prompt.
If you wish to bypass editing this parameter and move to the next parameter you
To Next Page
