143
11.4.4 Ethernet Card Menu

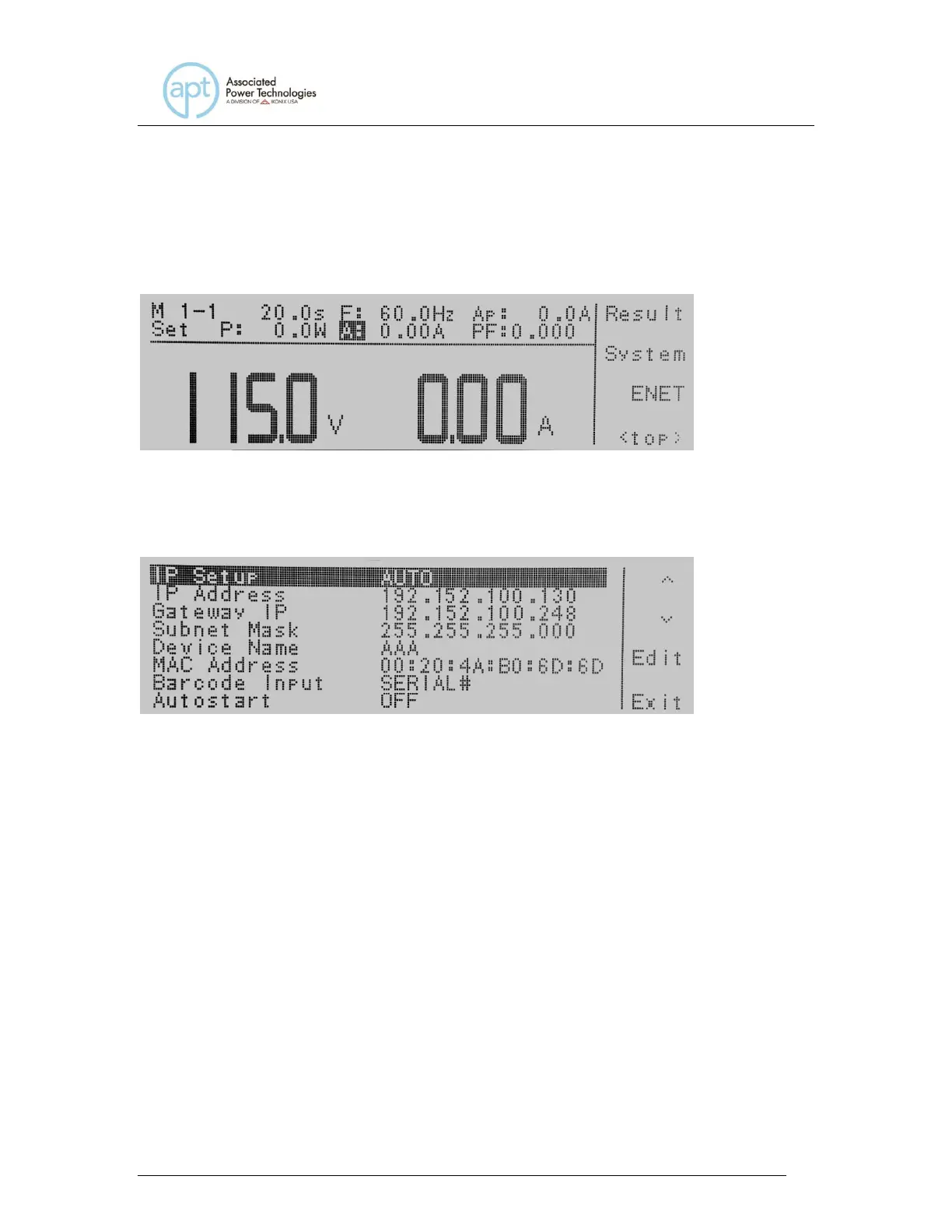

When the Ethernet Card option is installed, the ENET soft key will appear in the
Perform Tests screen as shown below:
To access the Ethernet Card Menu, press the <more> soft key at the Perform
Tests screen. Press the ENET soft key to display the Ethernet Card Parameters
screen:
11.4.5 IP Setup
Highlight the IP Setup parameter using the , soft keys. When the IP Setup
parameter is highlighted, press the Edit soft key.
IP Setup is used to determine how the APT 300XAC will request an IP address
from the server to which it is connected. When AUTO is selected, the APT
300XAC will attempt to automatically request an IP Address from the server upon
power up. To resolve the IP Address automatically, the APT 300XAC will use
DHCP or BOOTP protocols. When MANUAL is selected, the APT 300XAC will
request a specific IP Address from the server. The IP Address that will be
requested must be entered in the subsequent IP Address parameter field.
Use the Change soft key to select how you would like the APT 300XAC to
resolve an IP address. Press the Enter soft key to accept the new setting or the
Exit soft key to cancel and return to the original setting.
