3.2 Instrument Controls

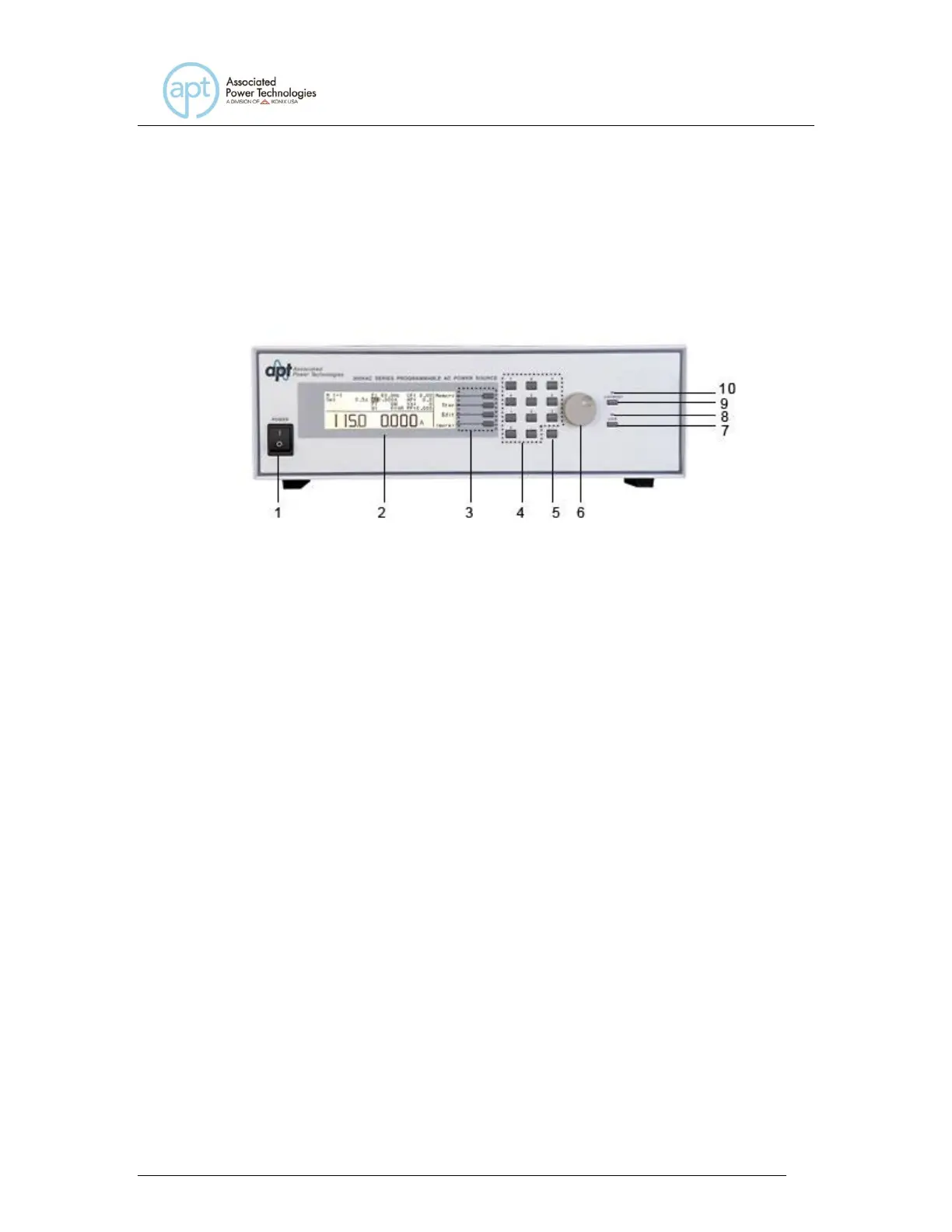

3.2.1 Front Panel Controls
1. Power Switch: Rocker style power switch with international ON ( | ) and
OFF (0). Please refer to pg. 10 for proper installation of a disconnecting
device.
2. Graphic LCD: 240 x 64 Monographic LCD.
3. Soft Keys: Multifunctional selection keys used to select parameters,
select screens, and edit parameters.
4. Number Keypad: Keys used to enter numerical data.
5. Delete Key: Used to delete text characters and numerical data.
6. Rotary Knob: Used to adjust the voltage output in MANUAL Mode, or DC
Mode.
7. Lock Key: Used to lock out the front panel.
8. Lock LED: When lit indicates the instrument front panel is locked.
9. Test/Reset Key: Used to turn ON/OFF output voltage, or used to reset
the instrument in the event of a failure condition.
10. Test/Reset LED: When lit indicates output is active, or when blinking
indicates the instrument is in a failure condition.
