V Hi-Lmt = indicates the voltage high limit that is programmed into the instrument.
Voltage High Limit Range: indicates the voltage range that can be programmed
into the instrument.

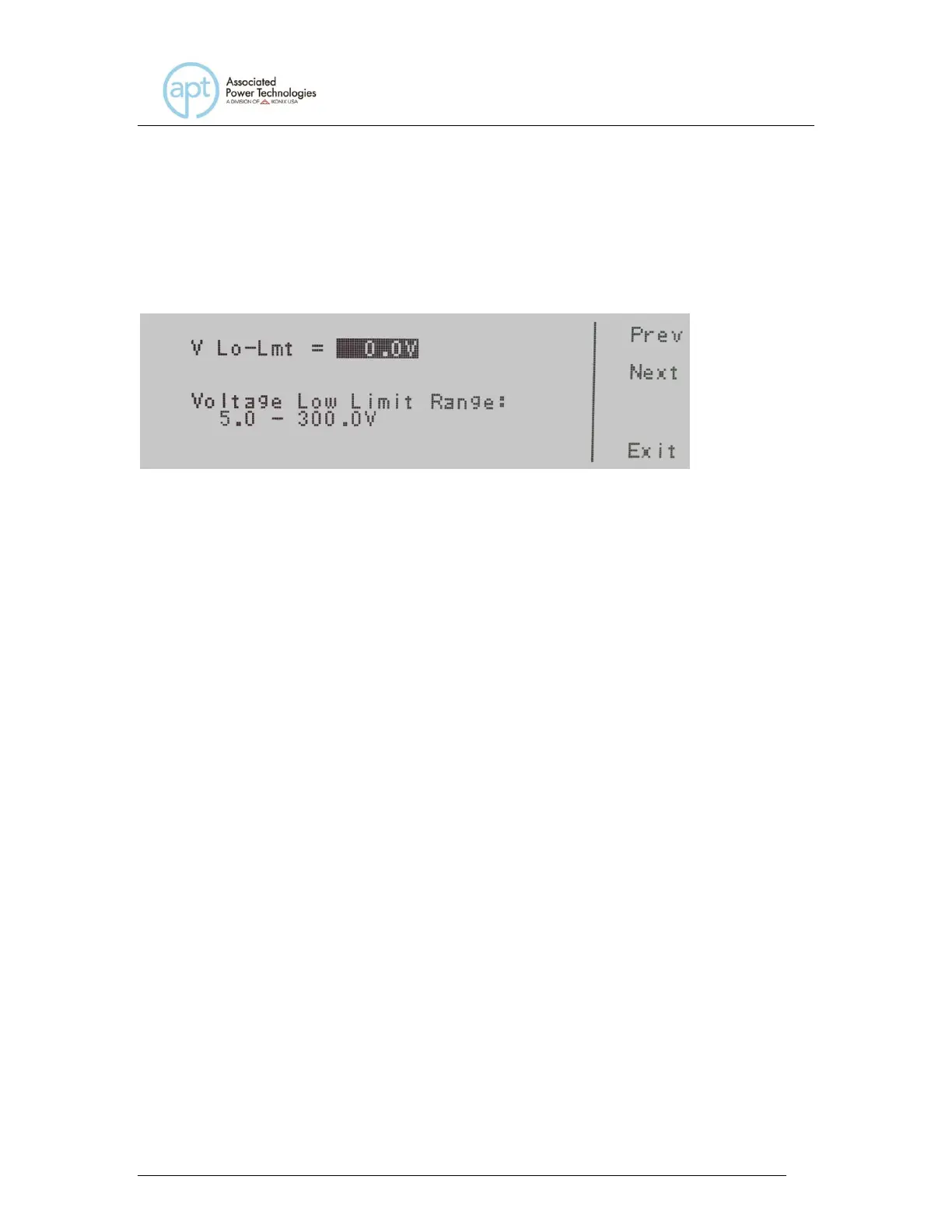

V L-Lmt = indicates the voltage low limit that is programmed into the instrument.
Voltage Low Limit Range: indicates the voltage range that can be programmed
into the instrument.
To change the voltage high limit or low limit use the numeric keypad and type the
voltage value. Once you type in a number a shaded black box (■) will begin
blinking acknowledging the parameter is being changed. Press the Enter soft
key to accept the parameter, or press the Esc key to move back to the V Hi-Lmt
or V Lo-Lmt parameter screen. When the Enter soft key is pressed the voltage is
accepted and you transition into the next system parameter: Frequency Limit.
If you wish to bypass editing this parameter and move to the next parameter you
can press the Prev or Next soft key.
4.3.9 Editing F Hi-Lmt & F Lo-Lmt (MANUAL Mode only)
Use the , soft keys to navigate to the F Hi-Lmt or F Lo-Lmt parameter (only
selectable for AC output). Pressing the Edit soft key will provide one of the
following screens:
F Hi-Lmt = indicates the frequency high limit that is programmed into the
instrument.
Frequency High Limit Range: indicates the frequency range that can be
programmed into the instrument.
