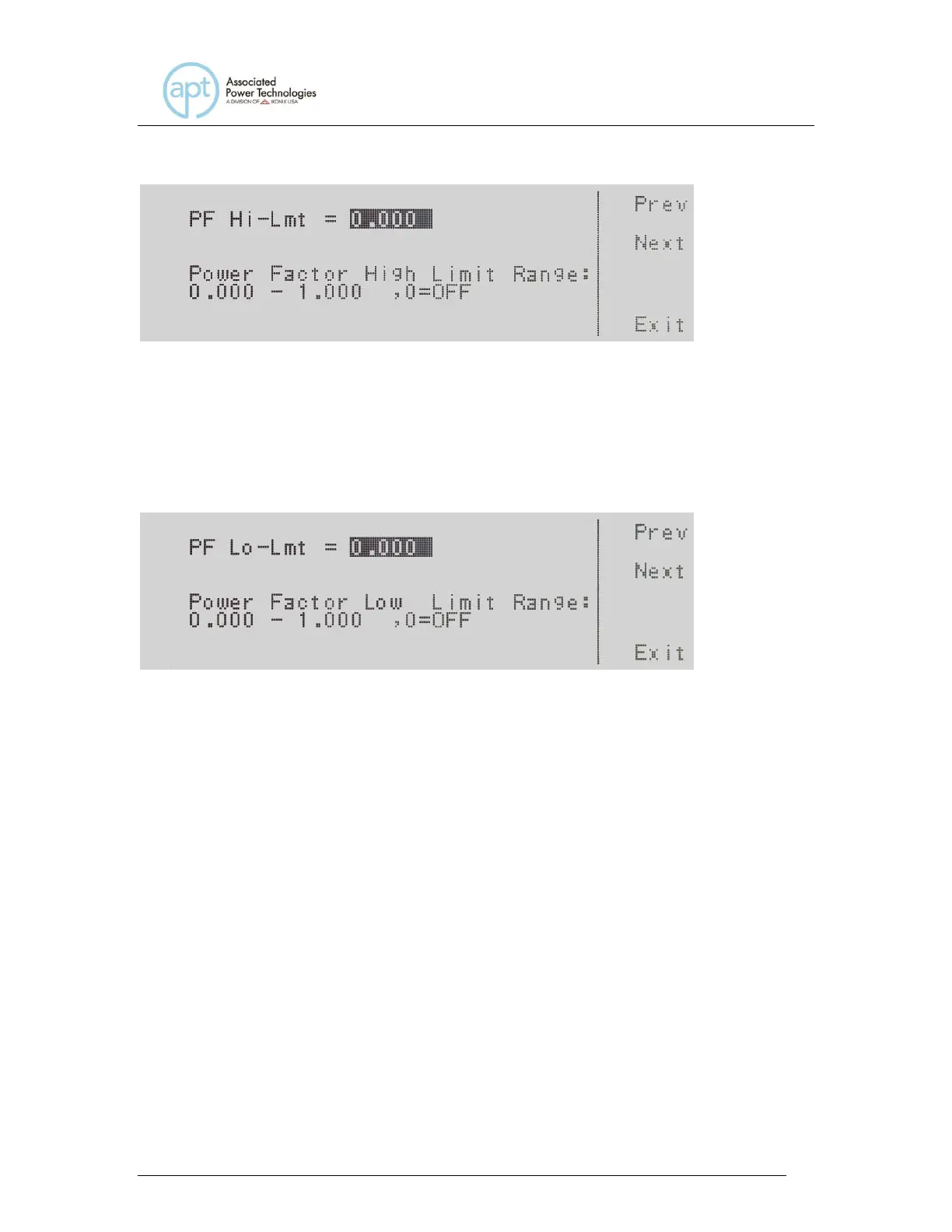

PF Hi-Lmt = indicates the power factor high limit that is programmed into the
instrument.
Power Factor High Limit Range: indicates the power factor range that can be
programmed into the instrument. If you select the 0=OFF a high limit power
factor range is turned OFF.
PF Lo-Lmt = indicates the power factor low limit that is programmed into the
instrument.
Power Factor Low Limit Range: indicates the power factor range that can be
programmed into the instrument.
To change the Power Factor High Limit or Low Limit use the numeric keypad and
type the power factor value. Once you type in a number a shaded black box (■)
will begin blinking acknowledging the parameter is being changed. Press the
Enter soft key to accept the parameter, or press the Esc key to move back to the
Power Factor Parameter screen. When the Enter soft key is pressed the power
factor is accepted and you transition into the next parameter: VA Hi-Lmt.
If you wish to bypass editing this parameter and move to the next parameter you
can press the Prev or Next soft key.
4.6.23 Editing VA Hi-Lmt & VA Lo-Lmt (PROGRAM Mode only)
Use the , soft keys to navigate to the VA Hi-Lmt or VA Lo-Lmt parameter (only
