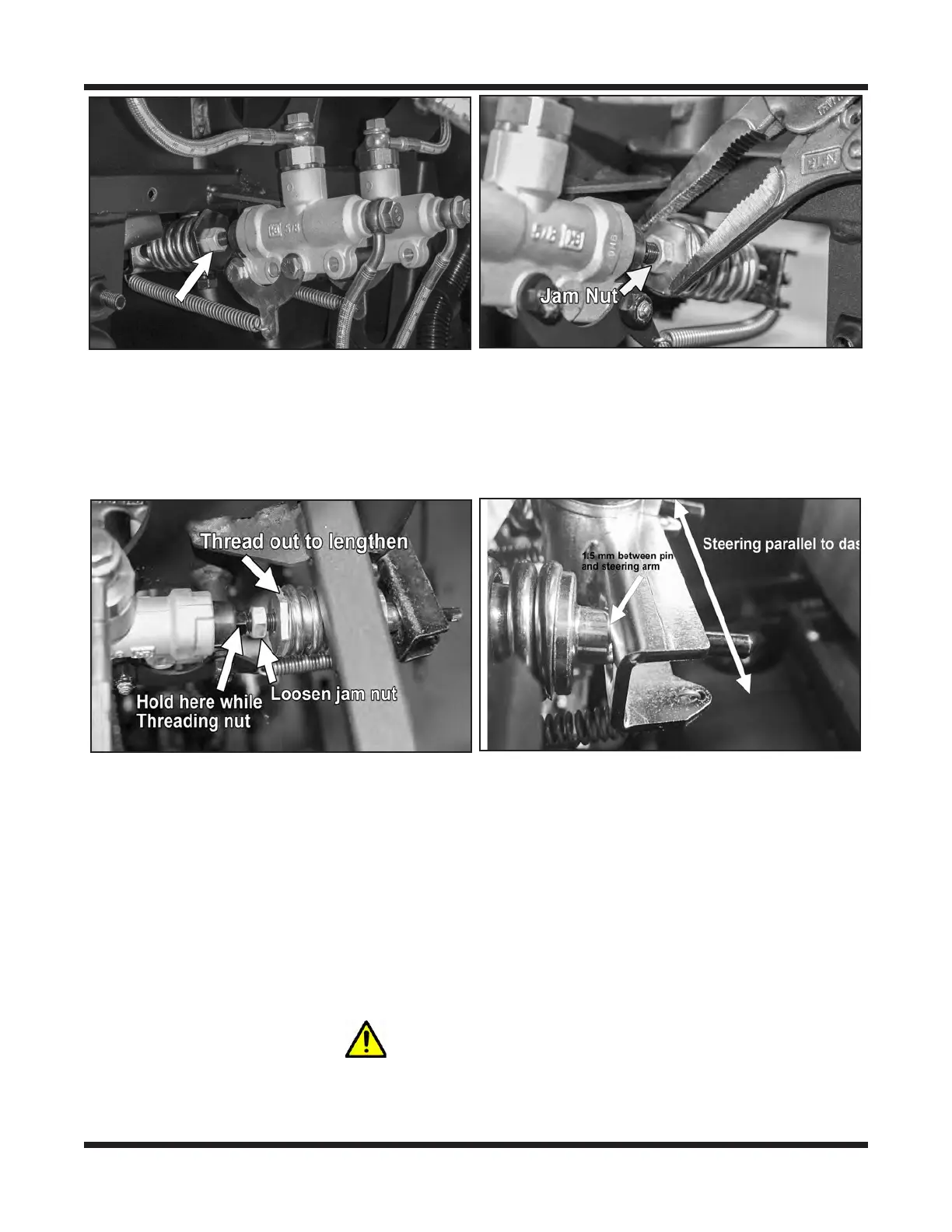

3. While holding the small nut on the plunger piston, thread the larger nut out to lengthen
the plunger pin, or in to shorten it.
4. Ensuring that the steering bar is parallel with the dash of the vehicle, adjust the plung-
er pin until it comes close to contacting the steering arm. Leave a slight gap of about
1.5mm between pin contact of steering arm.
5. Re-tighten the jam nut.
Hydraulic Brake Hose Maintenance Schedule
Inspect every 25 hrs. of vehicle operation.
1. Inspect the condition of the hydraulic hoses. Replace them if:
• the hoses are cracked or punctured
• brake uid leakage is noted on hose, nearby assemblies, or around hose ttings
2. Perform the servicing procedure, Replacing the Hydraulic Brake Hoses, below
Replacing the Hydraulic Brake Hoses
IMPORTANT
Clean the master cylinder casing and the caliper casting and ttings. This will pre-
vent dirt from contaminating the brake system. Contaminants in the brake uid can
damage components or cause a loss in braking or steering eectiveness.
