Argo All 8X8 - Driver Clutch Reassembly (Itds Clutch System

Clutch System Argo Service Manual
Ontario Drive & Gear Limited www.argoutv.com
PH.(519)- 662-2840 FAX (519)- 662-2421
CS-19

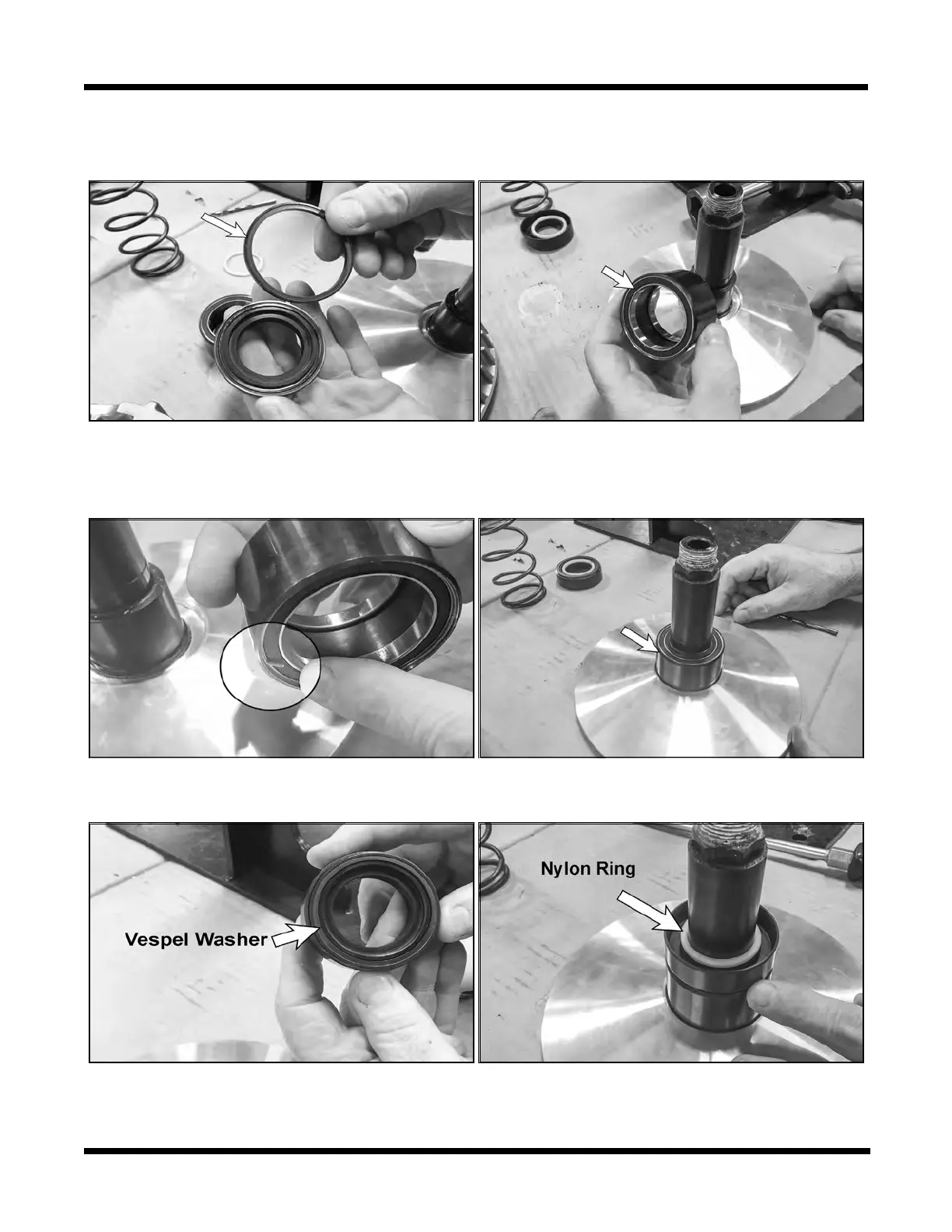

11. Locate 500-0115 Vespel Washer installed to the other side of the 500-0116 Cup, Spring
Drive.
12. Slip 500-0114 Bearing, Drive-Idler from the xed shaft.
Driver Clutch Reassembly (ITDS)
1. Slip the 500-0114 Bearing, Drive-Idler on to the shaft of the xed face. Orient the
bearing with the spring clip facing down.
2. Place the 500-0115 Vespel Washer to the bottom of the 500-0116 Cup, Spring Drive
and slip over the shaft followed by the Nylon Ring.
