EN-9
Engine System Argo Service Manual
Ontario Drive & Gear Limited www.argoutv.com
PH.(519)- 662-2840 FAX (519)- 662-2421
Air Filter (Briggs Big Block 850/950)
Briggs Big Block EFI engines are equipped with a foam pre-cleaner and dry paper air
filter element housed in an air cleaner assembly attached to the throttle body.
Replace or wash pre-cleaner in warm water with detergent. Rinse and allow to air dry.
Saturate pre-cleaner with new engine oil; squeeze out excess oil. Replace the paper
element.
Wash and oil the pre-cleaner after every 25 hours of operation or more often under
extremely dusty or dirty conditions.
Check the paper air filter element every 100 hours of operation or more often under
extremely dusty or dirty conditions.

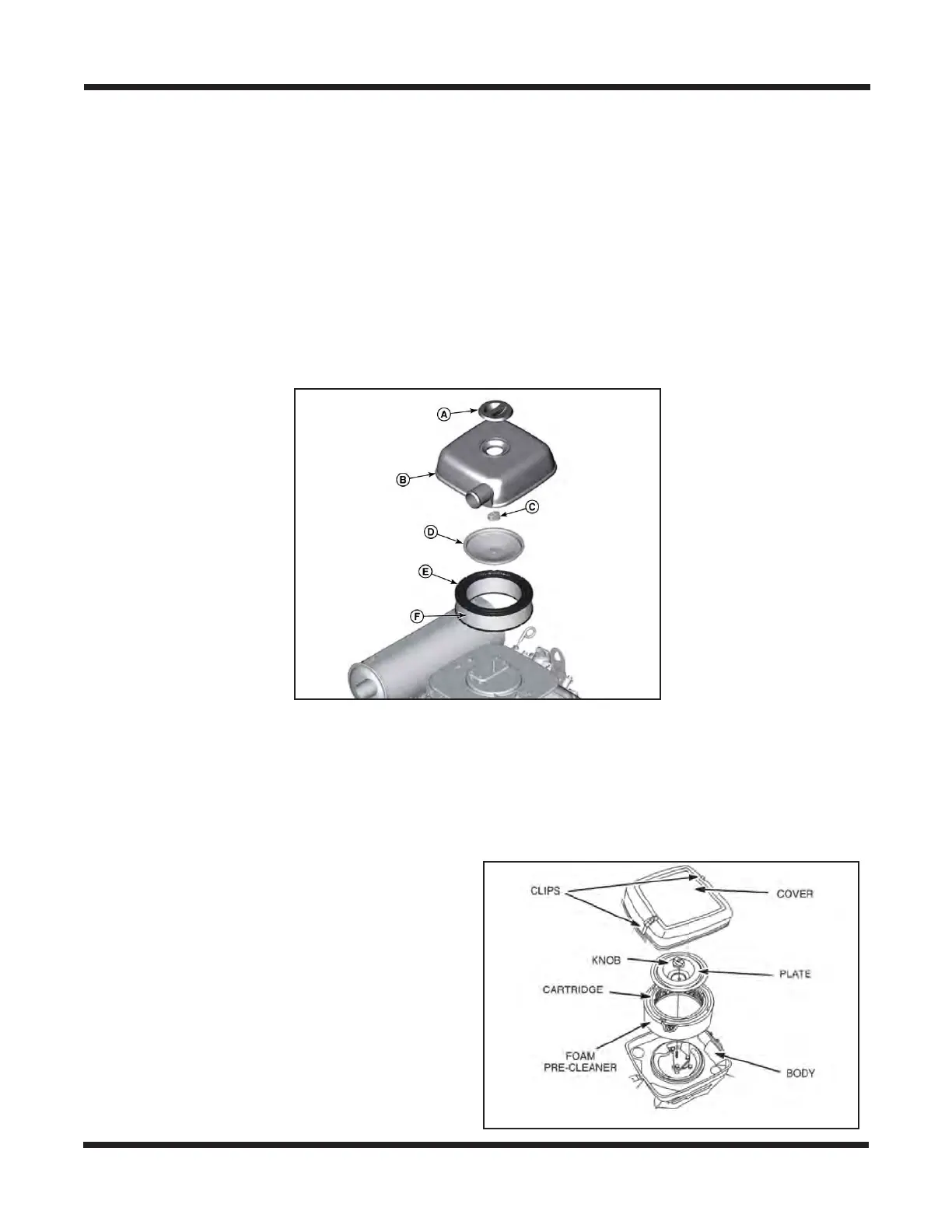

A. Cover Fastener B. Cover C. Air Filter Element Retainer Fastener
D. Air Filter Element Retainer E. Air Filter Element F. Air Filter Foam Pre-Cleaner
Air Filter (Briggs 600/650/700 EFI)
All Briggs and Stratton Vanguard engines are equipped with a foam pre-cleaner and dry paper air
filter element housed in an air cleaner assembly attached to the throttle body/carburettor.
Replace or wash precleaner in warm water with
detergent. Rinse and allow to air dry. Saturate
precleaner with new engine oil; squeeze out
excess oil. Replace the paper element.
Wash and oil the precleaner after every 25 hours
of operation or more often under extremely dusty
or dirty conditions.
Check the paper air filter element every 100 hours
of operation or more often under extremely dusty
or dirty conditions.
