Transmission Argo Service Manual
TR-11

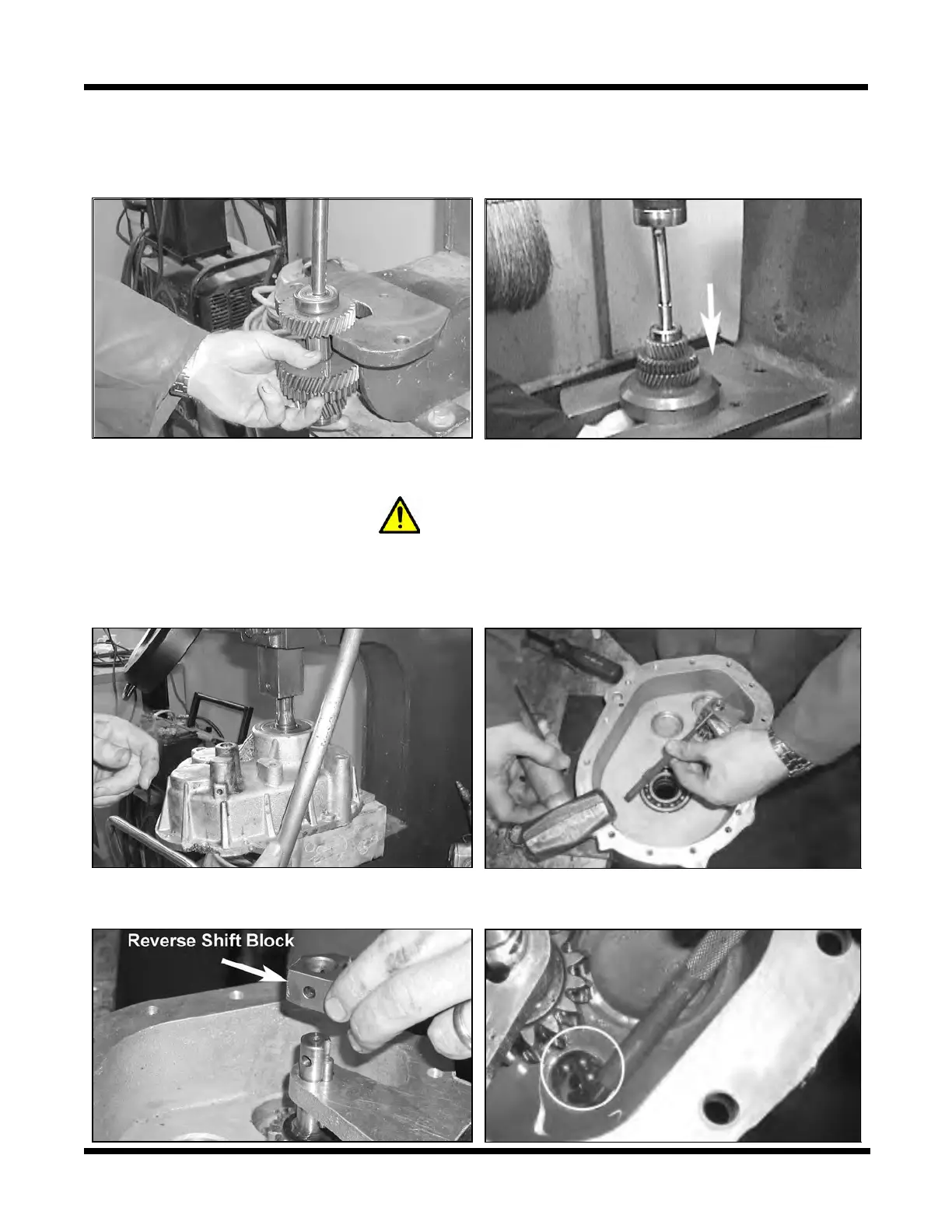

Disassemble the Spline Shaft Drive Gear Assembly
1. Remove the bearing and high gear from the spline shaft at the arbor press.
2. Remove low gear, reverse gear, drive gear and bearing from the spline shaft using the
the arbor press.
Disassembling The Housing Components
1. Press the dierential from the housing at the arbor press.
NOTE
The use of wood blocks beneath the housing prevents damage to the sealing edge of the cast-
ing as well as provides height for removing the dierential.
2. Disassemble reverse shift shaft block by removing the roll pin securing it to the shaft.
3. Remove the 3 steel balls located in the housing, between the hi/lo shift shaft and the
reverse shift shaft.
