3. Drive the Argo at a speed of approximately 20kph. While continuing to apply throttle,
gradually apply the service brake, slowing your speed down to 10kph, then release
the brake and accelerate back to 20kph. Do not bring the Argo to a full stop (unless
required for safety reasons). Bringing the ARGO to a full stop when the brakes are
hot may cause the brake pad to imprint itself on the rotor. If this happens it will
cause vibration and poor brake performance.
4. Repeat step 3 a total of 10 times. Do not wait between cycles to let brakes cool.
CAUTION
Brake components will be extremely hot at this point.
After the 10 cycles are complete, shut down the ARGO and allow the brakes to cool
down. When brakes have cooled, repeat steps 3 and 4. The bedding procedure is now
complete. The brakes may smell, and some smoke could be present.

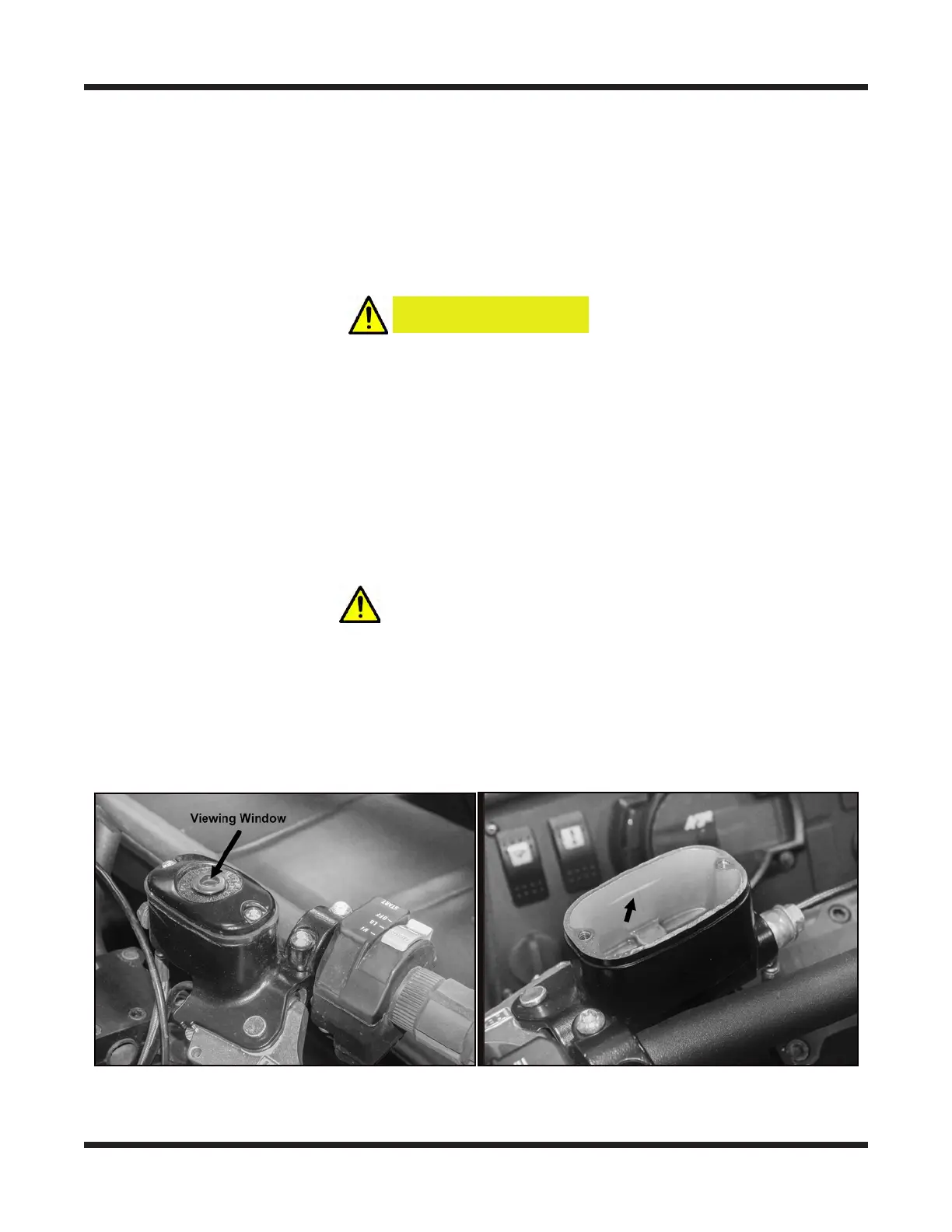

Checking Hydraulic Brake Fluid Level (Handle Bar Master Cylinder)
All models are equipped with a hydraulic hand brake system. The master cylinder is
mounted on the left side steering bar with a uid level viewing window.
Monitor the hand brake uid on a regular basis. If uid level needs replenishing, remove
the cover and ensure the uid is to the “top” level mark.
IMPORTANT
If the cover needs to be removed to replenish or service the system, thoroughly
clean the cover and surrounding area before removing to avoid any contamination
to the brake system. Ensure the master cylinder is level before removing the cover.
This may require loosening the master cylinder's clamp screws and rotating the
master cylinder until it is level to the ground. Torque cover screws 6-8 in-lb (.67-.90
Nm)
Inspect all brake hoses and brake ttings at both hand brake and hydraulic calipers for
any signs of brake uid leaks.
