1. Remove cover and gasket seal from the master cylinder reservoir.
2. Disconnect the hose from the caliper. Place a catch tray under the free end of the
hydraulic hose and allow the hose and master cylinder reservoir to drain.
3. Disconnect the hydraulic hose from the RMCI assembly.
4. Replace the hose.
5. Connect the new hydraulic hose to the master cylinder and RMCI assembly. Make
sure both copper washer seals have been replaced with new ones at the banjo bolts.
Ensure the îš¿ttings and hoses are oriented and tie-wrapped in the same manner as they
were previously installed.
6. Torque the brake line banjo bolt to 20-22 FT LBS. (27.12 Nm).
7. Perform the servicing procedure, Bleeding the Hydraulic Brake System (Service
Brakes)

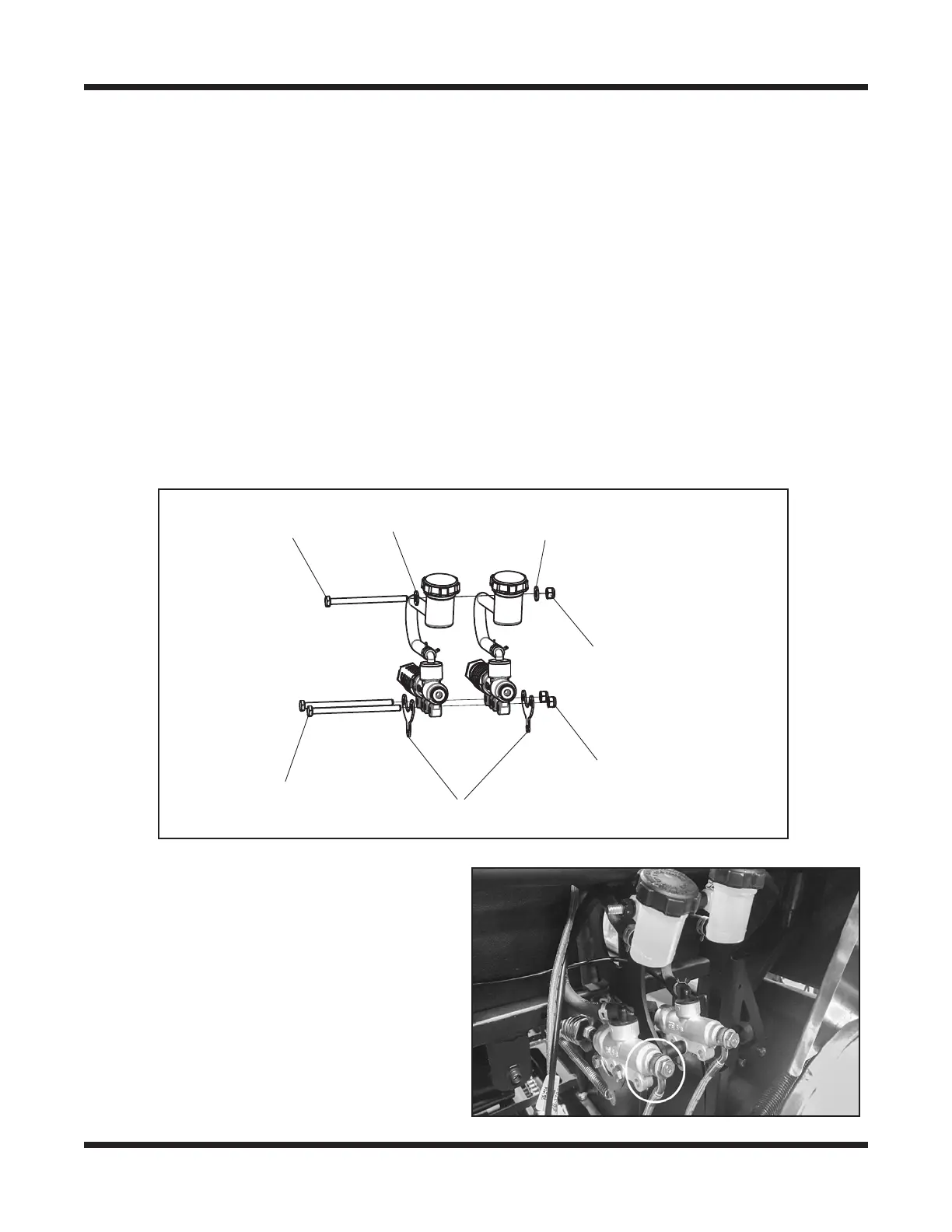

Removing The RMCI Assembly (Aurora & EU 600 Models)
103-111 HHCS
103-66 HHCS
300-0256 SPRING RETAINER BRACKET
117-27 LOCKNUT
108-08 WASHER
108-08 WASHER
117-27 LOCKNUT
1. Remove the vehicle hood and locate the
Master Cylinder/Plunger Pin assembly.
2. Disconnect the hose from the caliper.
Place a catch tray under the free end of
the hydraulic hose and allow the hose
and master cylinder reservoir to drain.
3. Remove the HHCS 1/4-20x4.0 GR5
Zn & Locknut, Nylon 1/4-20 Zn secur-
ing the RMCI Assembly to the steer-
ing column frame. Be careful of wash-
ers and the Spring Bracket Retainers used in the assembly.
