Argo All 8X8 - Idler Chain Lubrication (Frontier Models Only); Installing the Idler Chain-Self Adjust (Frontier)

Wheels, Axles & Chains Argo Service Manual
WA-7

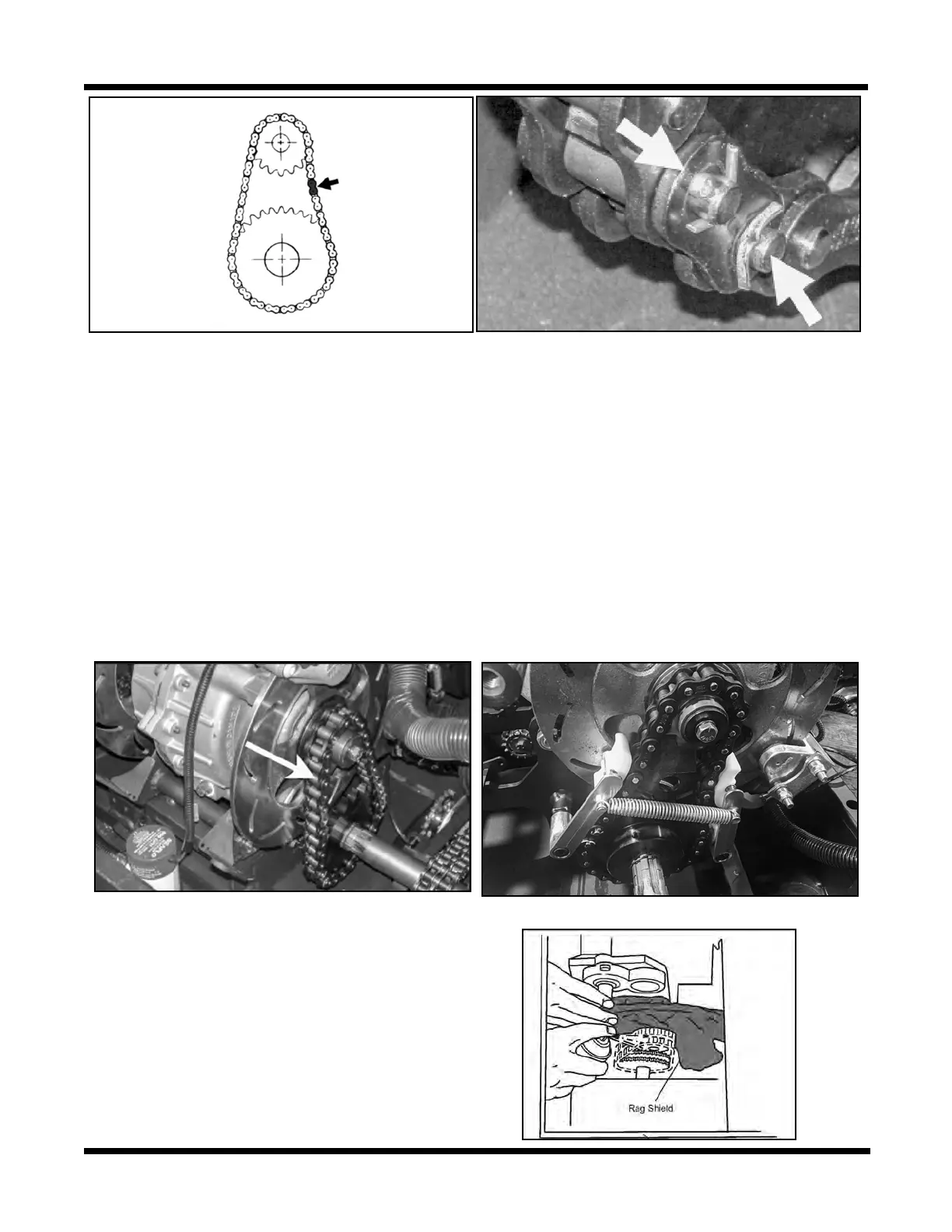

3. Remove the cotter pins from the connecting link. Remove the outside plate and tap out
the connecting link.
4. Remove the idler chain from the vehicle.
Installing The Idler Chain-Self Adjust (Frontier)
1. Install the chain over the brake disc sprocket and the idler shaft sprocket.
2. Pull the ends of the chains together and insert the connecting link.
3. Install the outside plate and secure with the cotter pins. Always use new cotter pins.
4. Reinstall the tensioner spring between the idler chain tensioner arms.
5. Reinstall the rewall.
Idler Chain Lubrication (Frontier Models Only)
Frontier Idler Chain W/O chain tensioner Frontier Idler Chain W/chain tensioner
When applying the chain lube, protect the
brake discs with a rag or simple cardboard
shield. DO NOT SPRAY CHAIN LUBE
ON THE BRAKE DISCS OR PADS. Roll
the vehicle so that all of the idler chain is
accessible for lubrication.
