Wheels, Axles & Chains Argo Service Manual
WA-33
Removing the Inner Bearing
1. Perform the servicing procedure, Removing an Axle, steps 1 through 8. The axle
needs to be pulled from the inner bearing to be serviced. The axle assembly should be
pulled completely at this point so that the old gasket at the outer bearing ange may be
replaced with a new one.
2. Remove the inner bearing ange hardware securing the bearing to the frame and re-
move the assembly to a clean work surface.
Installing the Inner Bearing

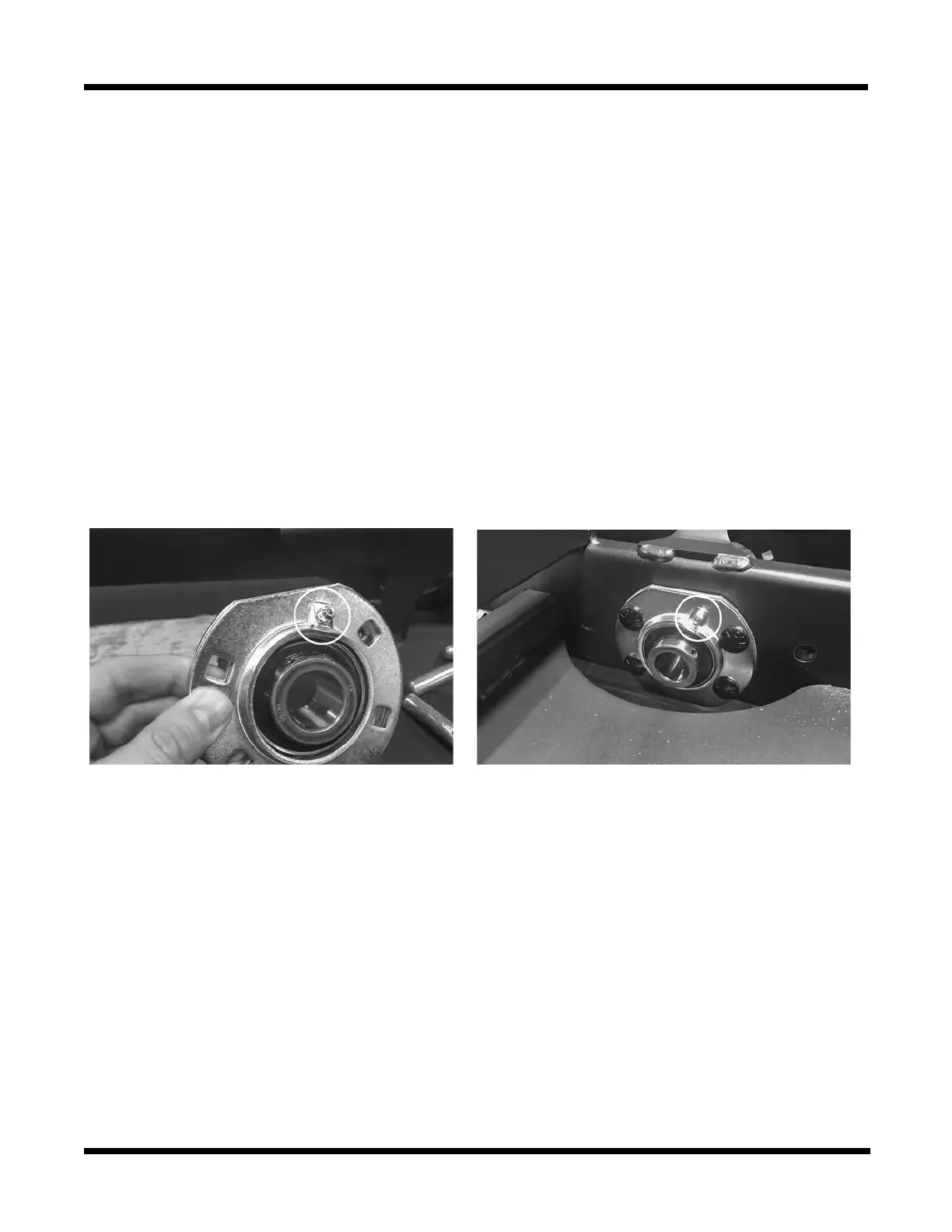

Assembling the Inner Bearing and Flange Assembly
1. Place the bearing into the greasable ange with the set screw collar facing down.
At the same time align the small hole in the bearing with the grease tting in the
ange.
2. Place regular ange to the top of the bearing.
3. Loosely install the bearing and ange assembly to the inner frame channel. Orient the
grease tting facing up.
4. Perform the servicing procedure, Installing an Axle.
5. Perform the servicing procedure, Drive Chain Installation.
To Next Page
