Wheels, Axles & Chains Argo Service Manual
WA-24
2. Perform the servicing procedure, Removing The Drive Belt (if the left side Output
Shaft is being serviced).
3. Perform the servicing procedure, Removing The Driven Clutch (if the left side Output
Shaft is being serviced).
4. Perform the servicing procedure,
Removing The Hydraulic Brake Caliper - Service
Brakes (Aurora) Do NOT disconnect the brake lines from the caliper.
5. Perform the servicing procedure, Removing A Drive Chain on the front and mid chain.
6. Remove all six (5) Bolt, Shoulder M10x45 securing the Service Brake at the coupler.
They are secured by six (5) Lock washer 5/16 Split-Ring Bnz and six (6) Locknut, Ny-
lon M8x1,25mm Zn8.
7. Slide the coupler back on the output shaft and slip out the Service Brake Disc.

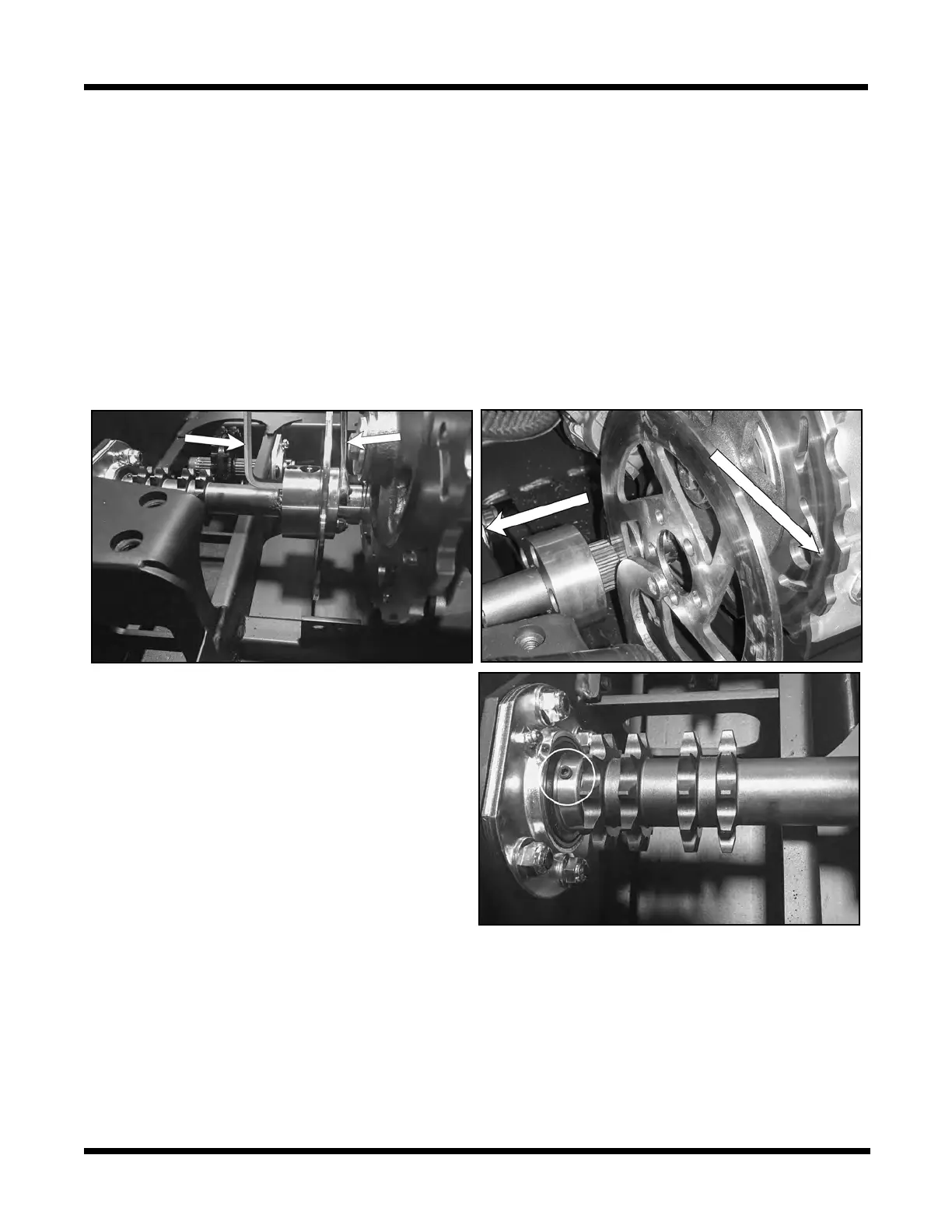

8. Locate the outer Idler Shaft Bearing
and remove the set screw.
9. Loosen the ange hardware.
10. Push the idler shaft in towards the in-
ner bearing and tilt up to slip the shaft
out from the bearing.
Installing The Idler Shaft
(Aurora Models)
1. With the outer bearing ange hardware loosely installed, tilt the outer bearing up while
inserting the idler shaft into the bearing as far as it will go.
2, Tilt the Idler Shaft assembly back down until the couplers mate at the transmission.
3. Reinstall the coupler bolts and lock washers and Torque to 22 FT.LBS. (30.0 Nm).
4. Perform the servicing procedure, Installing A Drive Chain on the front and mid chain.
5. Perform the servicing procedure, Installing
The Hydraulic Brake Caliper - Service
Brakes (Aurora)
