ES-25
Electrical System Argo Service Manual
Ontario Drive & Gear Limited www.argoutv.com
PH.(519)- 662-2840 FAX (519)- 662-2421

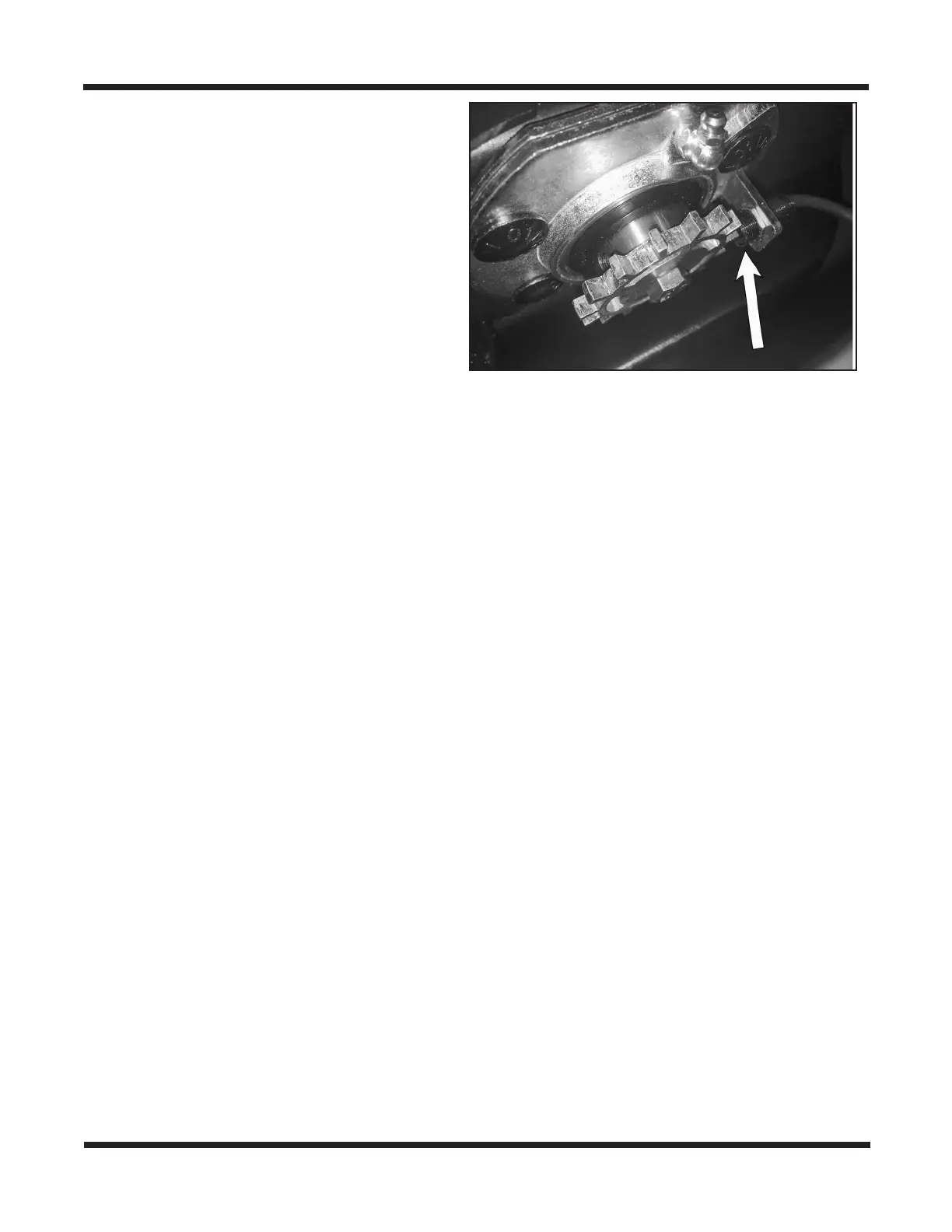

Speedometer Sensor
The speedometer sensor is located on the
right hand side of the vehicle at the mid
sprocket on 6x6 models and the front
sprocket on 8x8 models. This sensor picks
up the signal from a 15 tooth wheel speed
sensor disc attached to the axle.
Gap between speed sensor and sprocket
tooth is 1mm. Adjust as necessary.
