Place the bubble element on top of the FRAMEGLOW module
and tighten the 3mm allen screw.
Turn on the FRAMEGLOW and check that ground glass and glow
mask are correctly aligned.

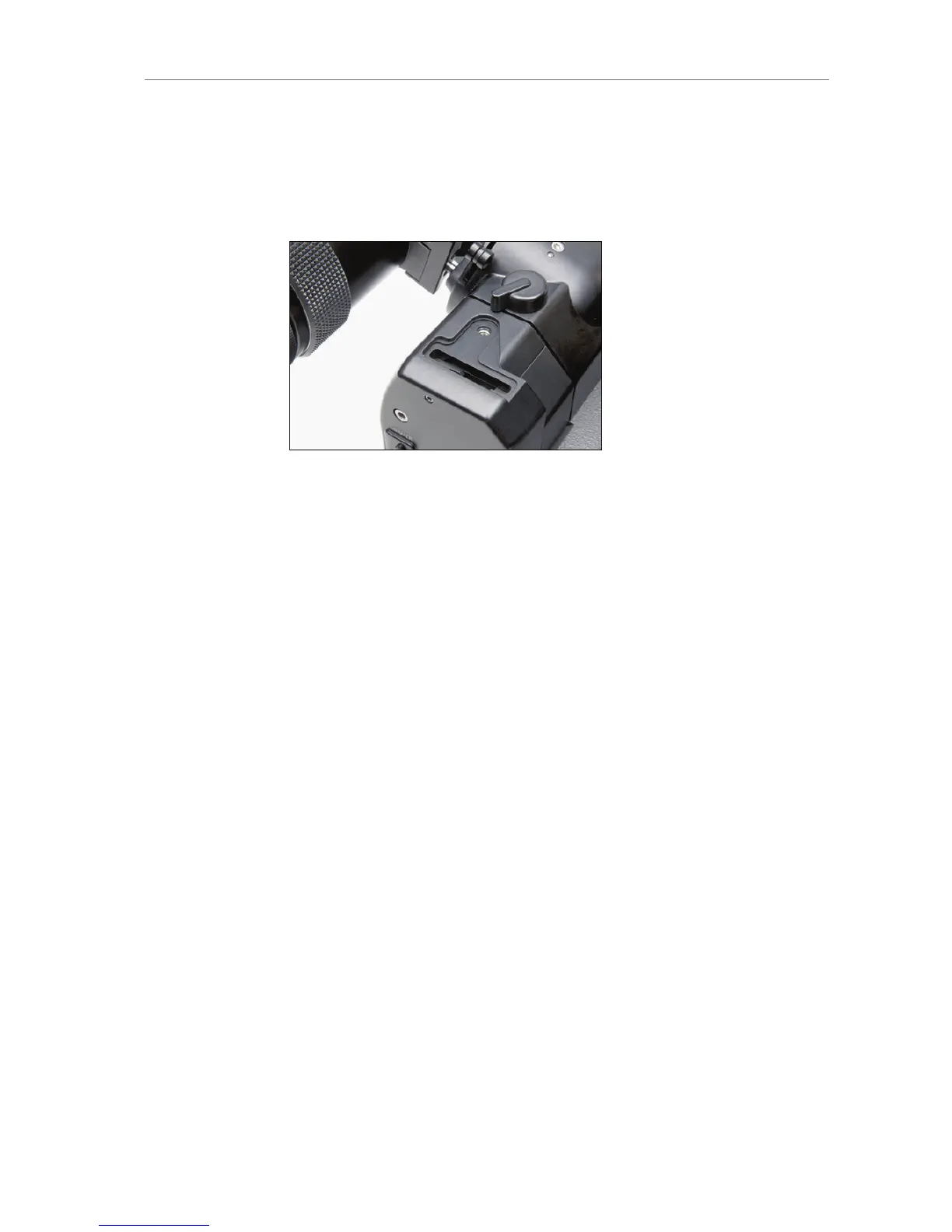

Figure 109: Glow mask slot
Anamorphic Desqueeze
Turn the wheel on top of the OVF ball element to swing the
anamorphic desqueeze element into the optical path.
Note: By default, the anamorphic element is for 2x anamorphic
lenses. It can be changed to an element for 1.3x anamorphic
lenses.
Image Flip
Press the button next to the image flip symbol.
Turn the knob next to the image flip symbol until the image is
fully flipped.
To undo the flip, rotate the knob until the button jumps out and
the knob is locked again.
Diopter Adjustment
Note: Depends on the eyepiece in use. Description for default
eyepiece of ALEXA Studio.
Turn the eyepiece barrel until the ground glass is in focus.
A neutral, unstructured, bright out-of-focus image content (which
can be achieved by removing the lens and pointing the camera
at a bright area) helps with this.
