ARRI ALEXA Series User Manual

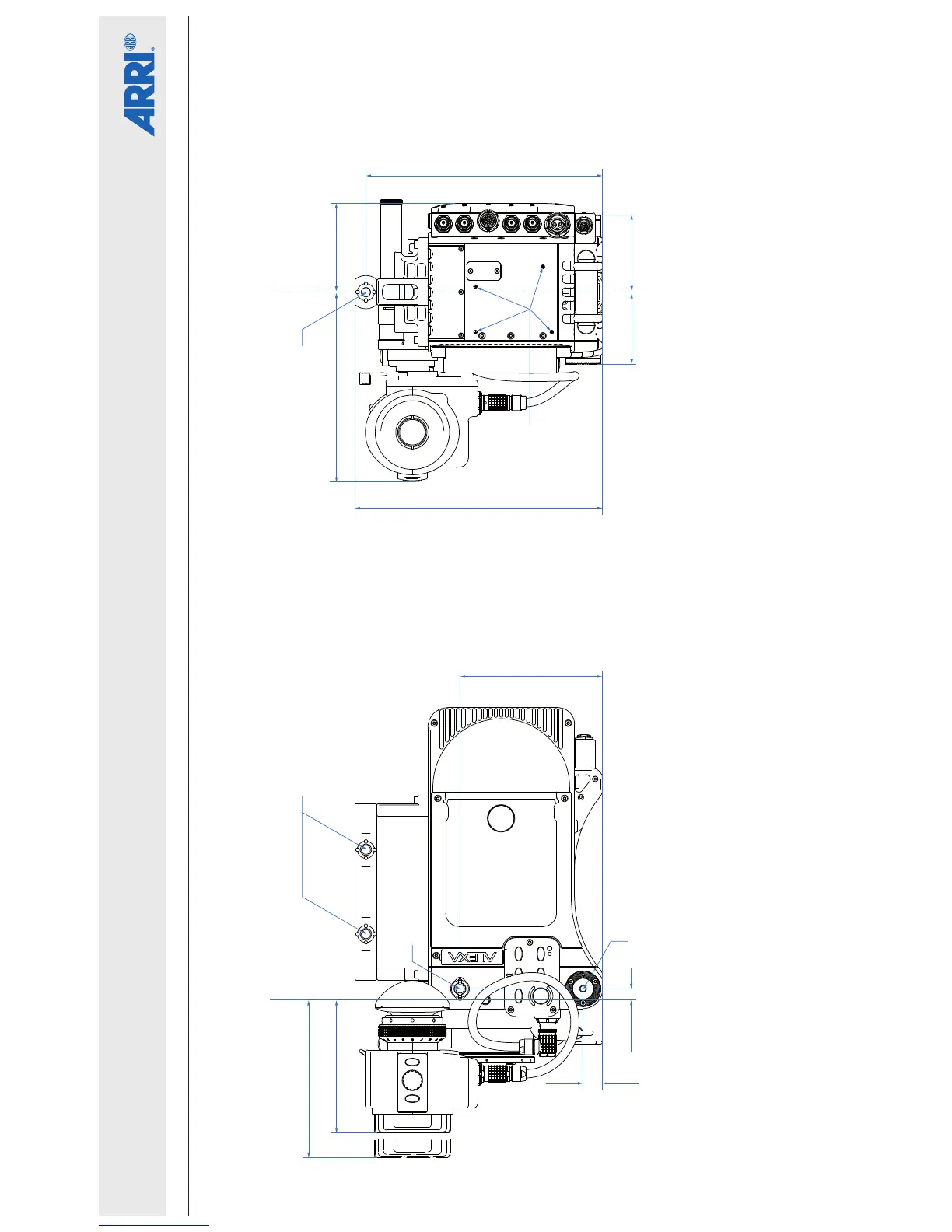

Technical Data are subject to change without notice.CAMERA DIMENSIONS – Version 2012-03
ALEXA
Camera Left Image Plane
Camera Back Optical Center
224 mm
8.81”
128.8 mm
5.07”
17.6 mm
0.7”
10 mm
0.39”
213.8 mm
8.42”
80 mm
3.15”
171 mm
6.73”
142 mm max.
5.59”
120 mm
4.72”
64.9 mm
2.56”
69.9 mm
2.75”
M6 (3.5 mm deep)
M3 (6 mm deep)
UNC 3/8“–16 (10 mm deep)
UNC 3/8“–16 (10 mm deep)UNC 3/8“–16 (10 mm deep)

ARRI ALEXA Series Specifications

General

Dynamic Range	14+ stops
Resolution	4.5K (ALEXA LF), 6.5K (ALEXA 65)
Recording Formats	ARRIRAW, Apple ProRes
Lens Mount	PL mount
Viewfinder	Optional EVF (Electronic Viewfinder)
Sensor Size	Super 35 (most models), Large Format (ALEXA LF, ALEXA 65)
ISO Range	EI 160 - EI 3200 (Base ISO 800)
