ARRI ALEXA Series User Manual

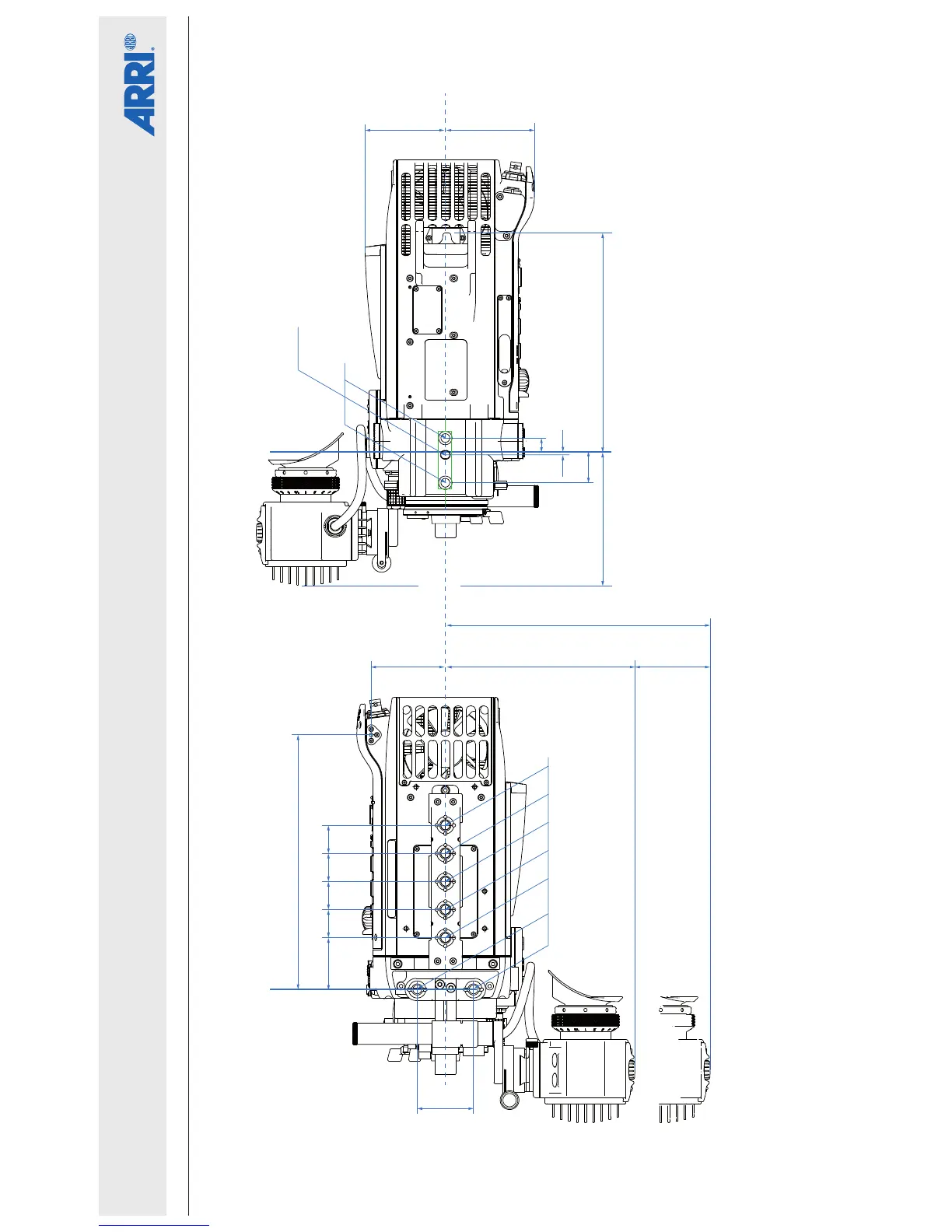

Technical Data are subject to change without notice.CAMERA DIMENSIONS – Version 2012-03
ALEXA
Camera Top Image Plane
Camera Bottom Image Plane
Optical Center
230 mm
9.05”
120 mm
4.72”
198 mm
7.79”
27.5 mm
1.08”
2.5 mm
0.1”
12.5 mm
0.49”
67 mm
2.64”
50.8 mm
2”
171 mm
6.73”
73 mm
2.87”
80 mm
3.15”
68 mm
2.68”
239 mm max.
9.41” max.
46.7 mm
1.84”
25.4 mm
1”
25.4 mm
1”
25.4 mm
1”
25.4 mm
1”
UNC 3/8“–16 (10 mm deep)
oval hole 7 mm (+0.022) wide and 8 mm long (4.5 mm deep)
UNC 3/8“–16 (10 mm deep)

ARRI ALEXA Series Specifications

General

Dynamic Range	14+ stops
Resolution	4.5K (ALEXA LF), 6.5K (ALEXA 65)
Recording Formats	ARRIRAW, Apple ProRes
Lens Mount	PL mount
Viewfinder	Optional EVF (Electronic Viewfinder)
Sensor Size	Super 35 (most models), Large Format (ALEXA LF, ALEXA 65)
ISO Range	EI 160 - EI 3200 (Base ISO 800)
