ARRI ALEXA Series User Manual

Technical Data are subject to change without notice.CAMERA DIMENSIONS – Version 2012-03

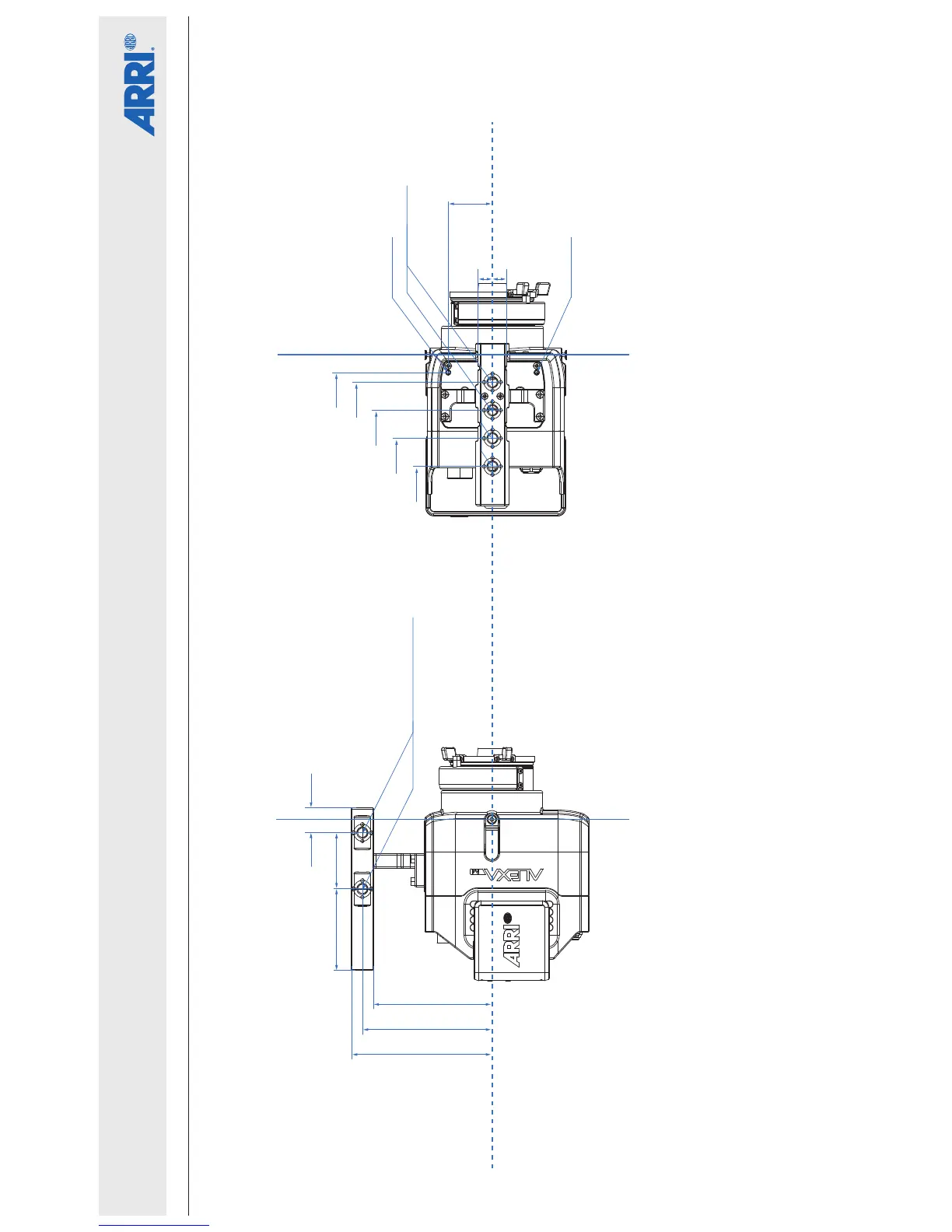

ALEXA M
Head with Handle Right Image Plane
Head with Handle Top Image Plane
Optical Center
50.8 mm
2.0”
73.4 mm
2.89”
127 mm
5.0”
117 mm
4.6”
40 mm
1.58”
13 mm
0.51”
13 mm
0.51”
10.5 mm
0.41”
12.1 mm
0.48”
24.8 mm
0.98”
50.2 mm
1.98”
75.6 mm
2.98”
101 mm
3 .98”
16 mm
0.63”
M4 (4 mm deep) M4 (4 mm deep)
UNC 3/8“–16 (10 mm deep)
107 mm
4.21”
UNC 3/8“–16 (10 mm deep)

ARRI ALEXA Series Specifications

General

Dynamic Range	14+ stops
Resolution	4.5K (ALEXA LF), 6.5K (ALEXA 65)
Recording Formats	ARRIRAW, Apple ProRes
Lens Mount	PL mount
Viewfinder	Optional EVF (Electronic Viewfinder)
Sensor Size	Super 35 (most models), Large Format (ALEXA LF, ALEXA 65)
ISO Range	EI 160 - EI 3200 (Base ISO 800)
