Magazine

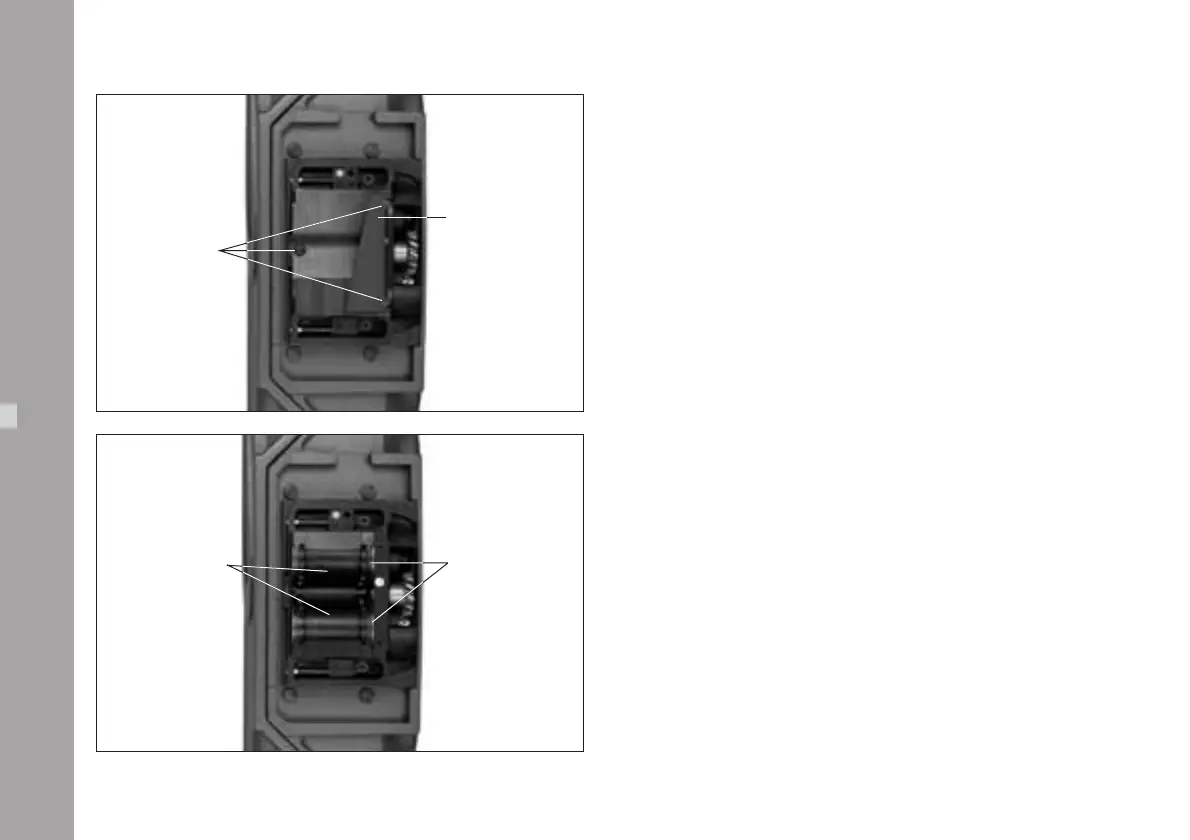

Cleaning the Throat Assembly
The throat assembly photo can be disassembled for
cleaning.
Loosen the three screws photo on the throat assembly
cover photo.
Remove the holder plate photo for the loop protector.
Pull out the throat assembly cover.
Clean the film running surfaces photo and guide
rollers photo with a brush.
Put the throat assembly cover back in place.
Replace the holder plate for the loop protector and re-
tighten the throat assembly cover with the three screws.
Setting Friction on the ARRIMAG 120
Swing both roller arms photo away from the
winding shafts until they lock in place.
Unscrew the three screws on the transparent tensioning
plate photo.
Remove the plate.
Place film cores on both winding shafts.
Place the tension measurement device photo on
the film core which will not be measured.
Hang the hook of the measurement device photo
on the film core which is to be measured.
Attach the open magazine to the camera.
Maintenance
screws
running surfaces
guide rollers
holder plate
