81
Video Viewfinder VT-2
The video viewfinder VT-2 is a 100%-video-tap module. It
can easily be fitted in place of the standard viewfinder system
for Steadicam or crane operation. The same video optic that
is used on the standard viewfinder system can be also fitted
to the video viewfinder.
Mounting the Video Viewfinder
Removing the Standard Viewfinder System
• Lock the viewfinder arm into horizontal position.

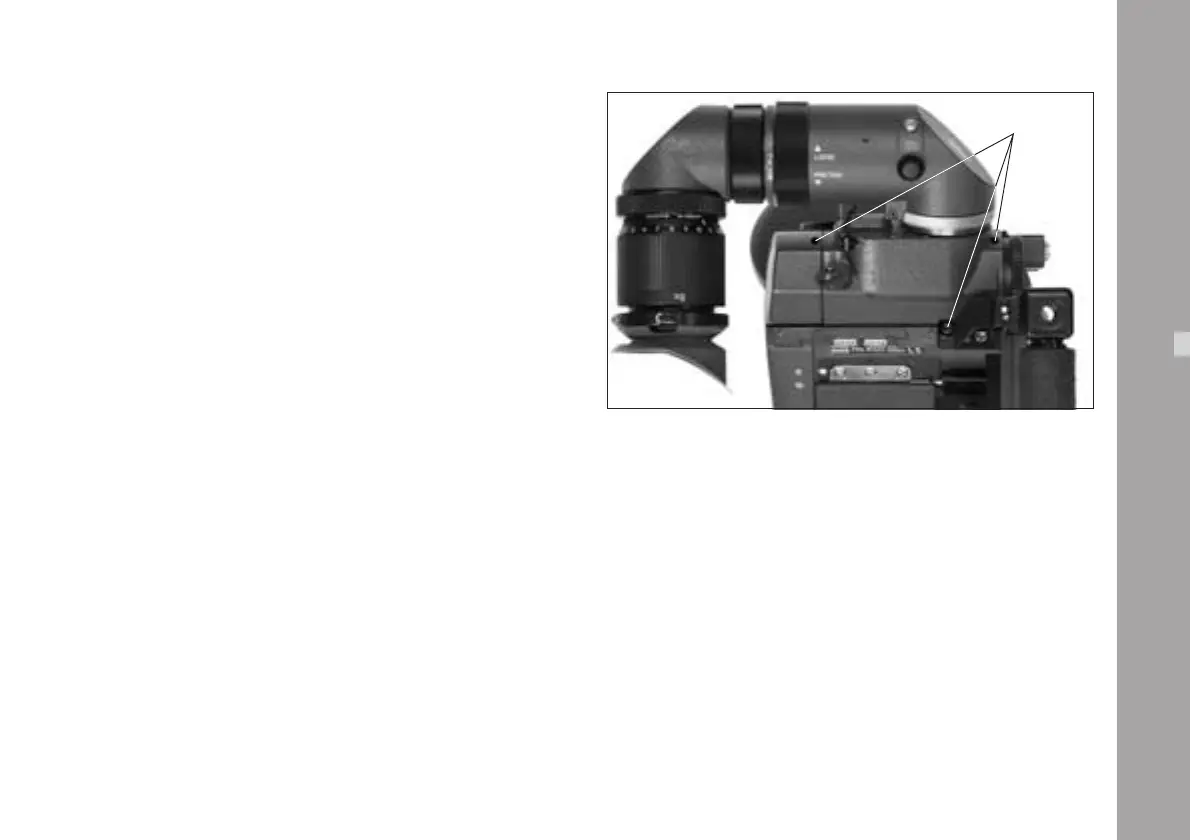

• Unscrew the three fastening screws of the standard
viewfinder system ➪ photo.
• Pull the viewfinder system up and off.
Mounting the VT-2
• Position the VT-2 on the camera body from above.
• Tighten the fastening screws.
Mounting the video optic is carried out in the same way as
on the standard viewfinder system.
Accessories
fastening
screws
