5. Power Supply
The acceptable voltage range is from 20.6 to 35 V DC.
Depending on the desired frame rate, the following
voltage range should be chosen for the power supply:
Frame Rate Voltage
0.1 - 130 fps 20.6 - 35 V DC for standard and low ramps
130 - 150 fps 24 - 35 V DC for standard and low ramps
0.1 - 130 fps 24 - 35 V DC for high ramps
130 - 150 fps 26.5 - 35 V DC for high ramps
The power supply cable is attached to the power supply
socket on the camera.
Available are:
for 0.1 - 130 fps
• the battery NC 24/7 R ➪ photo
with charger NCL 24 R ➪ photo and
• the mains unit NG 12/24 R.
for 0.1 - 150 fps
• the mains unit NG 12/26 R ➪ photo.
• First switch on the mains unit (if used).
• Connect the camera to the mains unit or to the battery.
• Switch on the main switch of the camera.
Do not open the batteries!
Charge batteries only with the ARRI chargers!
Do not bypass the fuse or temperature switch!
Do not heat NC-batteries!
Do not short-circuit NC-batteries!

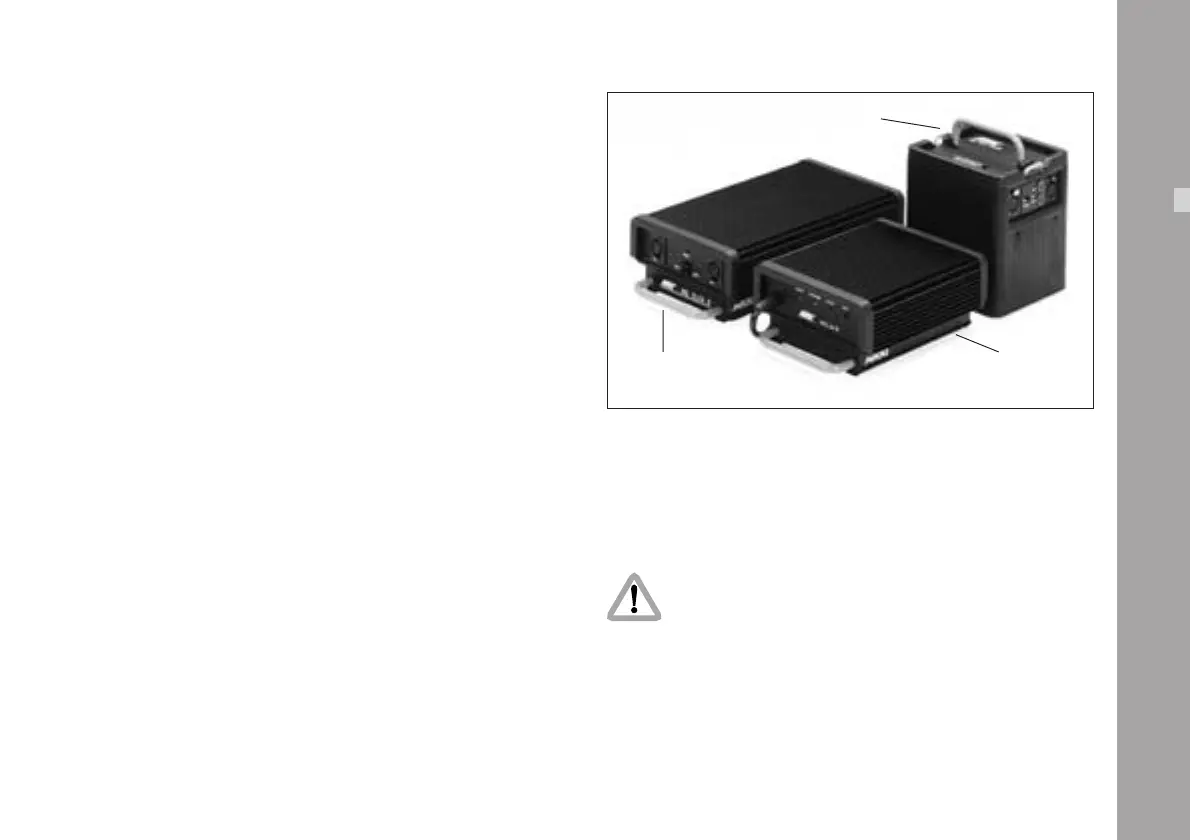

Power Supply
battery NC 24/7R
NG 12/26
NCL 24 R
