ARRI Arriflex 435 Advanced User Manual

47
8. Optics
Lenses
The ARRIFLEX 435 Advanced is prepared for the Lens Data
System. All ARRIFLEX lenses with Lens Data System can be
used. It is also possible to use all older ARRIFLEX lenses with
a PL-mount. Lenses with a Ø 41 mm standard or bayonet
mount cannot be used. Heavy and long lenses, such as
zoom-lenses, must be supported at all times.
Attaching Lenses
• Remove the protective cap from the lens mount receptacle
by turning the bayonet ring ➪ photo counter-clockwise
as far as it will go and then pulling out the protective cap.
Never put your fingers into the lens mount
receptacle. Do not change lens while camera is
in motion control mode
• Push the lens into the lens mount receptacle without
catching it at the edges. One of the four slots on the
lens mount must fit over the index pin ➪ photo.
• Press the lens flat onto the lens mount receptacle and
pull the bayonet ring clockwise to tighten.
Note: For Super 35 shots the lens mount receptacle
must be turned 180°. See Chapter 12, Super 35 .
Optics

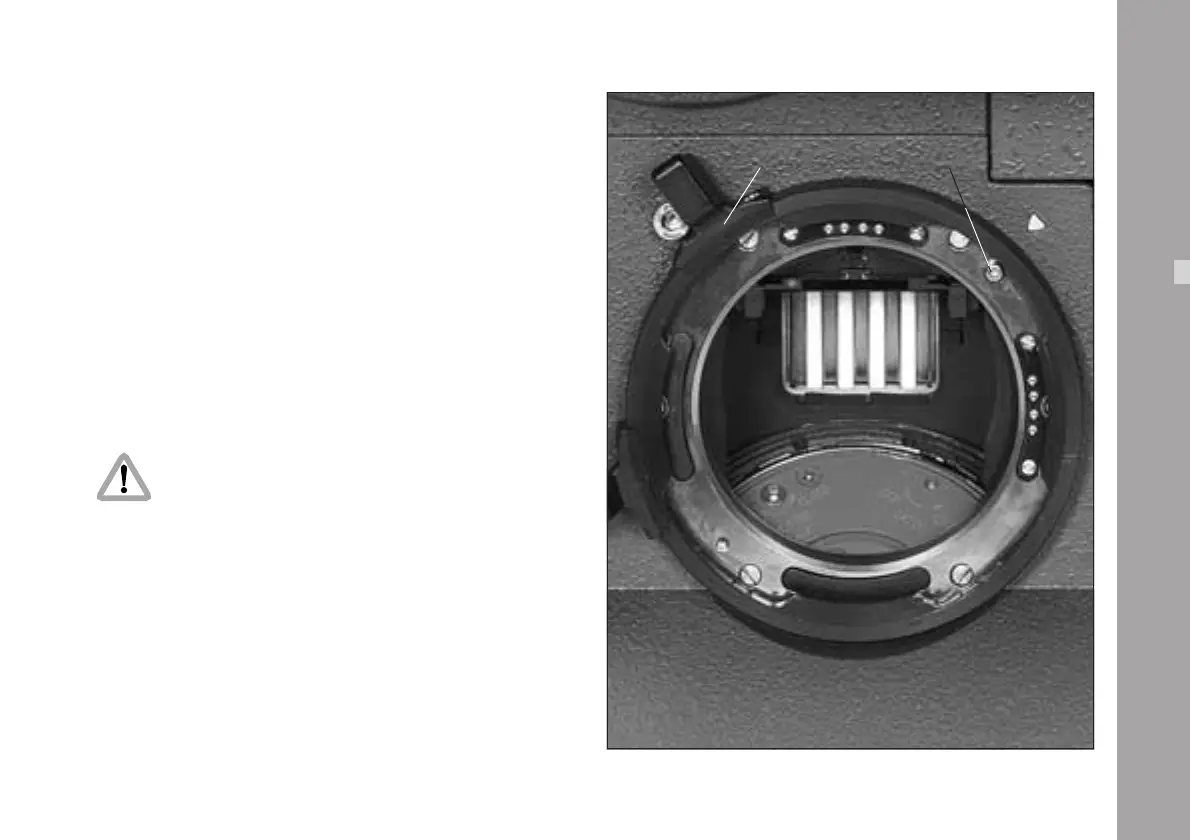

bayonet ring
index pin
