46
Removing the Magazine
If the film has not run through the camera completely:
Open the camera door.
Swing back the movement block just far enough to en-
able the film to be pulled out from between the film gate
and the movement block.
Note: When slowly swinging back the movement block,
a ball catch is noticeable.
Pull out the film loop sideways from between the move-
ment block and the film gate.

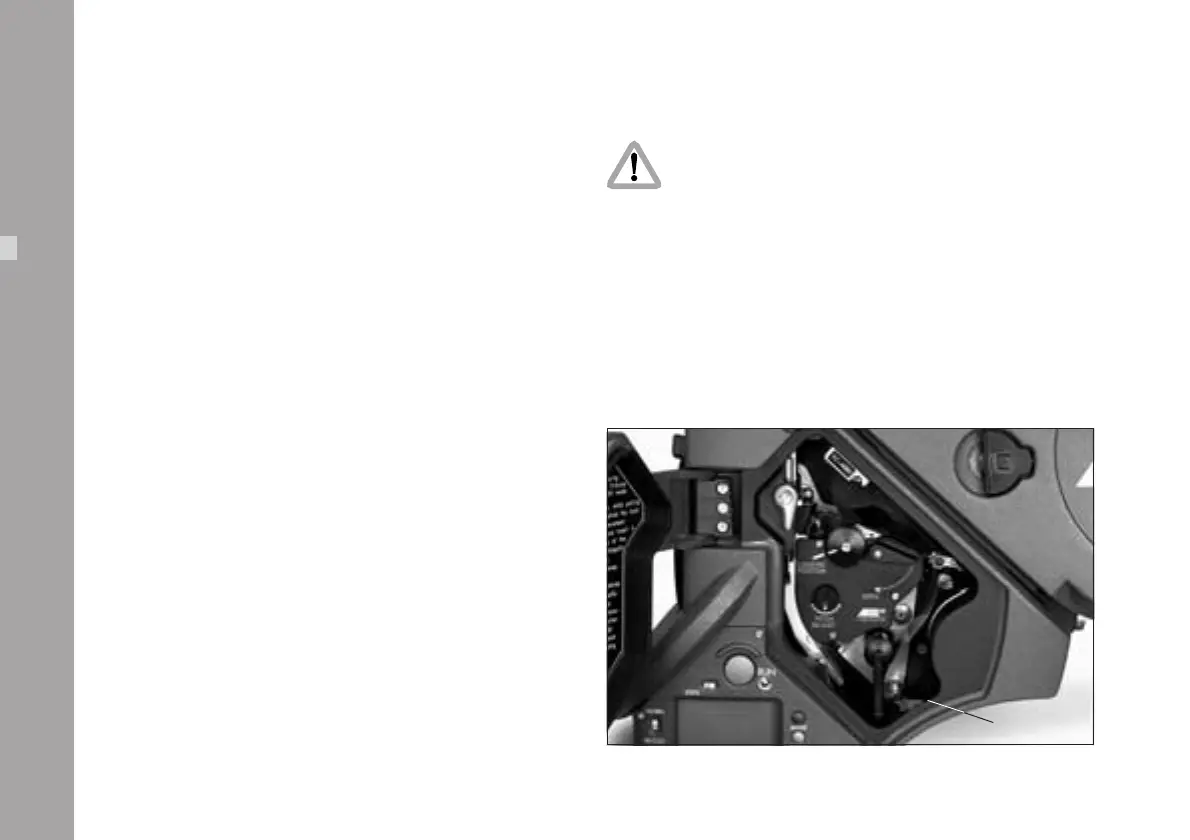

Bring the loop into the area between the movement block
and the magazine throat assembly photo.
Ensure that the loop does not get twisted behind
the movement block as otherwise the film could
be damaged when removing the magazine!
Swing the movement block forwards again and lock.
Hold the magazine firmly with one hand and pull the
magazine locking lever back with the other.
When pulling away the magazine ensure that
the film does not get damaged!
Pull the magazine off upwards.
Replace the cover on the camera opening.
If the entire film has run through the camera:
Hold the magazine firmly with one hand and pull the
magazine release lever back with the other.
Pull the magazine off upwards.
Replace the cover on the camera opening.
