Functional Expansion Module FEM
The functional expansion module is included in the standard
package of the ARRIFLEX 435 Advanced.
The TC-generator, the TC-buffer and the TC in- and
outputs are integrated into the FEM. In addition, the FEM
offers interfaces for camera accessories:
”ACC” socket: ESU-1, RU-1
”CCU” socket: CCU-1, RCU-1, LCC and RS 232 interface.
Note: Use of the RU-1 is possible, but not recommended.
The range of frame rates that can be adjusted with
the RU-1 is limited to 8.1 - 130 fps. Furthermore,
the set frame rate does not correspond to the scale
on the adjusting wheel. The exposure time in
“Auto”-mode is also not 1/100 s, but 1/260 s.

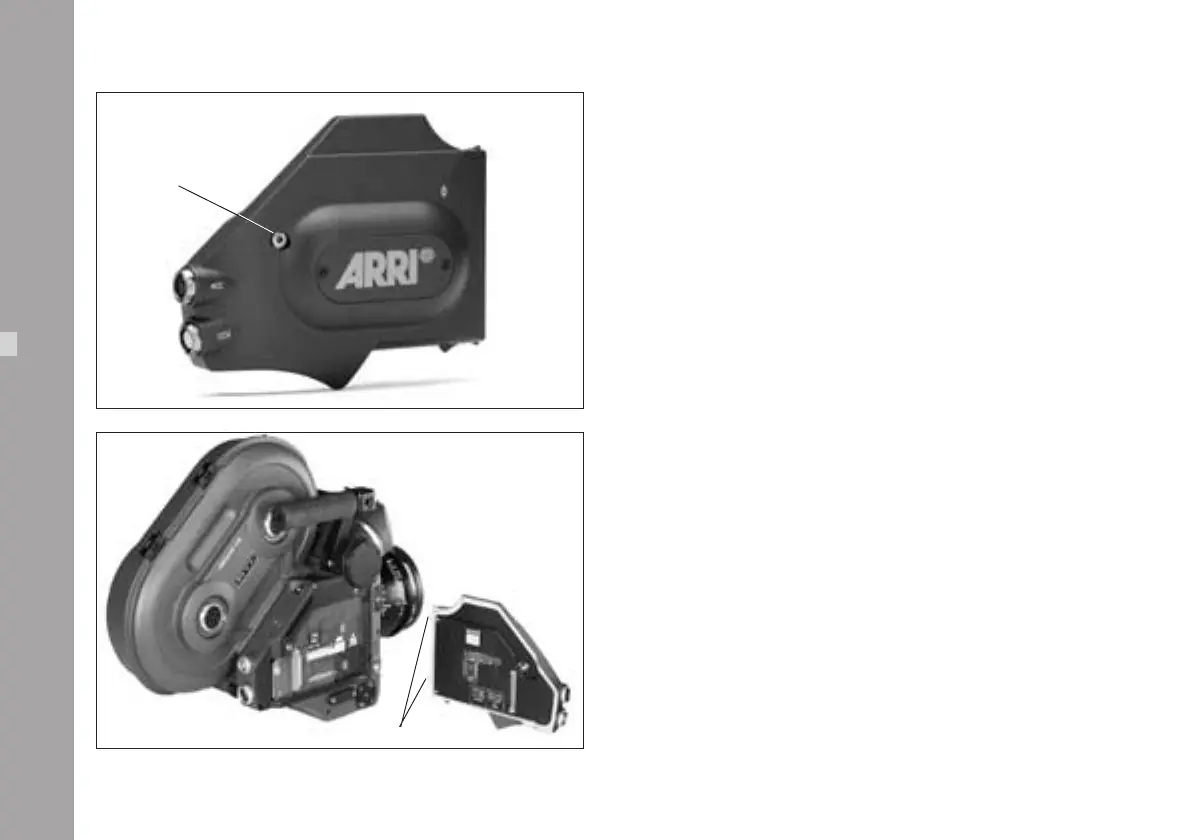

The FEM is mounted directly onto the camera in place of
the electronic cover.
• Switch off the camera’s main switch and disconnect
the camera from the power supply.
• Unscrew the fastening screw on the electronic cover.
• Swing the electronic cover away to the side and pull
off backwards.
• Place the fastening flaps of the FEM ➪ photo into the
recesses in the camera housing.
Accessories
fastening screw
fastening flaps
