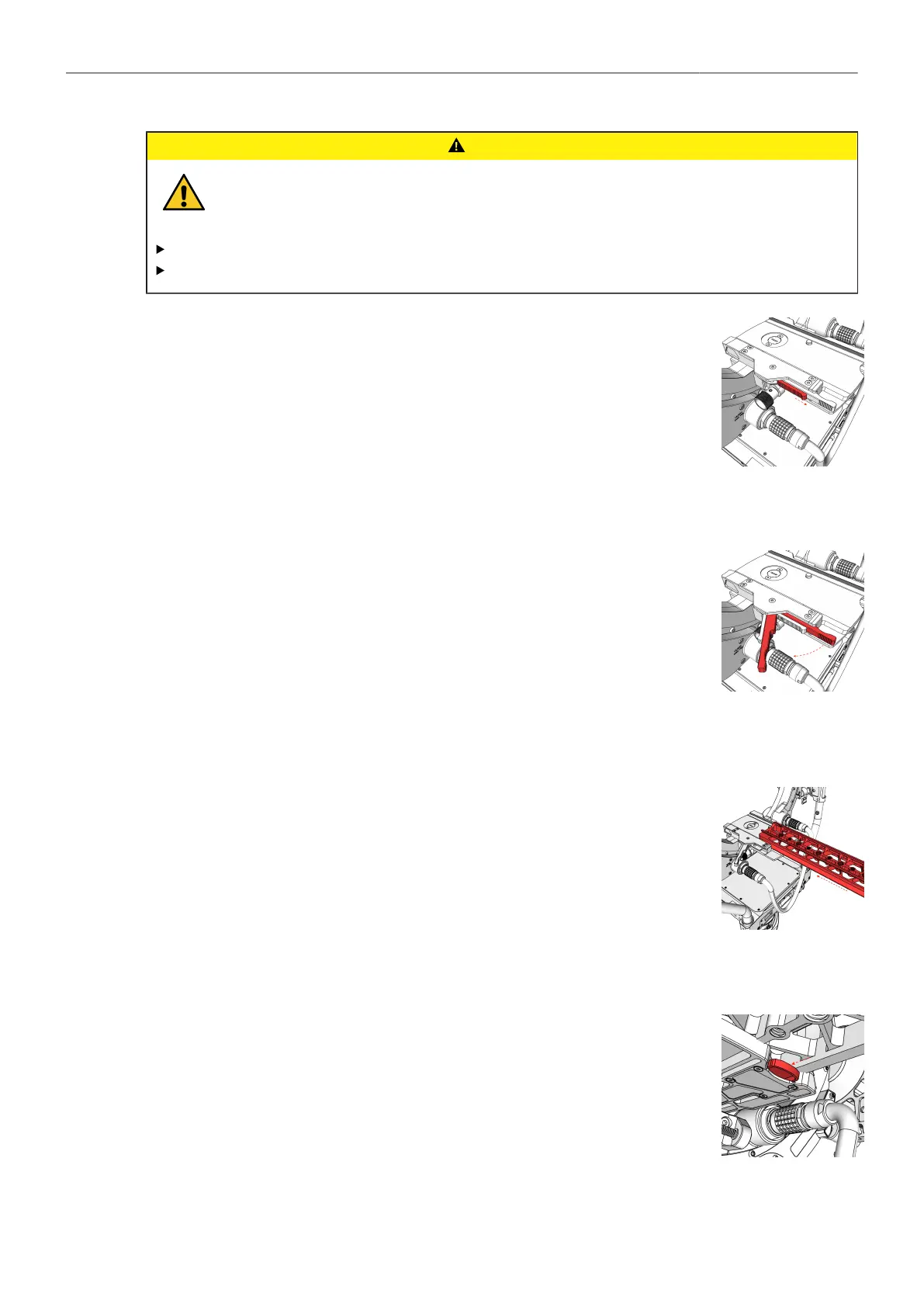

Installation and Operation 49
CAUTION
Moving clamp lever without safety lock
Risk of crushing fingers.
Do not pull on the clamp lever before the safety lock has been released!
Do not pull on the clamp lever and slide the safety latch at the same time!
Safety Latch
2. Touch the safety latch with your thumb and slide it fully to the right.
Clamp Lever
3. Place your index finger behind the clamping lever and pull the clamping lever
forward until it reaches the end stop on the left side.
Insert SAM Plate
4. Slide the SAM dovetail plate in from the back.
Safety Lock
5. To fully seat the SAM dovetail plate, push the safety lock all the way in.
To Next Page
