ARRI TRINITY 2 - Battery Mounting System Operation and Installation; Installation and Replacement of Battery Mounts; Mounting the BMS on Rods

Installation and Operation 87

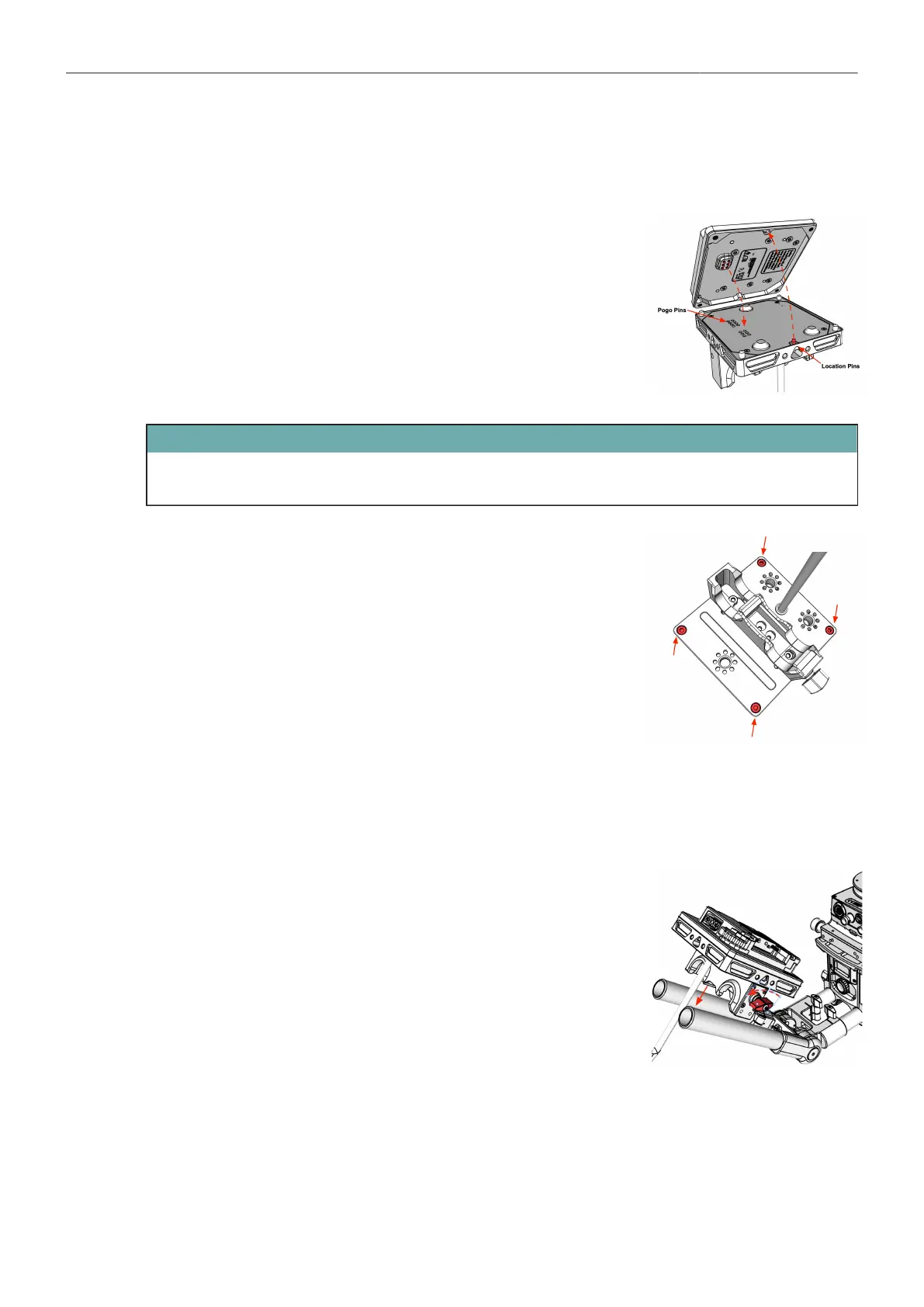

8.8 Battery Mounting System Operation and Installation
8.8.1 Installation and Replacement of Battery Mounts
1. Place the Battery Mount on the BMS Base.
ATTENTION
Make sure the location pin is aligned with the receiver hole and that the pogo pins line up with the
receiver pads on the circuit board.
2. Use the 3mm hex key to tighten all four screws.
8.8.2 Mounting the BMS on rods
BMS-1 & BMS-2
1. Open the clamp wing nut fully.
2. Place the Battery Mount at the desired position.
3. Tighten the clmap wing nut.
