ARRI TRINITY 2 - Battery Hanger Module Operation and Installation; Batter Hanger Module BHM-2; Mounting Ø19 Mm Rods

Installation and Operation 74

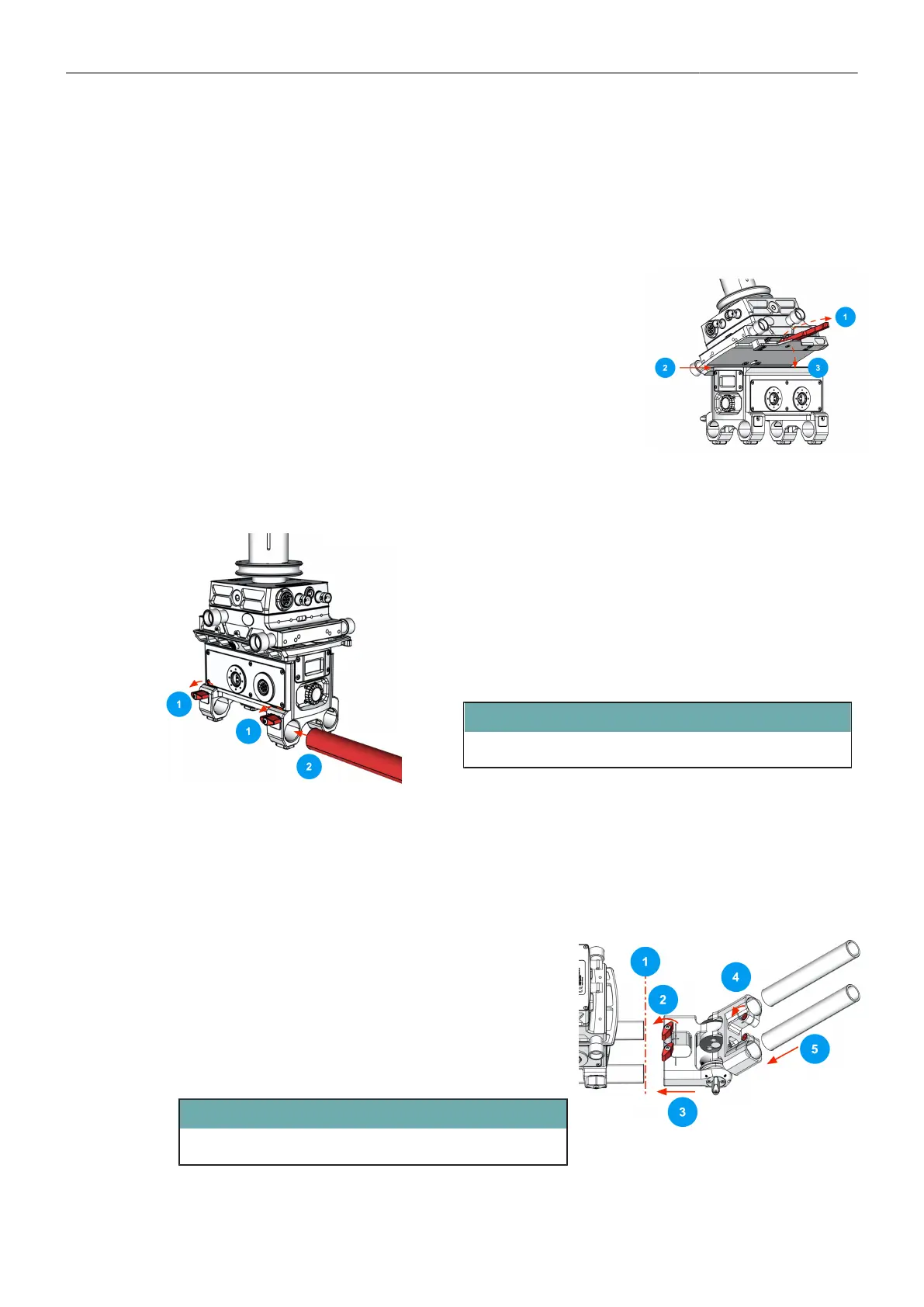

8.7 Battery Hanger Module Operation and Installation
8.7.1 Batter Hanger Module BHM-2
Mounting BHM-2 to TST / BST
1. Unlock and open the Top / Bottom Stage clamp mechanism.
2. Align the Battery Hanger Module dovetail with the Top / Bottom
Stage mount.
3. Lift the Battery Hanger Module completely into the Top / Bottom
Stage.
4. Lock the dovetail clamp mechanism.
8.7.2 Mounting ø19mm Rods
1. Turn both Rod Clamp wing nuts to the left to open the
clamp mechanism.
2. Insert the 19mm rods.
3. Tighten both rod clamp wing nuts.
ATTENTION
Do not over tighten, when using carbon fiber rods.
Mounting the hinge and the short ø 19mm rods
1. Alling the long 19mm rods.
2. Open both wing nuts.
3. Place the hinge on the long ø19mm rods.
Tighten the wing nuts.
4. Open the clamp screws.
5. Place the short ø19mm rods.
Tighten the clamp screws.
ATTENTION
Do not over tighten, when using carbon fiber rods.
