Installation and Operation 51
K2.0038618 Stabilizer System Bracket SSB-2 15mm

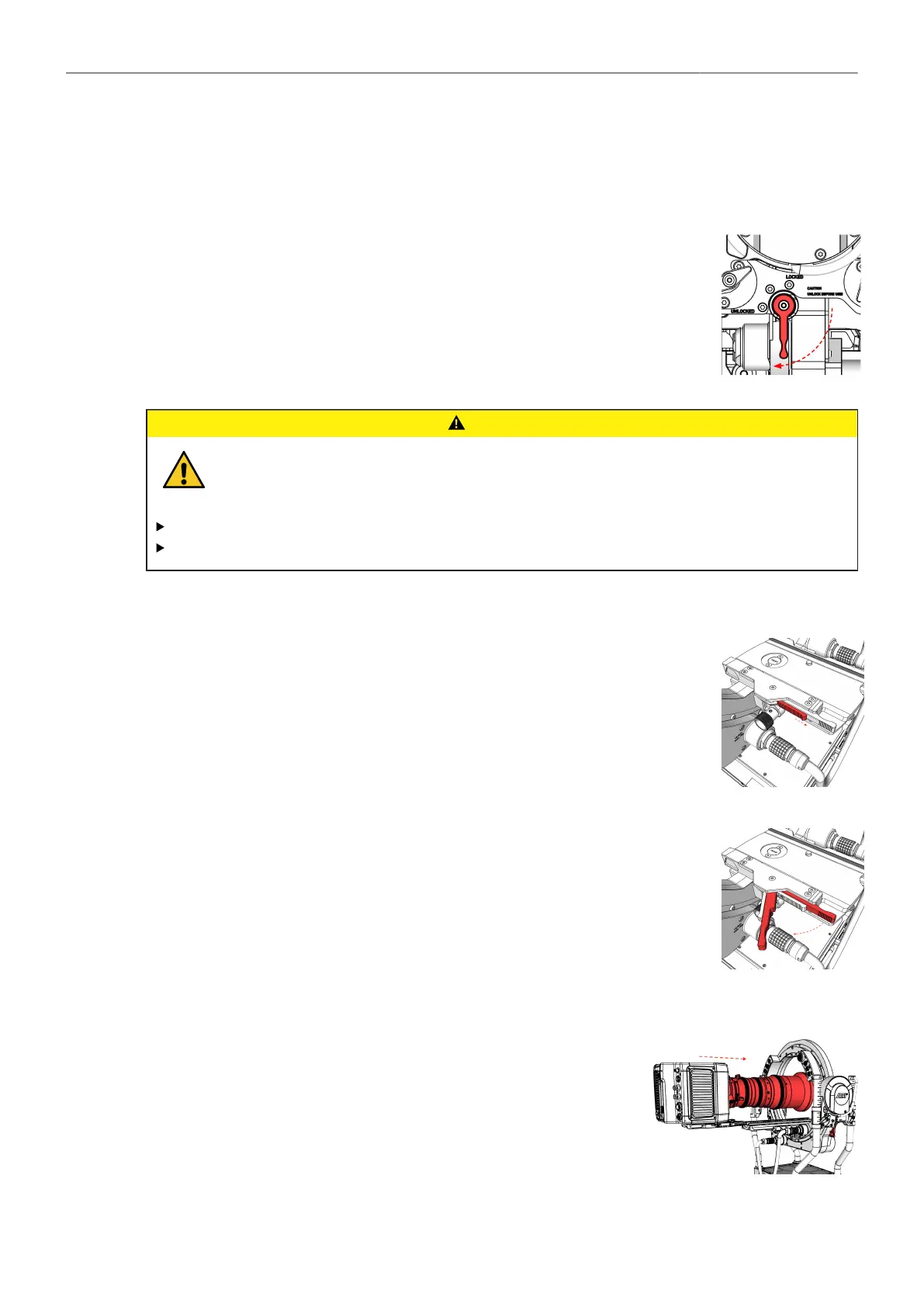

8.1.3 Installing the Camera to TRINITY 2 Head
Tilt-Lock
1. Move the Lock lever to the left in the Locked position.
CAUTION
Moving dovetail clamp mechanism lever without safety lock.
Risk of crushing fingers.
Do not pull on the dovetail clamp mechanism lever before the safety lock has been released!
Do not pull on the dovetail clamp mechanism lever and slide the safety latch at the same time!
Safety Latch
2. Touch the safety latch with your thumb and slide it fully to the right.
Clamp Lever
3. Place your index finger behind the clamping lever and pull the clamping lever
forward until it reaches the end stop on the left side.
Placing the camera
4. Gently slide the camera into the ring from either the front or back.
5. Bring the camera as close as possible to its center of gravity.
6. Lock the dovetail clamp mechanism.
7. Assemble all required accessories such as focus motors, transmit-
ters, connect all required cables such as camera power and video
cables.
