Installation and Operation 52

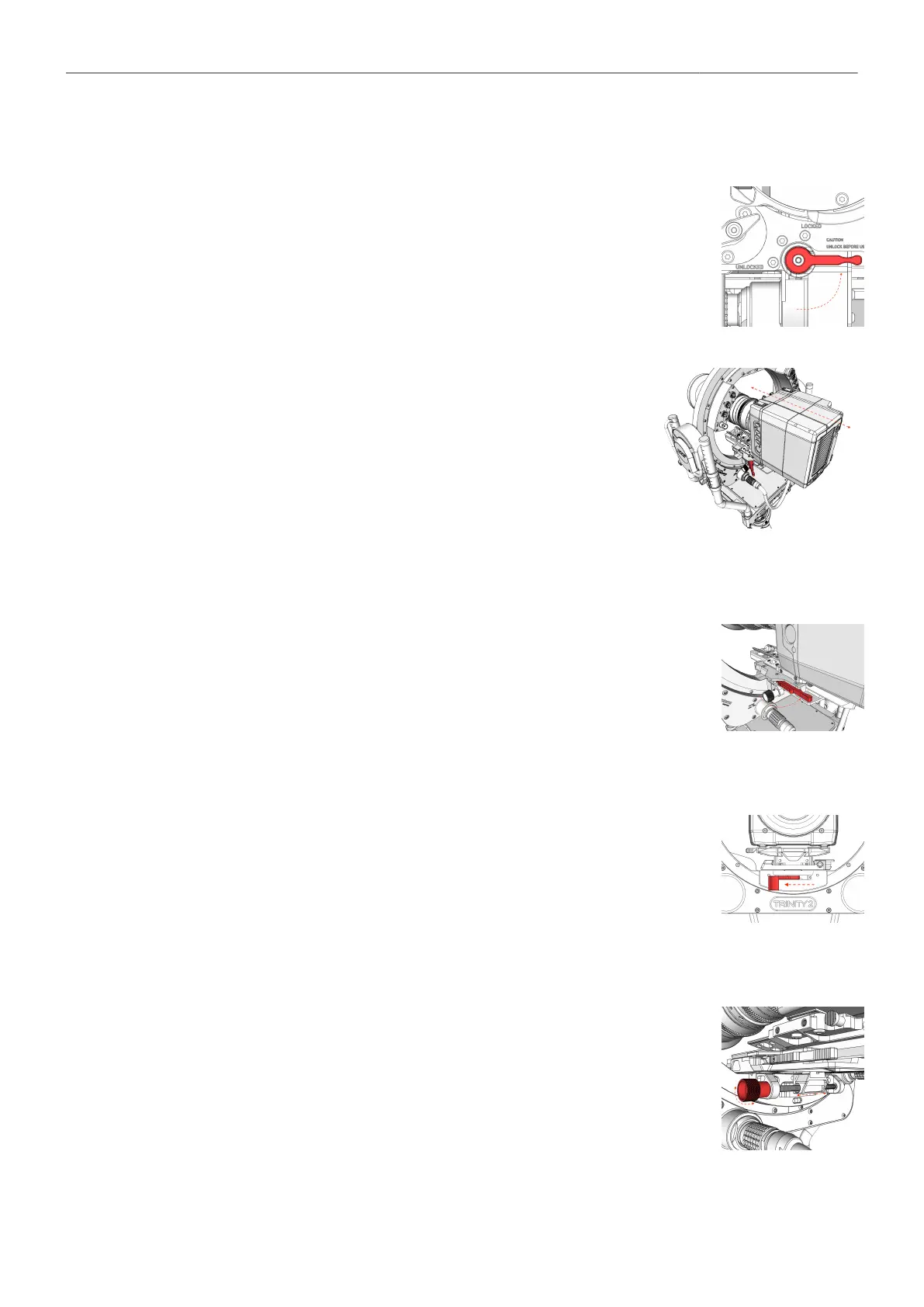

COG / Fore and aft adjustment
8. Open the Tilt-Lock.
9. Move the camera forth and back until it reaches its
center of gravity.
Locking Clamp Lever
10. After the camera has reached the desired position / COG, push the clamp
lever all the way to the right until the dovetail clamp mechanism is securely
locked.
Side to Side Lock
11. Open the side locking mechanism by pushing the clamp lever to the left.
Side to Side Fine Adjustment
12. Turning the fine adjustment to the right moves the camera
further to the right.
Turning left moves the camera further to the left.
