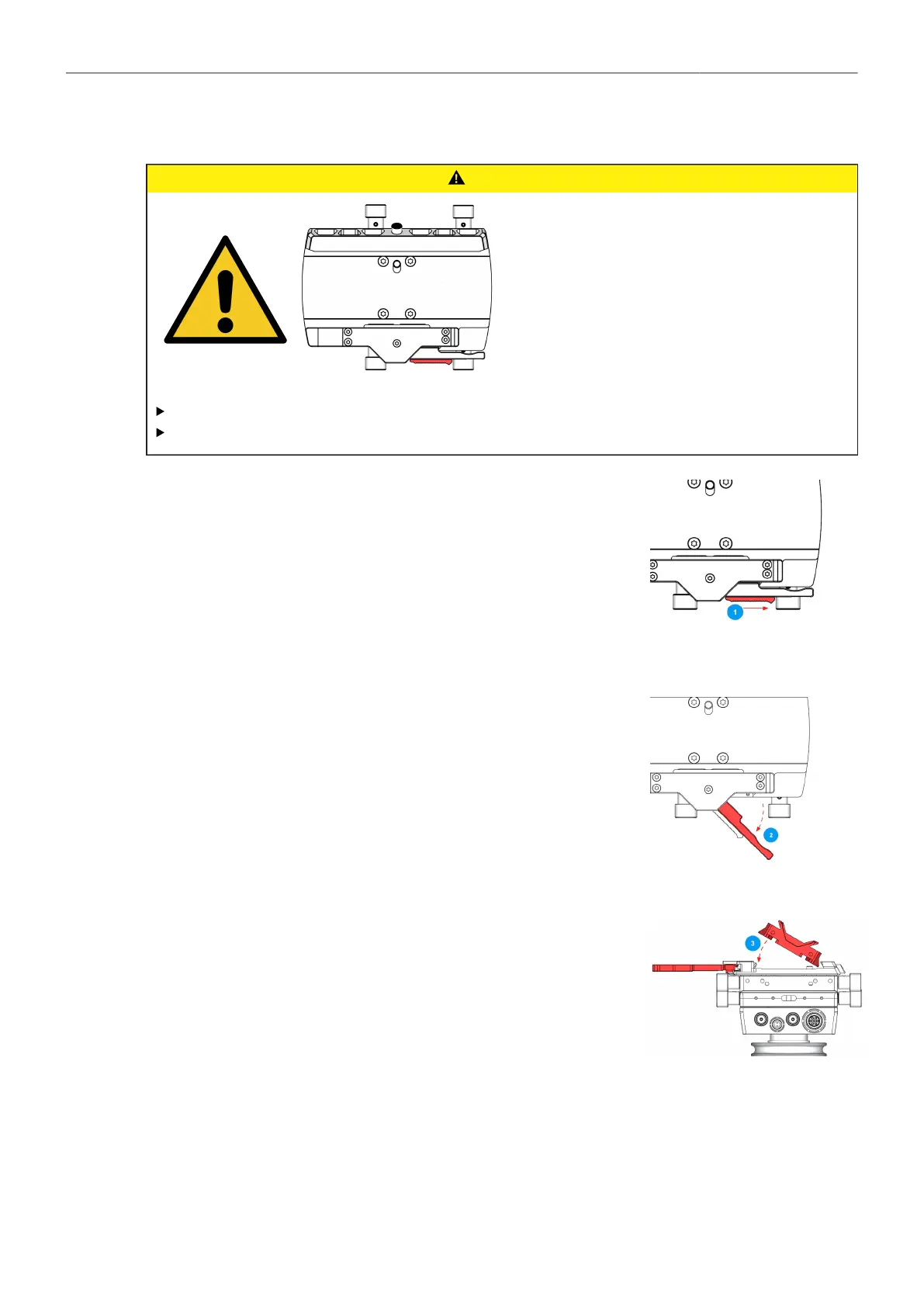

8.6.2 Installing SAM dovetail plates
CAUTION
Moving clamp lever without safety
lock
Risk of crushing fingers.
Do not pull on the clamp lever before the safety lock has been released!
Do not pull on the clamp lever and slide the safety latch at the same time!
1. Touch the safety latch with your thumb and slide it fully to the right.
2. Place your index finger behind the clamping lever and pull the
clamping lever forward until it reaches the end stop on the left
side.
3. Place the slightly inclined SAM dovetail plate and then lay it flat in
the top stage as shown here
