Installation and Operation 72

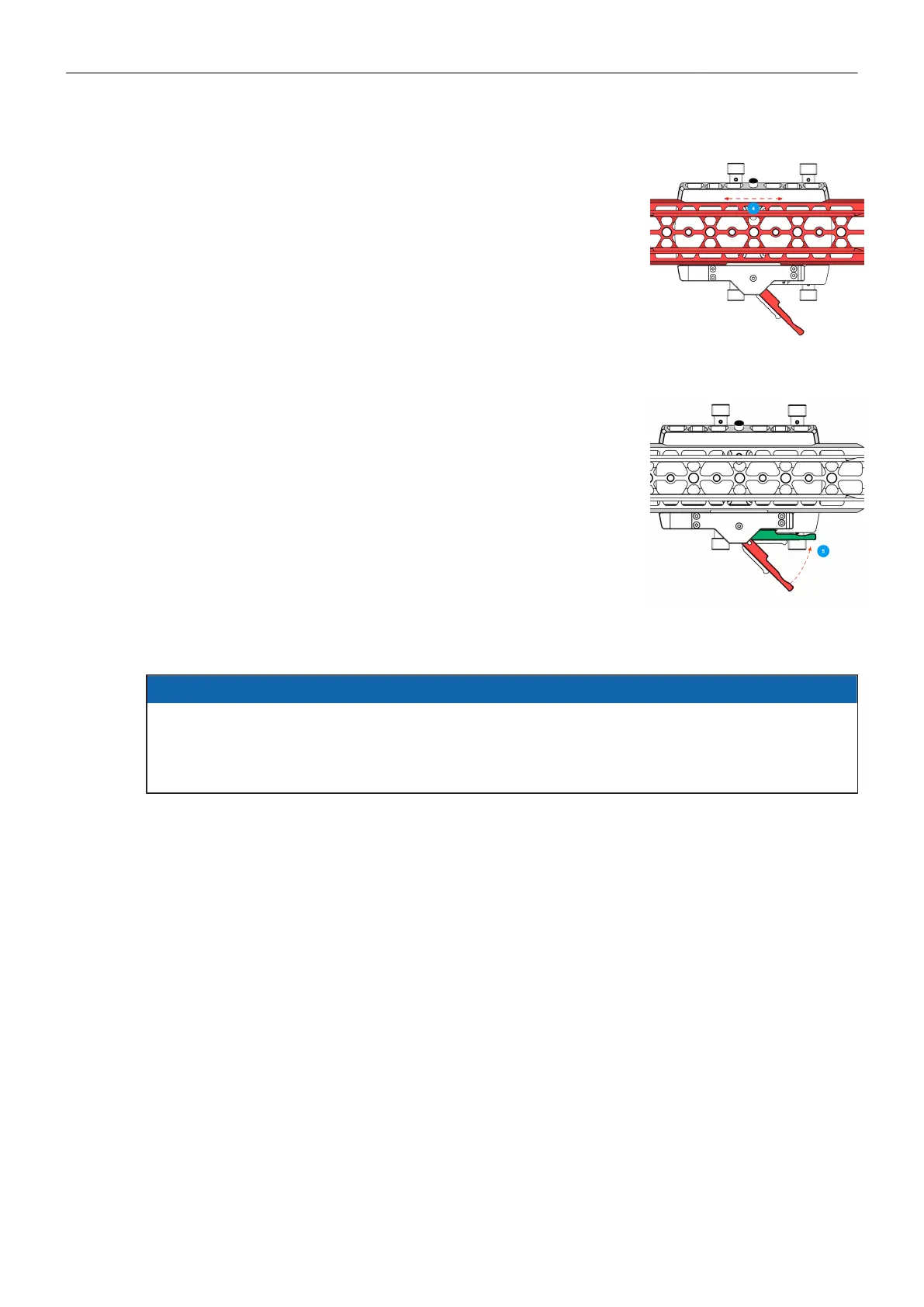

4. Move the clamping lever to the 45 ° position.
→ The dovetail plate is already completely secured and can no
longer be removed upwards. On the other hand, the dovetail plate
can still be moved fore and aft in this position and thus the cam-
era's COG can be roughly positioned.
5. Move the clamping lever all the way to the right.
6. Press the clamping lever into the end position, to
finally block the dovetail plate.
→ The SAM dovetail plait is mounted.
Camera Dovetail Plates
ADVICE
Using the SAM plates will speed up the camera setup and later the balancing process.
The special hight of every SAM plate will lift the dedicated camera right into the center of the
TRINITY 2 inner ring.
This way a perfect COG of the camera is guaranteed.
Available SAM plates and lens support brackets.
K2.0041201 Stabilizer Adapter Mount SAM-Zero
K2.0018851 Stabilizer Adapter Mount SAM-1 for ALEXA
K2.0014215 Stabilizer Adapter Mount SAM-2 for ALEXA
KK.0016116 Stabilizer Adapter Mount SAM-2 Set for ALEXA Mini
K2.0014630 Stabilizer Adapter Mount SAM-3 Set for AMIRA
K2.0024508 Stabilizer Adapter Mount SAM-6
K2.0039405 Stabilizer Adapter Mount SAM-6 450mm/18in
K2.0034512 CSS Broadcast Dovetail Plate (SAM plate standard width)
K2.0039803 Stabilizer Plate for CBP 355mm/14in
K2.0038536 Stabilizer Plate for CBP 450mm/18in
K2.0033662 Stabilizer Adapter Mount SAM-4
