Installation and Operation 73
KK.0038971 Long Stabilizer Mount 15mm Mini/Mini
KK.0038972 Long Stabilizer Mount 19mm Mini/Mini LF
K2.0039089 Compact Lens Support CLS-1
K2.0040036 Balance Utility Dovetail BUD-2
K2.0039861 Dovetail Utility Base DUB-1
K2.0038537 Stabilizer System Bracket SSB-2 19mm
K2.0038618 Stabilizer System Bracket SSB-2 15mm
8.6.3 Adjusting Clamping Force
If the clamping force of the clamping mechanism decreases:
Check that the clamping pads are clean. Remove dirt or grease with isopropanol.
Check whether the clamping pads still cover the entire area. If parts of the clamp pads are gone,
please contact ARRI Service.
ADVICE
Overtighten the leveling screw
This will cause the clamping force to become excessive and the Clamp Pads may be dam-
aged.
Turn the silver nut by a 1/8 or 1/4 turn to the right. NOT more!

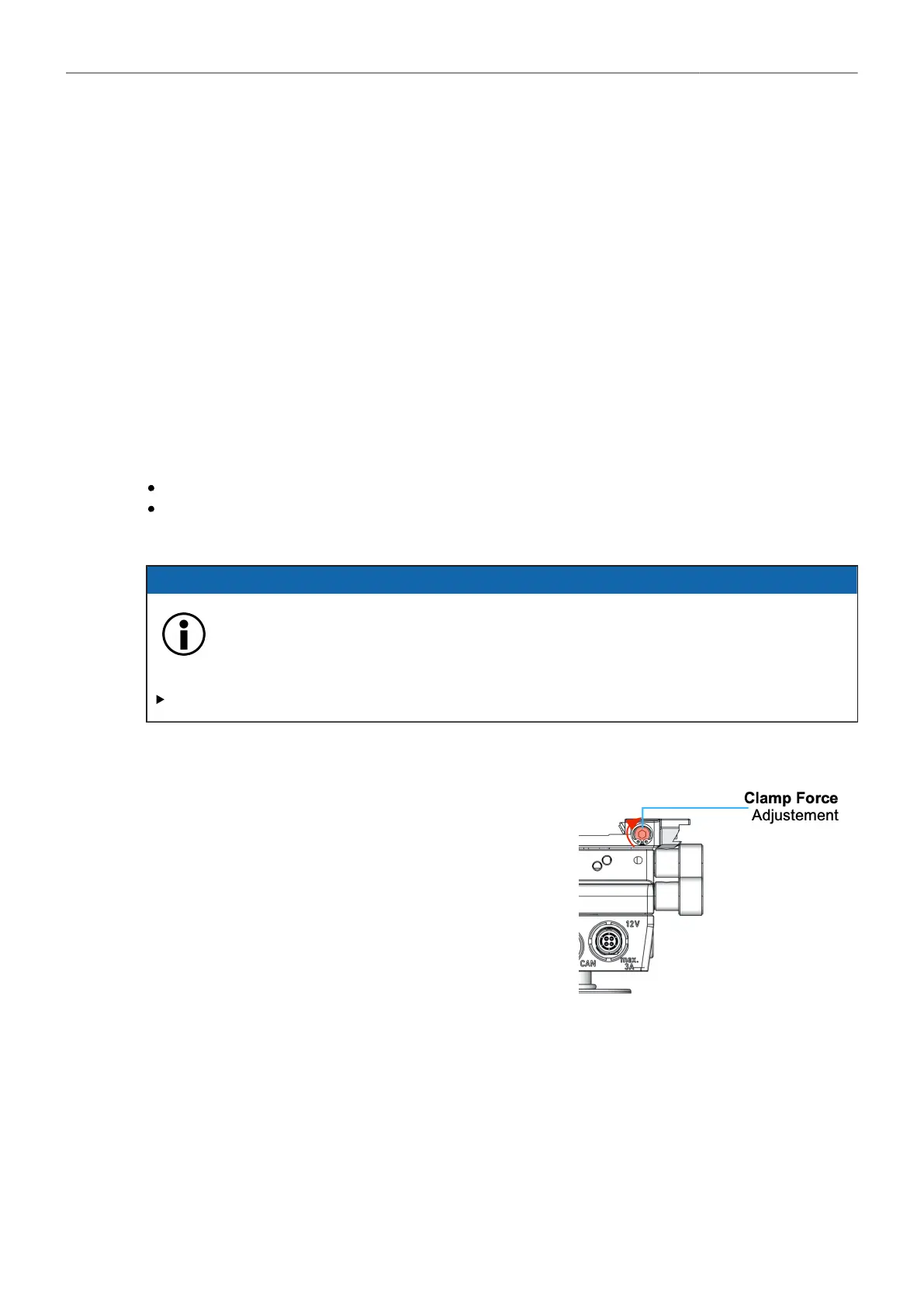

Clamp Force Adjustment
1. Open the Clamp Lever.
2. Turn the silver nut by a 1/8 or 1/4 turn to the right, to ad-
just the clamp force.
→ The clamping force is adjusted.
