ARRI TRINITY 2 - Connecting the Battery Mounts to the Battery Hanger Module

Installation and Operation 76

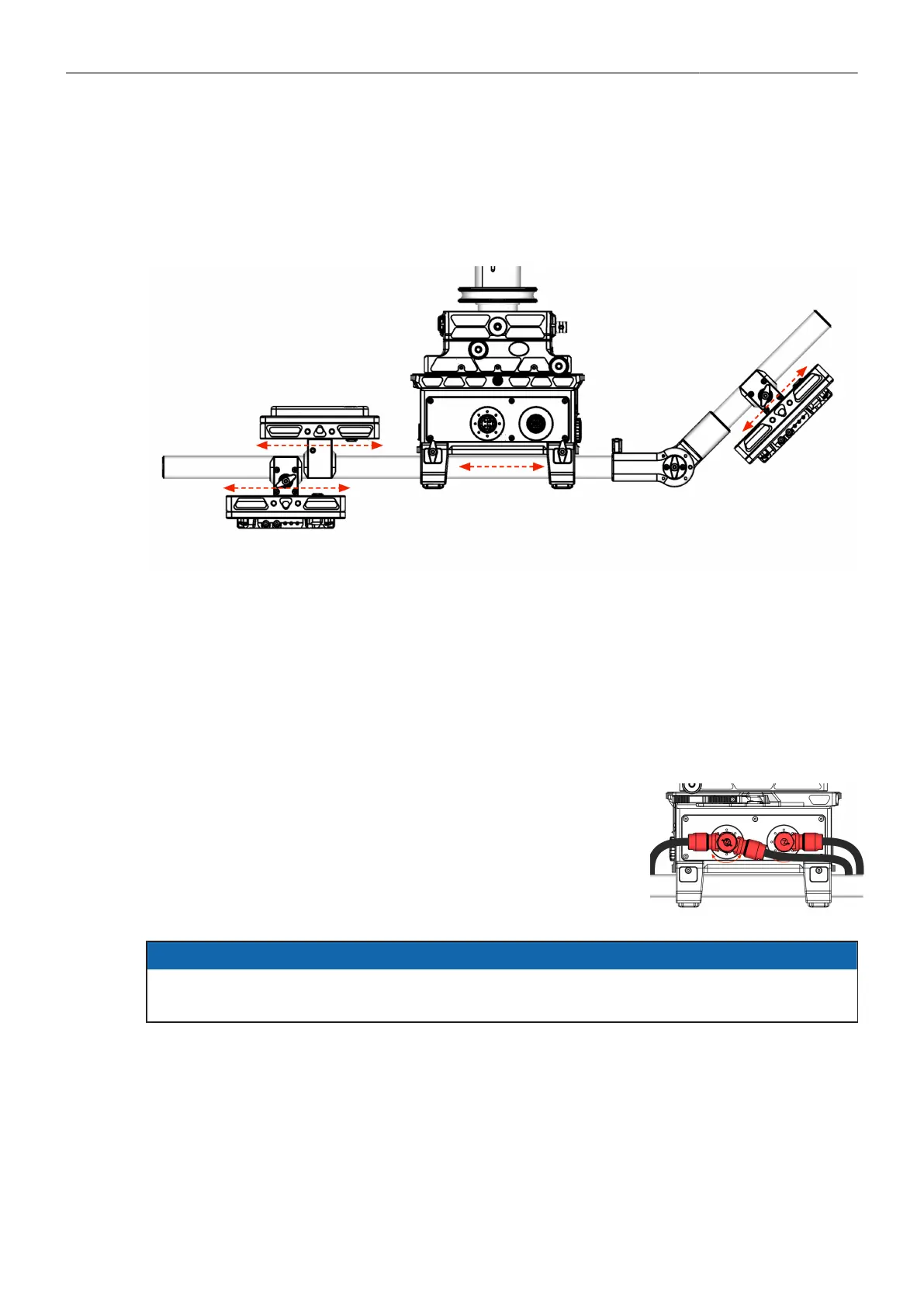

Free Positioning of the Battery Mounts
The combination of the BHM, which is equipped with 19 mm rods, and the freely positionable battery
system allows the size and weight distribution of the counterweight in the lower slide to be designed in
an unprecedented way.
8.7.5 Connecting the Battery Mounts to the Battery Hanger Module
The battery mounts BMS-1 & BMS-2 are equipped with a LEMO90° elbow connectors.
In order to give you more flexibility when placing the battery mounts, the three Battery In sockets can be
rotated by 90° and the elbow plug can be placed in the required position.
Right side
BAT IN 1 and BAT IN 3 can be brought into the desired
position by turning the sockets 90° around below.
ADVICE
Do not turn the Bat In sockets upside down.
Only turn the sockets around underneath!
