Installation and Operation 77
Left Side
Same procedure with the BAT IN 2.
ADVICE
Do not turn the POWER OUT Socket!
This socket is fixed and cannot be rotated.

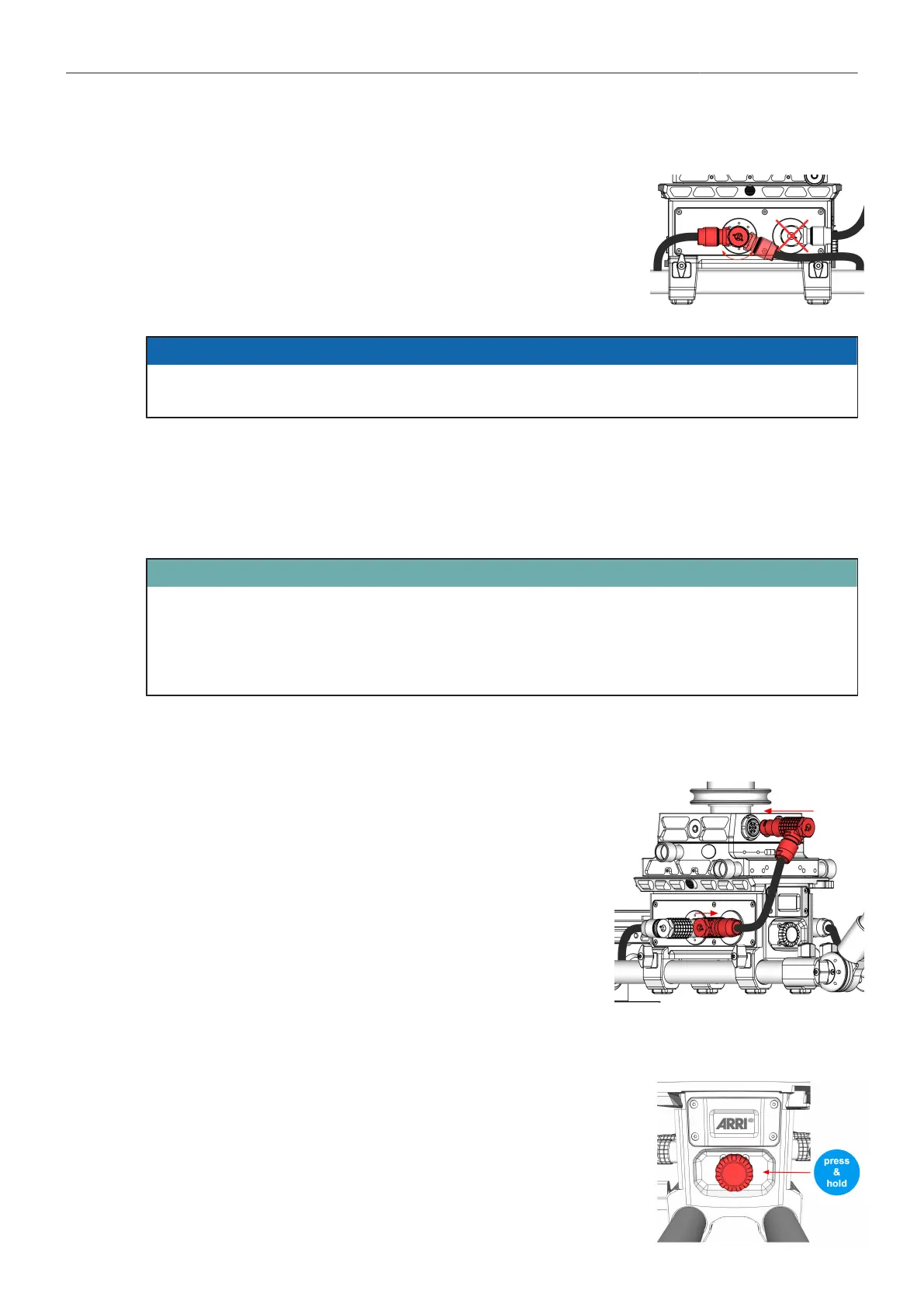

8.7.6 Connecting the Battery Hanger Module to the Top / Bottom Stage
The POWER OUT socket of the Battery Hanger provides high capacity 12V and 24V power,
plus digital battery communication to the artemis and TRINITY system as soon the BHM-2
is connected to the Top Stage (TST) or Bottom Stage (BST).
ATTENTION
Hot Plug
Check that the BHM is switched OFF before connecting it to the TST / BST.
Connecting an operating BHM to the system, may produce an unwanted electrical surge!
Connect the Power Cable, BHM-2 to TST (K2.0037771)
to the POWER OUT socket of the
Battery Hanger Module and the
POWER IN socket of the Top / Bottom Stage.
8.7.7 Power ON / OFF
To turn the BHM-2 / the entire system ON and OFF, press and hold
down the Jog-Wheel until the ARRI logo appears on the display.
