ARRI TRINITY 2 - Mounting Small HD 503 Monitor

Installation and Operation 66
8.4.4 Mounting Small HD 503 Monitor

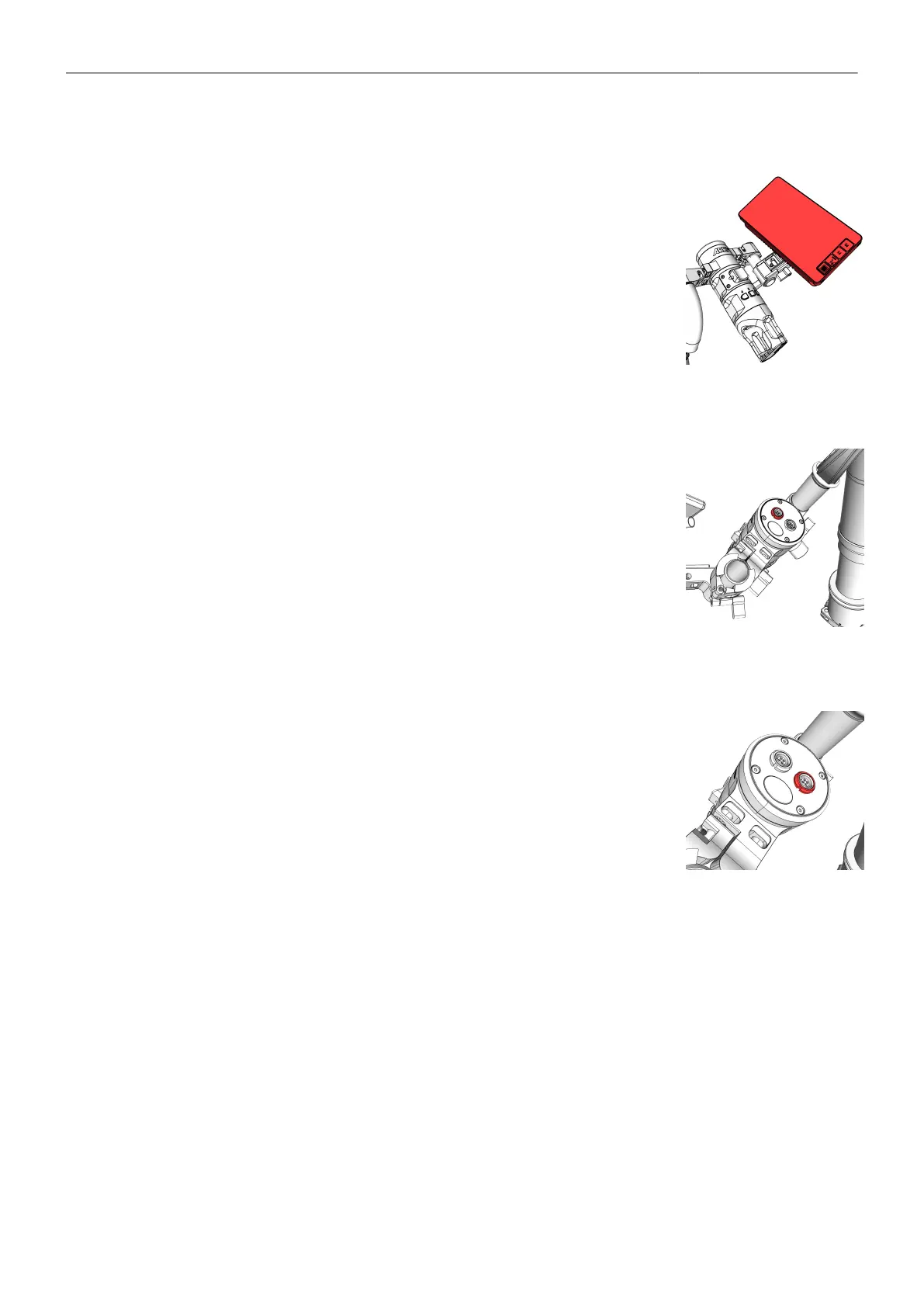

Monitor Position
1. Place the monitor.
2. Bring it in the desired angle.
3. Tighten the screw at the back.
Monitor Power
4. Connect the MTG Monitor Pwr, Lemo 0B, 2pin (K2.0038998) with the
SmallHD monitor and with the upper LBUS Socket at the Master Grip
TRINITY.
Joystick Cable
5. Connect the TRINITY 2 Joystick Cable 75cm/29.5in (K2.0043861) with
the lower LBUS Socket at the Master Grip TRINITY and with the LBUS
Socket at the TRINITY 2 head.
