Installation and Operation 80
Turning the jog wheel takes you to this page.

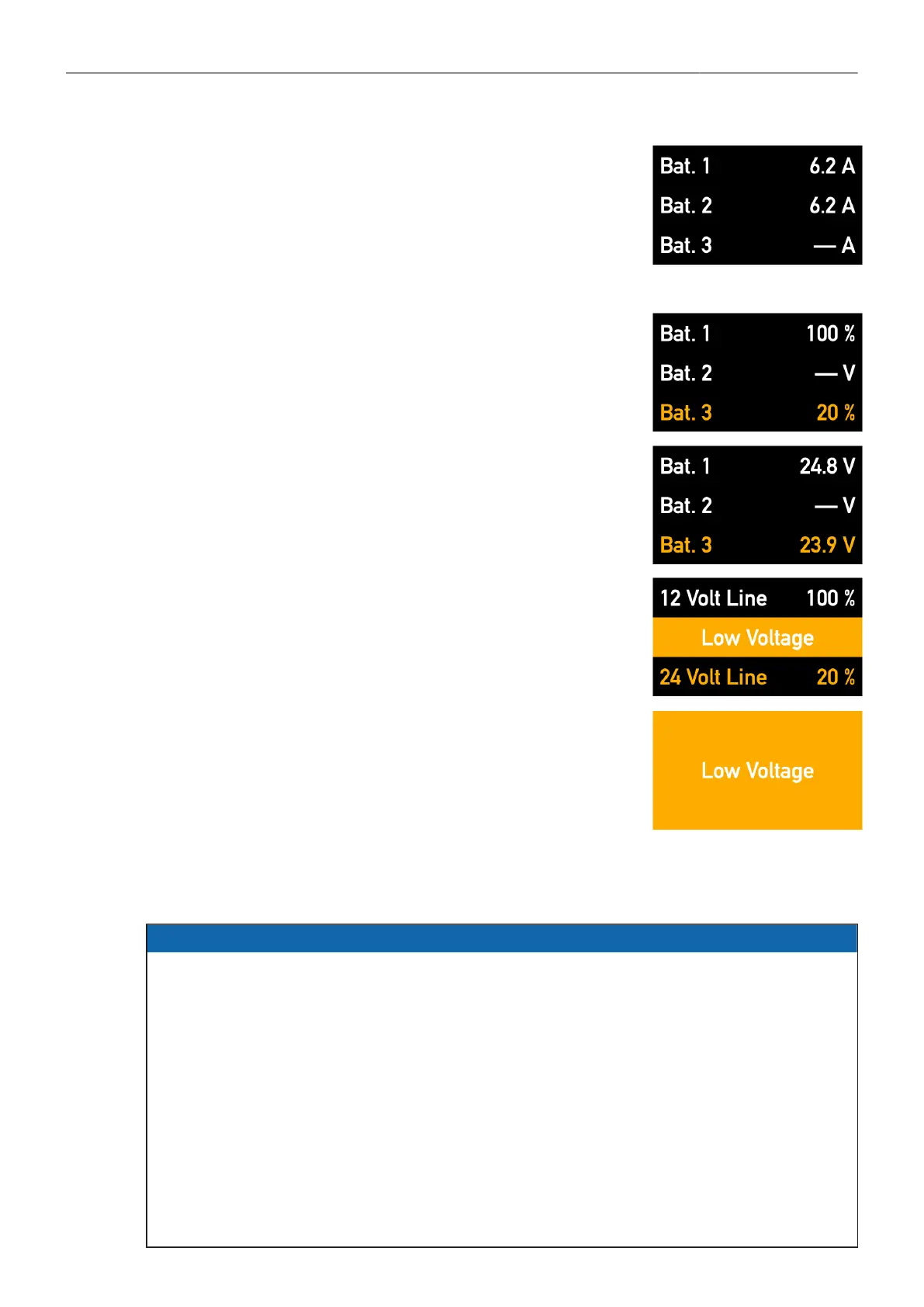

The current consumption in amp of the
individual batteries can be read out here.
All types of warnings are displayed in orange color.
ADVICE
Using 24V batteries
Shutdown when the output voltage is less than 23.0 volts.
Single battery warning when the voltage is less than 23.9 volts.
Single battery warning when percent reading is less than 20%.
24V Line warning when the output voltage is less than 23.9 volts.
Low voltage warning when less than 10% of all batteries.
Low Voltage warning when all 24V voltages are less than 23.9 volts.
Overvoltage warning if more than 35 volts are measured with 24 volt batteries.
