Getting Started
CONFIGURATION MANUAL
Ascom d83 DECT Handset
2 Getting Started
The handset can be configured by inserting it into a DP1 desktop programmer or a CR3 Advanced Charging
Rack. The charger is connected via USB or ethernet to the WinPDM/Device Manager. For IP-DECT systems,
the handset can be configured over-the-air.
This chapter describes how to configure handsets in three different system setups:
• with WinPDM
• with Device Manager via chargers
• with Device Manager over-the air
2.1 WinPDM
WinPDM is run on a PC. The handset is configured as follows:
1. Connect a DP1 desktop charger or a CR3 rack charger via USB to the computer running WinPDM.
2. Start WinPDM.
3. Place the handset in this charger connected to WinPDM. A handset that is turned off starts up automati-
cally and the battery charging symbol is displayed.
For instructions on how to use WinPDM, refer to the Installation and Operation Manual, Portable Device
Manager (WinPDM), Windows Version, TD 92325EN.

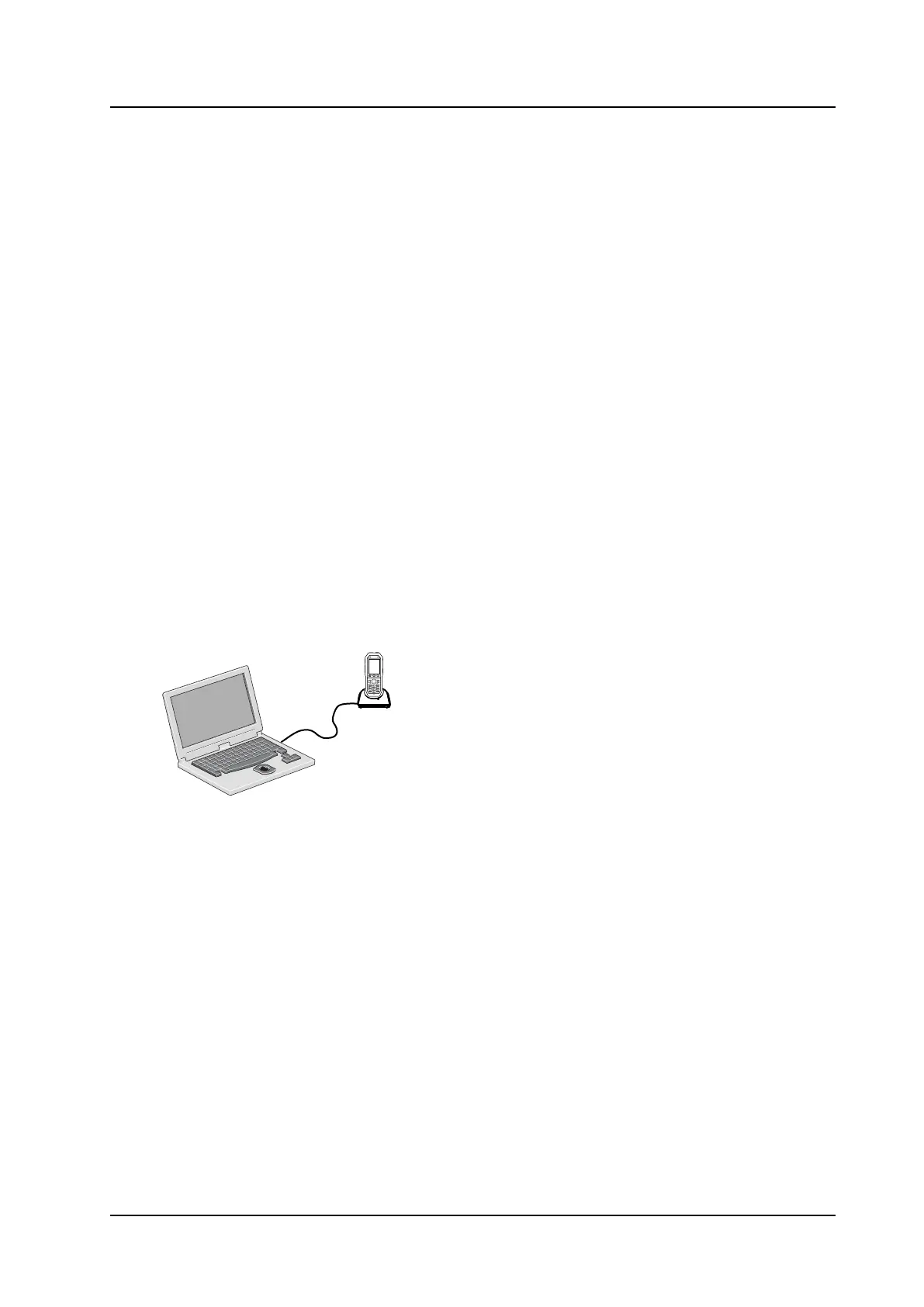

Figure 1. Configuration of handsets via WinPDM
WinPDM
DEF
MNO
WXYZ
ABC
JKL
TUV
PQRS
GHI
2.2 Device Manager
For instructions on how to use the Device Manager, refer to the applicable User Manual.
2.2.1 Via Chargers
1. Connect a CR3 rack charger via the Ethernet port to the network.
2. The charger is by default configured to connect to the network using DHCP. If DHCP is not used in the
network, connect each charger via USB to WinPDM and configure a static IP address.
3. Open the Device Manager.
4. Place the handset in a charger that is connected to the Device Manager. The handset can either be
turned off or turned on when placing it in the charger. A handset that is turned off starts up automati-
cally and the battery charging symbol is displayed.
4
TD 93426EN / 28 January 2022 / Ver. C
