HPRAVR

HPRAVR is an optional accessory for PRESTO and FORTE

programmers for programming AVR microcontrollers in

applications with the ISP10PIN standard connector on the

device's side and with the ICSPCAB8 cable on the

programmer's side. The ISP10PIN connector is typically

used on boards with microcontrollers of the AVR type

such as STK500, for example.

11.1

Usage

Connect the HPRAVR adapter to the application's

connector. Make sure that pin 1 of the HPRAVR adapter is

connected to pin 1 of the ISP10PIN connector in the

application (Pin1 is marked with a red dot at HPRAVR

while it may be marked in different ways on the

connected application – see information in the

corresponding manual).

Now interconnect the adapter and FORTE with an ICSP

cable. Pin2 in the cable is used as the key. The following

picture illustrates a typical interconnection of the PRESTO

programmer with an application through the HPRAVR

adapter:

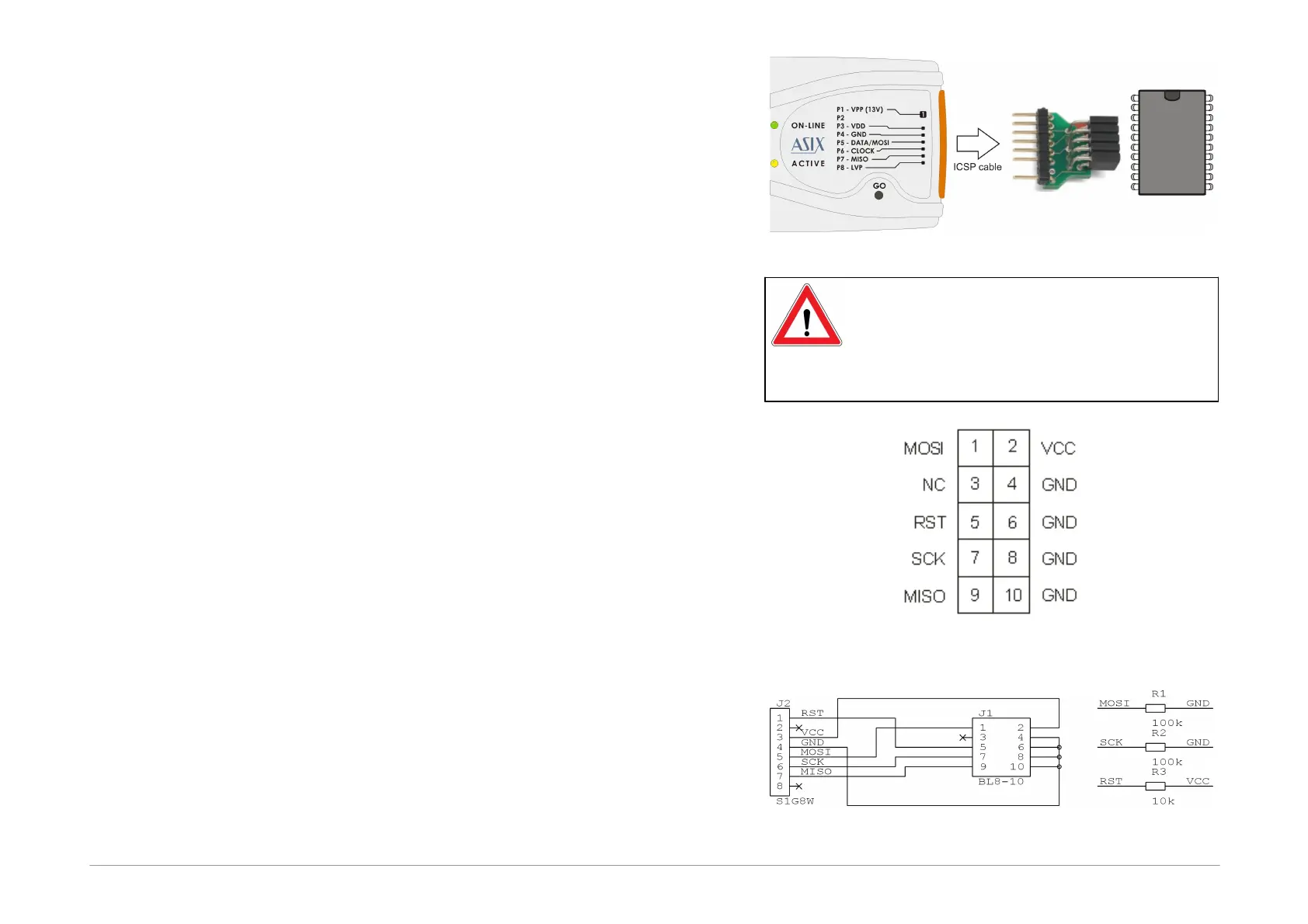

Fig.44: Use of HPRAVR

Important Warning

Pin No.1 of the HPRAVR adapter is marked

with red color. Please double check the

position of the pin No.1 in the application as

the application could be damaged if

incorrectly connected.

Fig.45: ISP10PIN, top

view

Fig.46: HPRAVR adapter diagram
