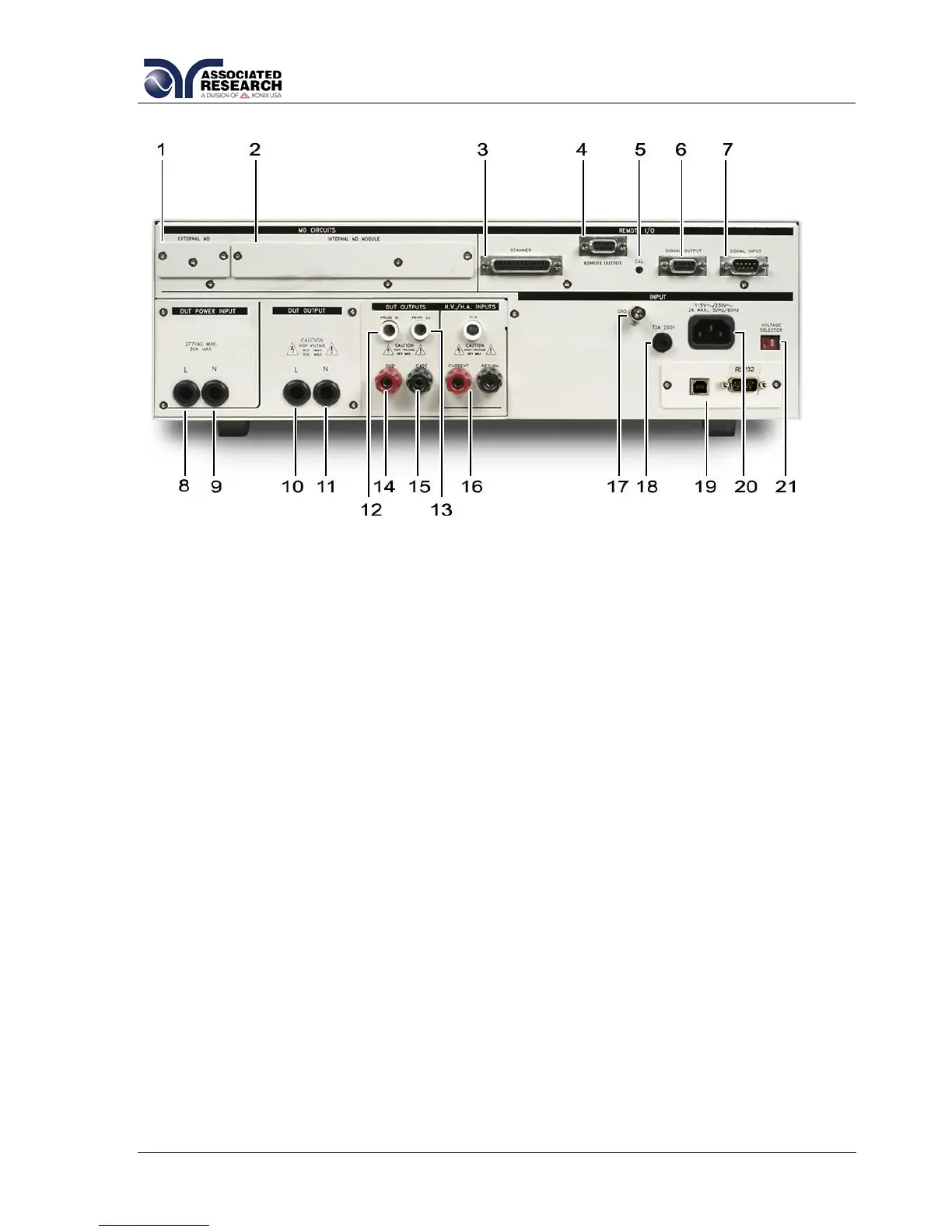

7. REMOTE SIGNAL INPUT: 9-Pin D-type subminiature male connector for
remote control of TEST, RESET, and REMOTE INTERLOCK DISABLE
functions, as well as MEMORY SELECTION (See section 6. Connection of
Remote I/O for more detailed information).
8. DUT POWER INPUT LINE: Provides DUT input power (line connection). Only
a single phase unbalanced power source may be used.
9. DUT POWER INPUT NEUTRAL: Provides DUT input neutral power (neutral
connection). Only a single phase unbalanced power source may be used.
10. DUT POWER OUTPUT: Provides line power (line connection) to the DUT
during Line Leakage and Functional Run testing.
11. DUT POWER OUTPUT: Provides line power (neutral connection) to the DUT
during Line Leakage and Functional Run testing.
12. PROBE HI: Connector used to attach the Probe-HI test lead to the DUT.
When used with an appropriate test lead, this terminal connects one side of the
MD (measuring device) to the DUT during Enclosure or Applied Part Line
Leakage tests. This terminal will be enabled during a Line Leakage test
whenever Probe-HI has been selected.
