9.2.5. Calibration of Run Test Power

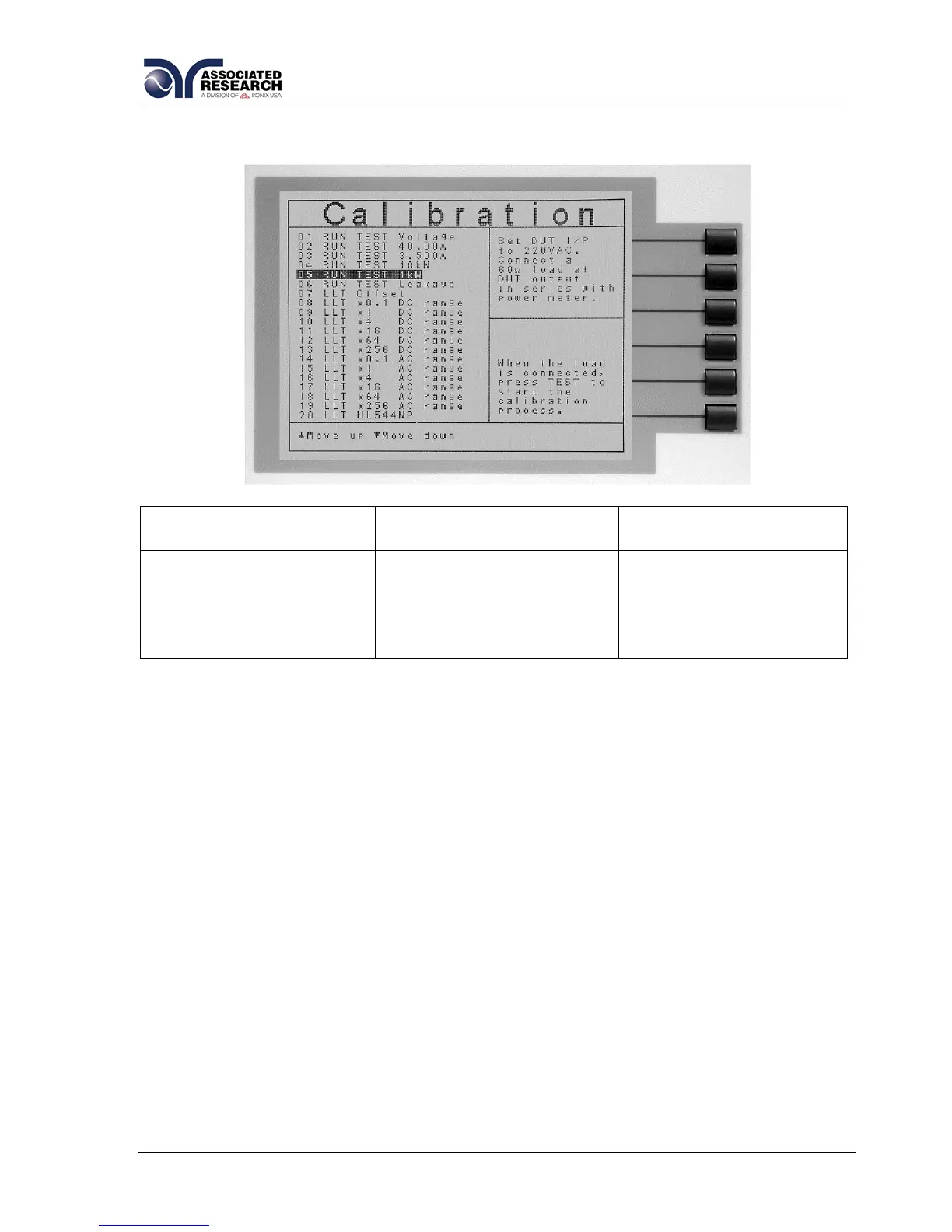

Upper Right Screen
Load/Meter
Lower Right Screen
Prompt
Lower Right Screen
Prompt (Cal. Active)
Set DUT I/P voltage to
220VAC. Connect a 60Ω
load. Connect power
meter in series with the
DUT.
When the load is
connected, press TEST to
start the calibration
process.
Enter Standard Power
Reading.
Press the TEST button to activate the calibration. After the calibration is activated, the
lower right screen will change to the text indicated in the table above (Cal. Active).
Read the measurement from your standard and enter it using the numeric keypad.
You may now store the new calibration number by pressing the ENTER key or escape
by pressing the EXIT key or the RESET button.
