5.5. Displayed Messages
Directly above the Metering screens is the Test Status Display. This portion of the
display is active during the test, allowing you to view the type of test being performed
and status of the test step. At the end of a test the Test Status Display will either
inform you that the test has passed or give a direct indication of the kind of failure that
occurred during the test.
5.5.1. Test Status Messages
The following is a complete listing of the messages that appear in the Test Status
Display and an explanation for each.

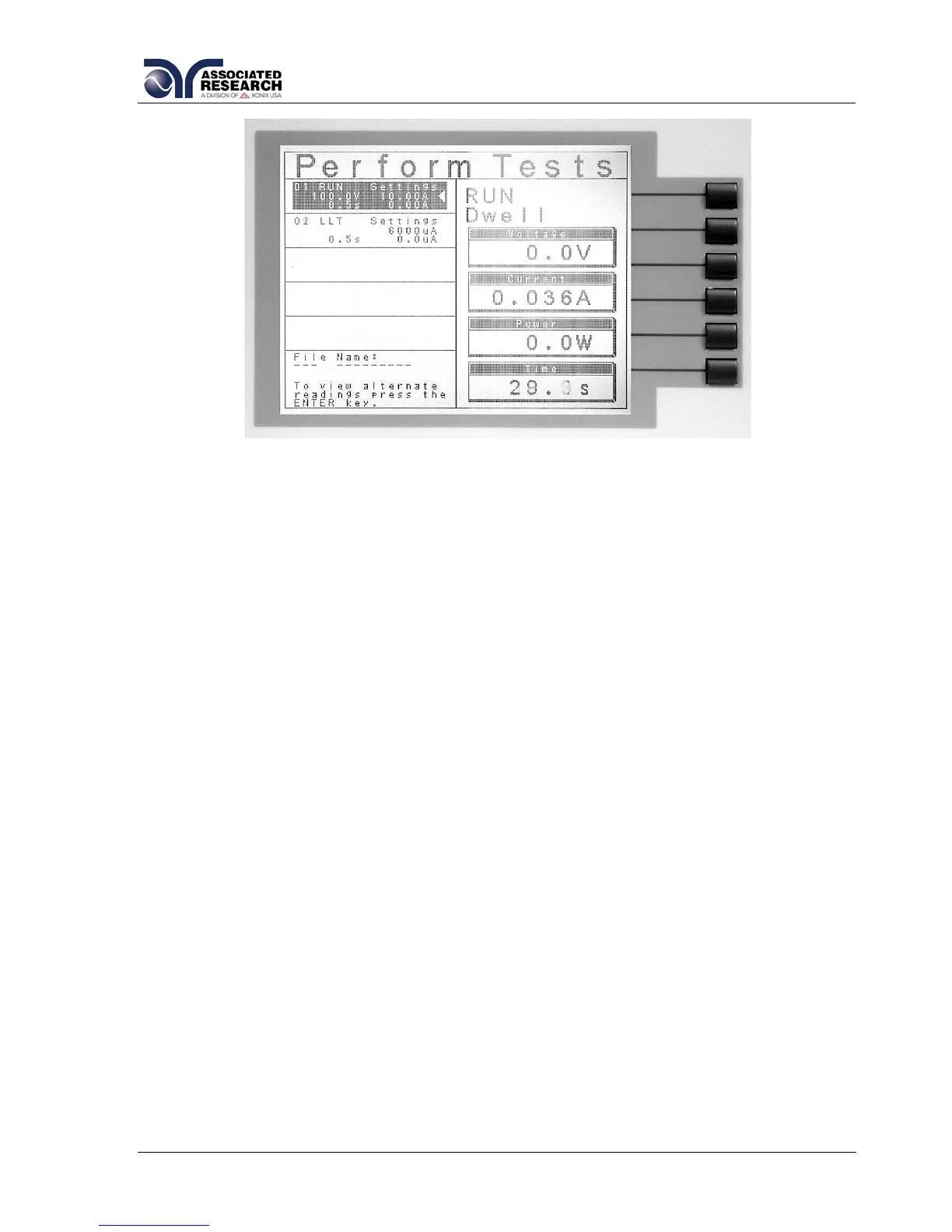

Dwell
This message appears on the display while a test is in process, the values update in
real time.
Delay
This message appears on the display while a test is in process, the values update in
real time.
Pass
This message appears on the display when the test process is complete and the DUT
passed the test.
5.5.2. Error Messages
The following is a completing listing of the failure messages that may occur during
testing and explanation for each.
Volt-HI
This message appears on the display if the DUT/IP voltage exceeds the Volt-HI Trip
setting.
