4.2.4. Hardware
From the Setup System screen press the “Hardware” soft key. The Hardware Setting
screen will now be displayed. From the Hardware Setting screen, four different
parameters may be accessed: Alarm Volume, LCD Contrast, GPIB Address (this
parameter will only appear if a Option 01 GPIB has been installed), and PLC Remote.

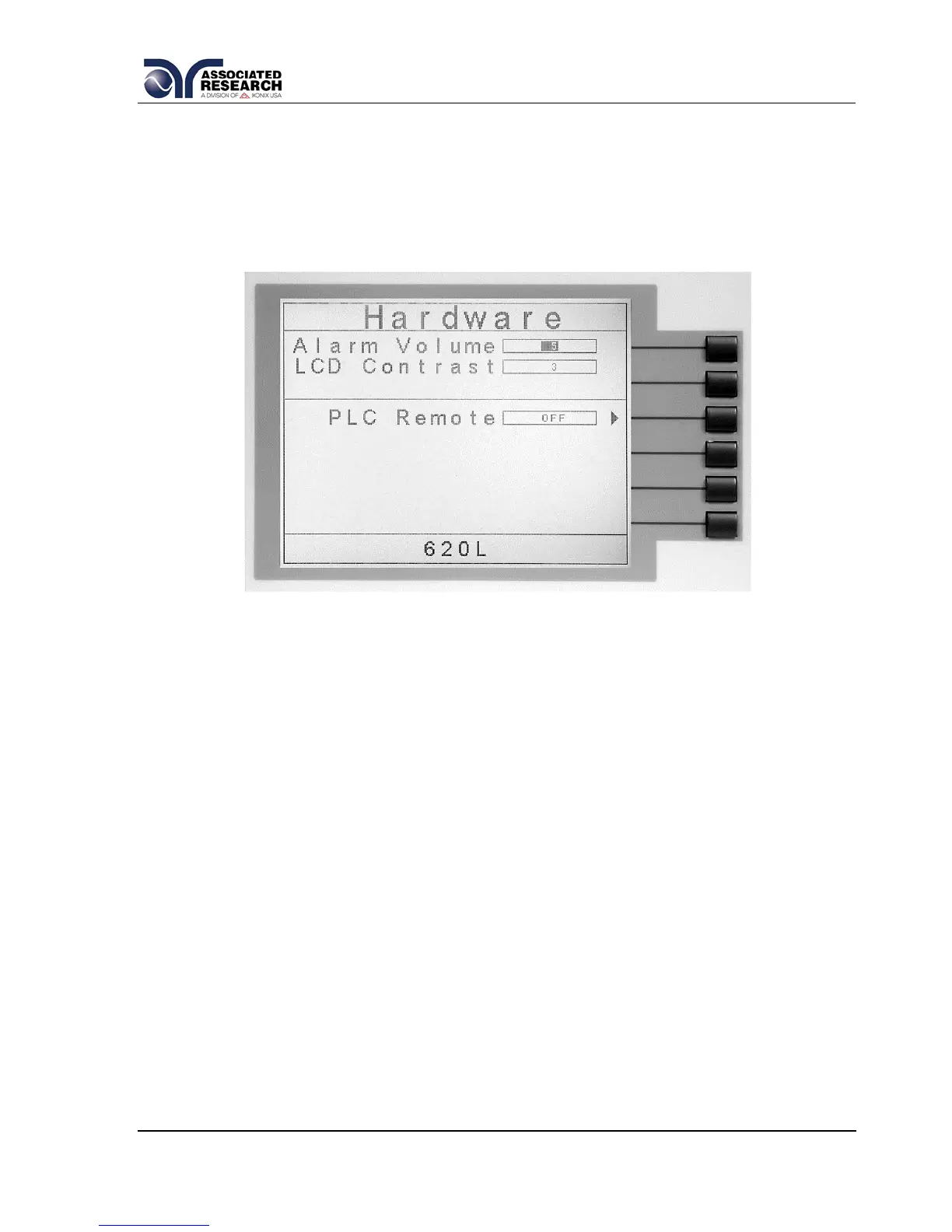

The Hardware Setting screen will appear as follows:
Alarm Volume
From the Hardware Setting screen highlight the Alarm Volume parameter by using the
up or down arrow keys.
Use the numeric keypad to set the instrument’s alarm volume. The numbers
correspond to the different volume settings 0 through 9, 0 meaning the volume is OFF,
and 9 being the loudest setting. After the number is entered a momentary alarm chirp
will occur to indicate the volume of the new setting.
LCD Contrast
From the Hardware Setting screen highlight the LCD Contrast parameter by using the
up or down arrow keys.
Using the up and down arrow keys and the numeric keypad set the contrast of the
display. The numbers correspond to different contrast settings are 0 through 9, 0
meaning the lightest color of displayed characters and 9 meaning the darkest color of
displayed characters. After the number is entered the display will automatically adjust
to the new display setting.
GPIB Address
From the Hardware Setting screen highlight the GPIB Address parameter by using the
up or down arrow keys. Use the numeric keypad to select the GPIB Address number
between 0 and 30. Finish by pressing the ENTER key.
