Associated Research 620L User Manual

104

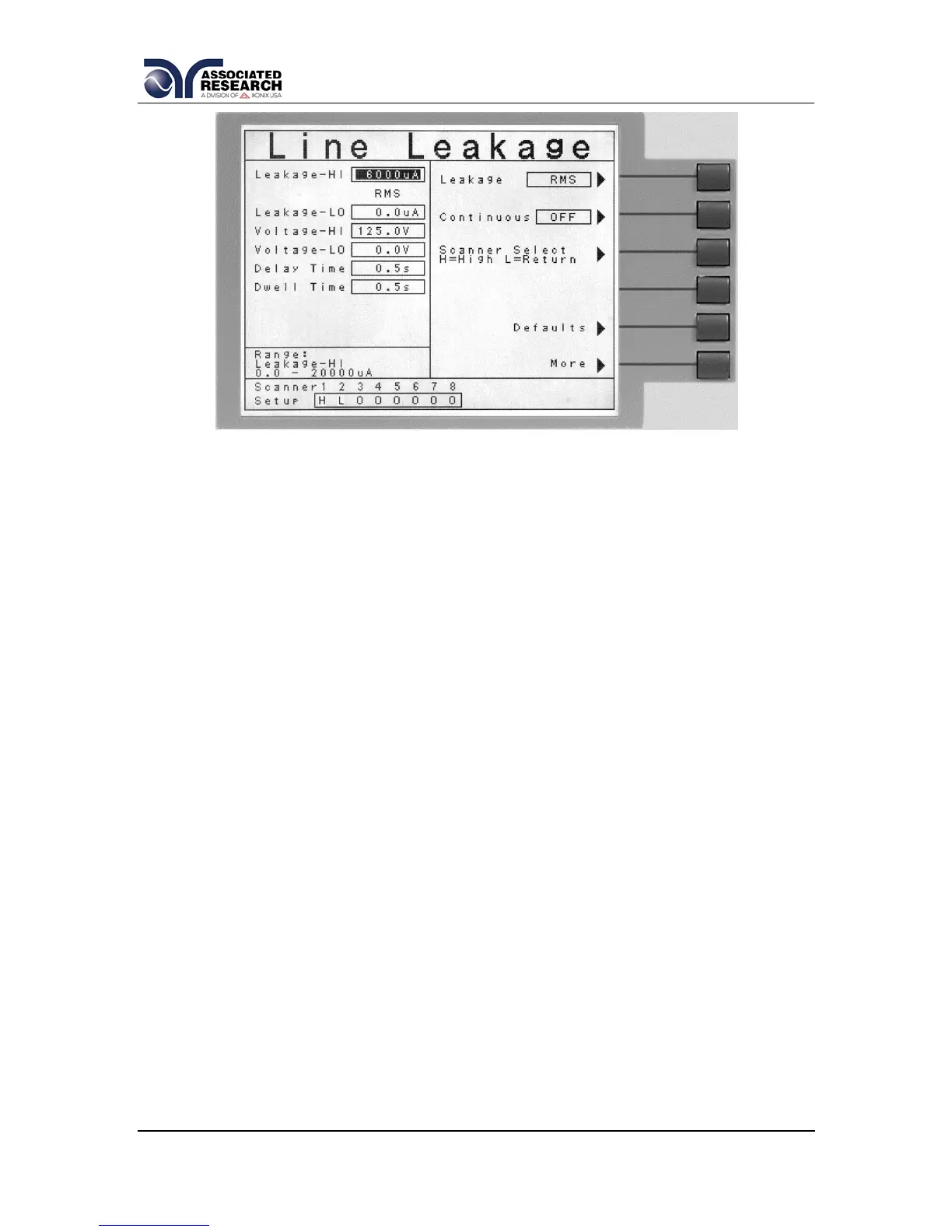

The operator may set the Scanner on a test-by-test basis. For example, for test
step 01, the operator may set each of the Scanner channels in a particular
configuration. For test step 02, the operator may wish to change the configuration
of each Scanner channel.
05 LineChek to APT 7 Memory
This option provides a dedicated signal output connector that is added to the rear
panel of the 620L. The new signal output connector can be used to control a
compatible device such as an AC 1000 power supply. The output is a 3-bit
digital control signal that is menu selectable at the Run Test or LLT parameter
screen.
This option is provided with a cable which is designed to interconnect the 620L 9-
pin Remote Output to the AC 1000 Remote I/O input. This cable, p/n 38774, is a
standard 9-pin female to 9-pin male. See the following figure for connecting the
620L to the AC1000:
