Warnings
Installation
Use

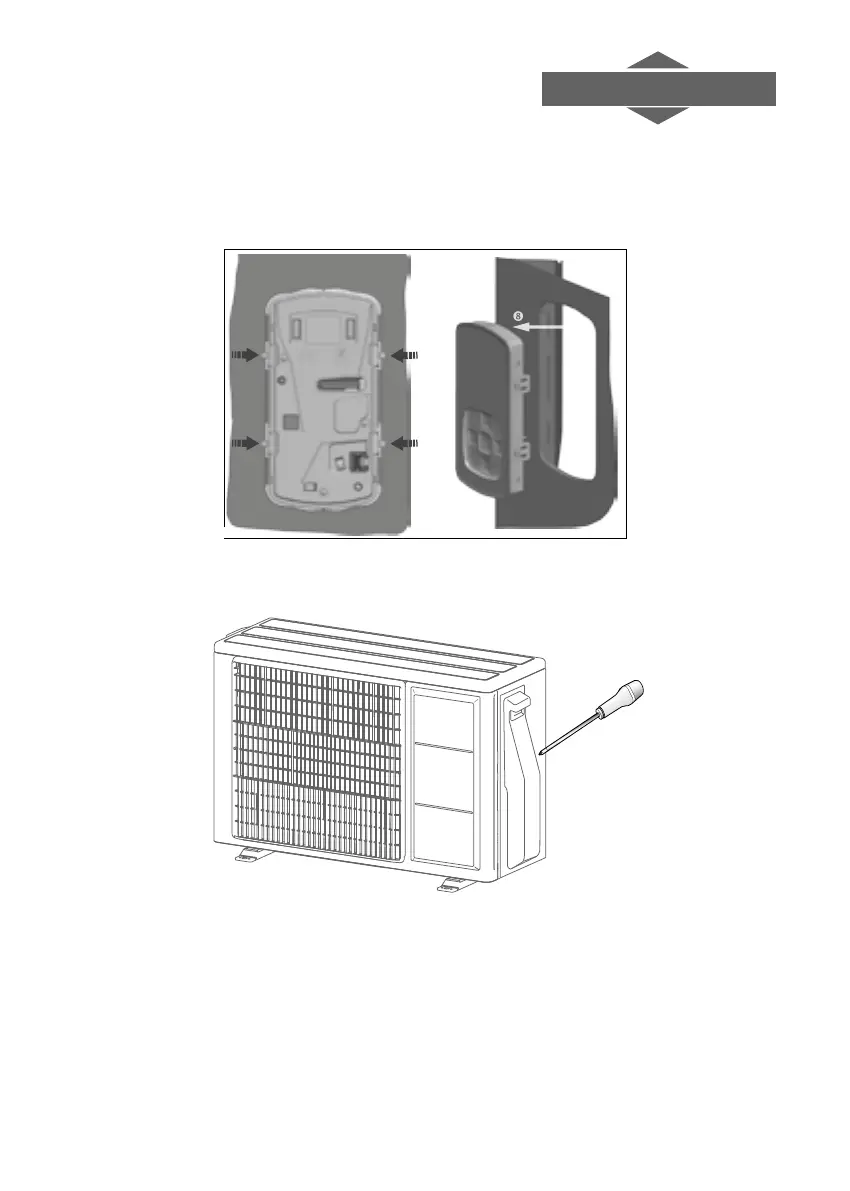

12.2.2. Accessing the outside unit components





Locking screw (2)
Valves and terminal block access hatch
Top cover
Front cover
To remove the control unit
Hold the front cover and remove the upper part of the control by pressing both clips on
the back
Now press both of the lower clips
Remove the control





