Atlantic CALYPSO - Flushing With The Vacuum Pump

289289
EN
Warnings Installation

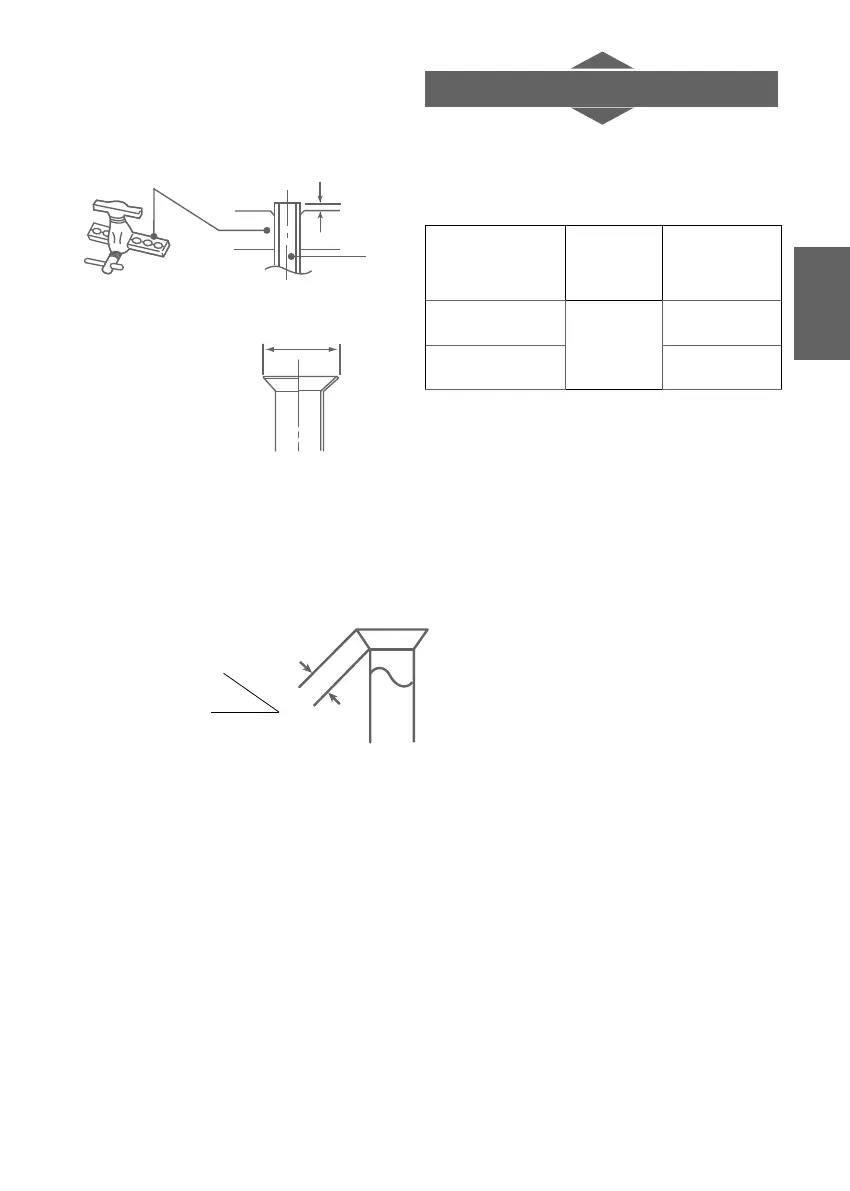

Flaring tool
A
Line
B
L
45°
Diameter of the
refrigerant
lines
Dimension
"A"
Dimension "B"
00.4
1/4" (6.35 mm)
0 to 0.5
mm
9.1 mm
3/8" (9.52 mm) 13.2 mm
• Then check the expanded area. There must not be any scratches or potential cracks.
Also check whether side "L" has been correctly flared, with no cracks or scratches.
Flaring tool
A
Line
B
L
45°
6.1. Flushing with the vacuum pump
• Remove the protective cap from the 3-way service valve (Schrader). Connect the
blue hose of your manifold gauge set to it. Connect the yellow hose with a valve to a
vacuum pump with vacuum meter and open the blue tap on your manifold.
