3. Installation
3.1. Selecting the installation site
Outside unit pre-charged
with 0.7 kg of R32
Flush the refrigerant line and the
water heater with a vacuum pump
before putting the device into service
IMPORTANT: The refrigerant
line between the outside unit
and the water heater must not
exceed 20 m in length or 15 m
in elevation.
Connection lenght (min.: 5 m)
15 m maximum
elevation
L
Highest point
in the circuit
Lowest point
in the circuit

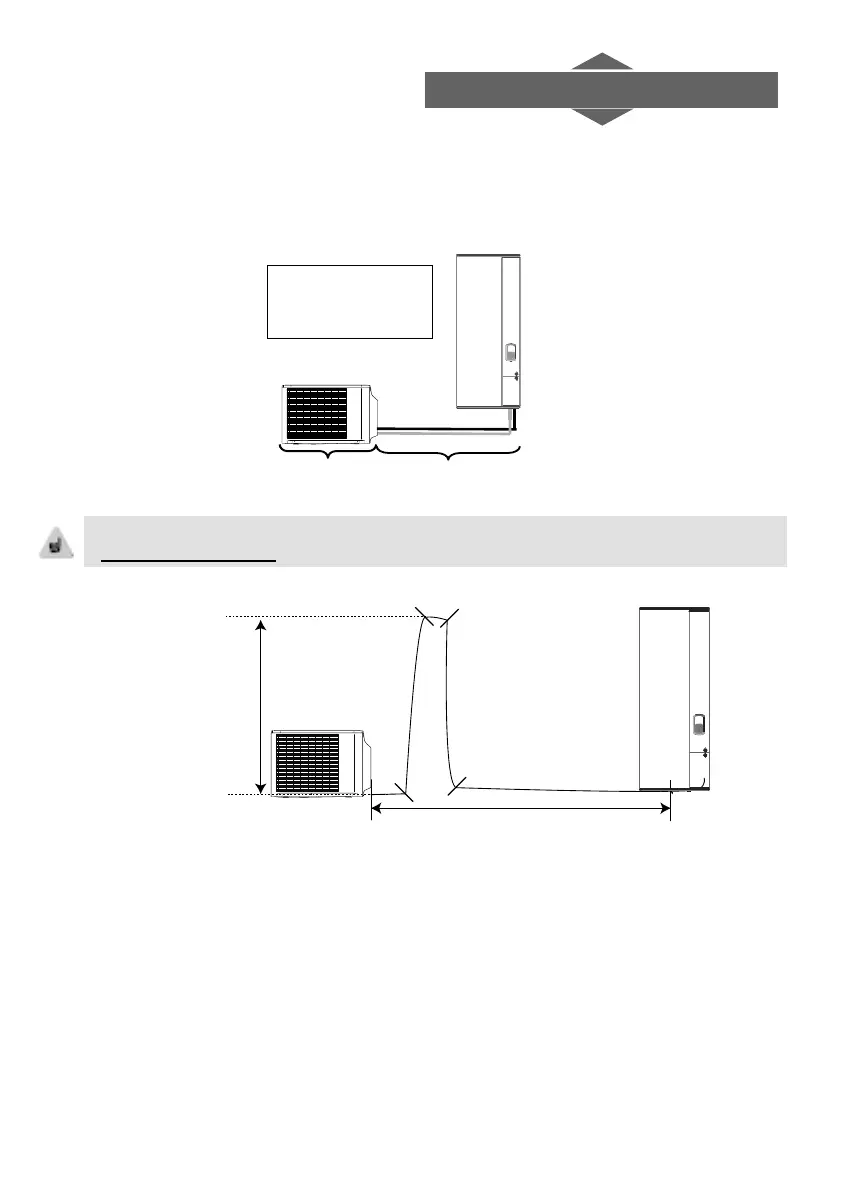

Installation example
L
L
L
L5
The refrigerant line between the outside unit and the water heater must be
between 5 and 20 m in length and must not exceed 15 m in elevation.
