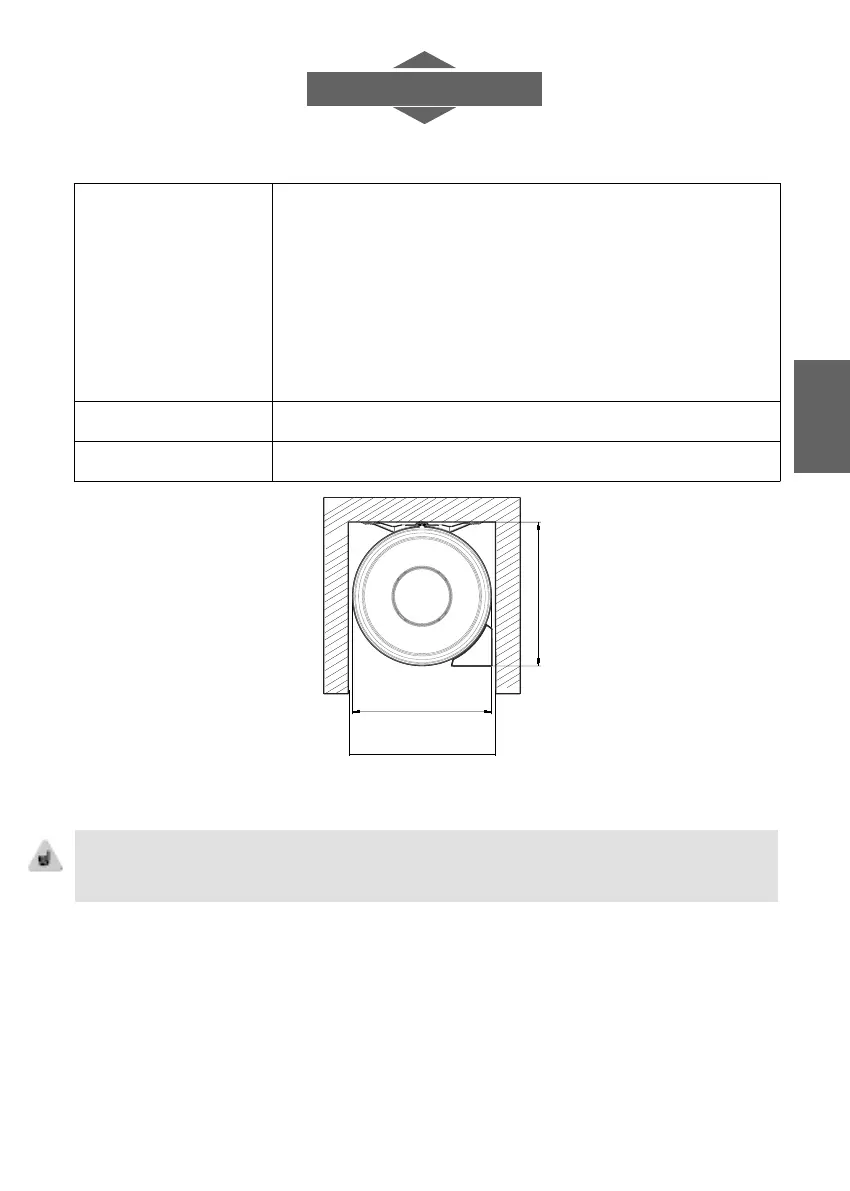

5.4.2. Location of the water heater, 150 l and 200 l versions
Type of wall bearing
the suspended water
heater:
(the mounting template
has been printed on the
package)
• Rather thin walls (of type drywall): Threaded pins of Ø
10mm, penetrating the wall and connected by proles or
counter plates.
• Thick solid walls (concrete, stone, brickwork): Anchor bolts
of Ø 10mm or drill holes for dowels of type MOLY Ø 10mm.
• If the wall the device is mounted onto is not capable of
bearing the respective weight, the device can be put on a
rack. It is absolutely necessary to a󰀩x the upper bracket.
Please use the rack recommended by the manufacture.
Height underneath the
ceiling:
• > 1.26 m for the 150 l and 1.57 m for the 200 l
Recommended installa-
tion site:
• In heated rooms
5.5. Installing the water tank
586
567
600
recommended
A drain pan connected to the drain system must be installed under the water
heater, particularly when it is positioned above inhabited rooms.
