Atlantic CALYPSO - Vertical Wall-Mounted Water Heaters, 150 L And 200 L

8888
Warnings
Installation
Use

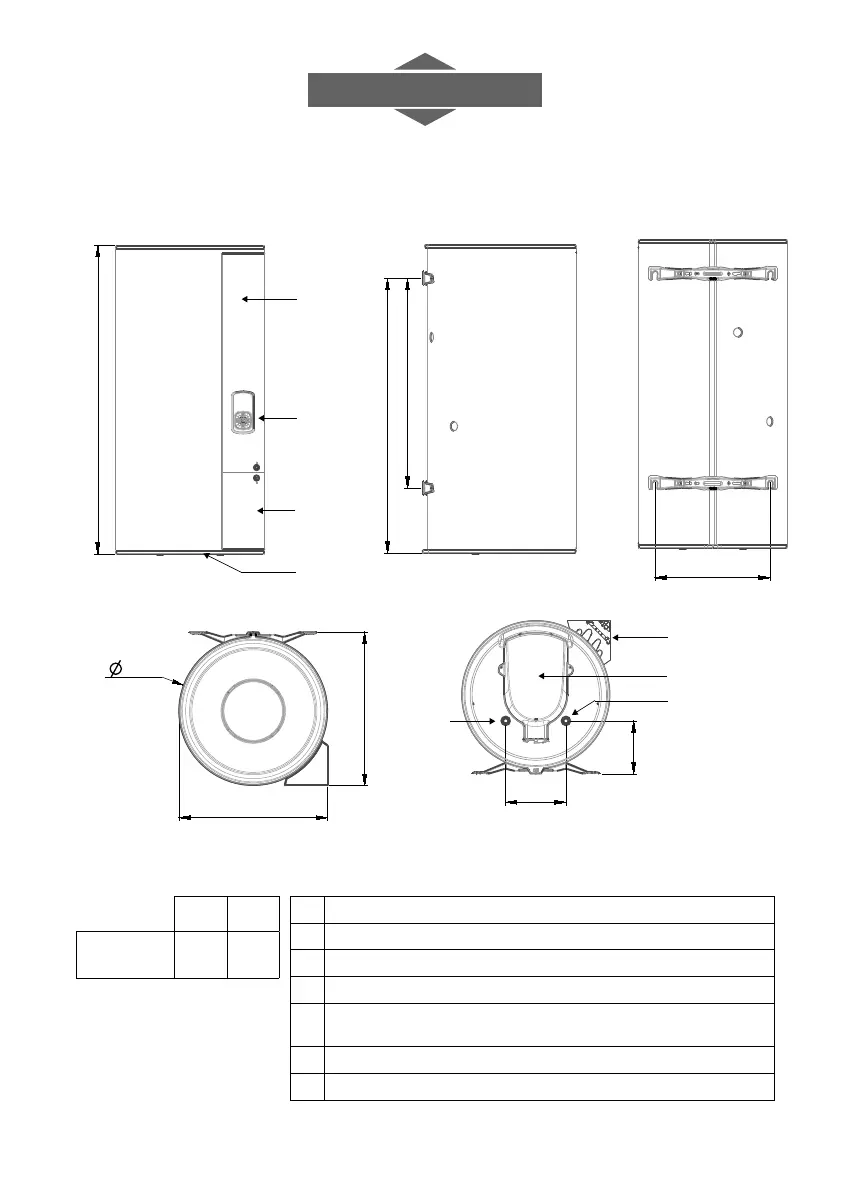

3.2. Vertical wall-mounted water heaters, 150 l and 200 l
A
800
1048
440
567
586
567
230
202









3/4" hot water branch connection

3/4" cold water branch connection

Electrical connection box

Control screen

Electric backup & mechanical safety device location;
position of the middle tank sensor

Position of middle tank sensor

Connection refrigerant lines (inlet: 3/8", outlet: 1/4")
150 l 200 l
Dimension
A
1177 1497
